1. Basic Make-up and Architectural Features of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Shift

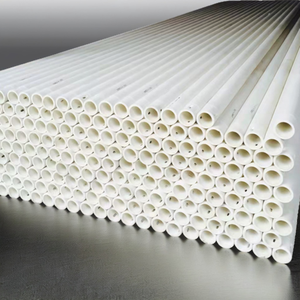

(Quartz Ceramics)
Quartz porcelains, likewise known as merged silica or fused quartz, are a course of high-performance inorganic products stemmed from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) type.
Unlike traditional ceramics that count on polycrystalline structures, quartz porcelains are identified by their complete lack of grain limits because of their lustrous, isotropic network of SiO four tetrahedra interconnected in a three-dimensional arbitrary network.
This amorphous structure is accomplished through high-temperature melting of all-natural quartz crystals or synthetic silica precursors, complied with by fast air conditioning to avoid condensation.
The resulting product contains typically over 99.9% SiO ₂, with trace impurities such as alkali steels (Na ⁺, K ⁺), aluminum, and iron maintained parts-per-million levels to maintain optical clearness, electrical resistivity, and thermal performance.
The lack of long-range order gets rid of anisotropic actions, making quartz ceramics dimensionally secure and mechanically consistent in all instructions– an essential advantage in accuracy applications.
1.2 Thermal Actions and Resistance to Thermal Shock
One of the most defining features of quartz porcelains is their exceptionally reduced coefficient of thermal expansion (CTE), typically around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.
This near-zero development emerges from the flexible Si– O– Si bond angles in the amorphous network, which can change under thermal stress and anxiety without breaking, permitting the product to stand up to rapid temperature adjustments that would certainly fracture standard porcelains or steels.
Quartz porcelains can sustain thermal shocks going beyond 1000 ° C, such as direct immersion in water after warming to heated temperatures, without splitting or spalling.
This building makes them important in settings involving repeated heating and cooling down cycles, such as semiconductor processing heating systems, aerospace components, and high-intensity lights systems.
Furthermore, quartz ceramics maintain architectural integrity approximately temperatures of about 1100 ° C in continuous solution, with temporary exposure resistance coming close to 1600 ° C in inert ambiences.
( Quartz Ceramics)
Beyond thermal shock resistance, they exhibit high softening temperature levels (~ 1600 ° C )and excellent resistance to devitrification– though prolonged exposure over 1200 ° C can launch surface area condensation into cristobalite, which may compromise mechanical toughness due to volume modifications during phase shifts.
2. Optical, Electric, and Chemical Properties of Fused Silica Solution
2.1 Broadband Openness and Photonic Applications
Quartz ceramics are renowned for their remarkable optical transmission across a broad spectral variety, extending from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This transparency is allowed by the lack of impurities and the homogeneity of the amorphous network, which decreases light spreading and absorption.
High-purity artificial integrated silica, produced via fire hydrolysis of silicon chlorides, accomplishes also greater UV transmission and is utilized in crucial applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The product’s high laser damage threshold– standing up to malfunction under intense pulsed laser irradiation– makes it optimal for high-energy laser systems used in blend research and commercial machining.
Additionally, its reduced autofluorescence and radiation resistance guarantee integrity in clinical instrumentation, consisting of spectrometers, UV treating systems, and nuclear surveillance devices.
2.2 Dielectric Performance and Chemical Inertness
From an electric standpoint, quartz ceramics are outstanding insulators with volume resistivity surpassing 10 ¹⁸ Ω · cm at area temperature and a dielectric constant of about 3.8 at 1 MHz.
Their low dielectric loss tangent (tan δ < 0.0001) makes sure marginal power dissipation in high-frequency and high-voltage applications, making them appropriate for microwave windows, radar domes, and protecting substratums in electronic assemblies.
These residential properties stay stable over a broad temperature variety, unlike several polymers or conventional porcelains that weaken electrically under thermal anxiety.
Chemically, quartz ceramics exhibit amazing inertness to many acids, consisting of hydrochloric, nitric, and sulfuric acids, as a result of the stability of the Si– O bond.
Nevertheless, they are susceptible to assault by hydrofluoric acid (HF) and solid antacids such as warm salt hydroxide, which damage the Si– O– Si network.
This selective reactivity is made use of in microfabrication processes where regulated etching of integrated silica is required.
In hostile industrial settings– such as chemical processing, semiconductor damp benches, and high-purity fluid handling– quartz porcelains function as liners, view glasses, and reactor parts where contamination need to be minimized.
3. Production Processes and Geometric Design of Quartz Porcelain Elements
3.1 Melting and Forming Methods
The manufacturing of quartz porcelains entails a number of specialized melting techniques, each customized to certain purity and application requirements.
Electric arc melting makes use of high-purity quartz sand thawed in a water-cooled copper crucible under vacuum or inert gas, producing huge boules or tubes with outstanding thermal and mechanical residential properties.
Fire fusion, or combustion synthesis, entails burning silicon tetrachloride (SiCl four) in a hydrogen-oxygen flame, transferring fine silica particles that sinter right into a transparent preform– this approach generates the highest optical high quality and is made use of for artificial fused silica.
Plasma melting provides an alternate course, giving ultra-high temperature levels and contamination-free processing for specific niche aerospace and defense applications.
When thawed, quartz ceramics can be formed via accuracy casting, centrifugal forming (for tubes), or CNC machining of pre-sintered spaces.
Because of their brittleness, machining calls for diamond tools and mindful control to stay clear of microcracking.
3.2 Precision Manufacture and Surface Area Finishing
Quartz ceramic elements are typically fabricated into complex geometries such as crucibles, tubes, rods, home windows, and personalized insulators for semiconductor, solar, and laser industries.
Dimensional accuracy is crucial, specifically in semiconductor manufacturing where quartz susceptors and bell containers need to keep precise positioning and thermal uniformity.
Surface completing plays an important role in performance; refined surfaces minimize light scattering in optical parts and lessen nucleation sites for devitrification in high-temperature applications.
Engraving with buffered HF solutions can generate regulated surface area structures or get rid of harmed layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz ceramics are cleaned up and baked to eliminate surface-adsorbed gases, making sure marginal outgassing and compatibility with delicate procedures like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Function in Semiconductor and Photovoltaic Production
Quartz ceramics are fundamental materials in the manufacture of integrated circuits and solar batteries, where they serve as heater tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their ability to stand up to heats in oxidizing, minimizing, or inert ambiences– combined with low metallic contamination– makes certain process purity and return.
Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz elements maintain dimensional security and withstand bending, preventing wafer damage and imbalance.
In photovoltaic or pv production, quartz crucibles are utilized to grow monocrystalline silicon ingots by means of the Czochralski process, where their purity straight influences the electric quality of the final solar cells.
4.2 Usage in Lighting, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sanitation systems, quartz ceramic envelopes include plasma arcs at temperatures exceeding 1000 ° C while sending UV and noticeable light effectively.
Their thermal shock resistance stops failure throughout fast lamp ignition and closure cycles.
In aerospace, quartz ceramics are made use of in radar home windows, sensor real estates, and thermal security systems because of their reduced dielectric constant, high strength-to-density proportion, and security under aerothermal loading.
In logical chemistry and life scientific researches, integrated silica capillaries are vital in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness avoids example adsorption and ensures precise separation.
Furthermore, quartz crystal microbalances (QCMs), which depend on the piezoelectric buildings of crystalline quartz (unique from fused silica), use quartz porcelains as protective real estates and protecting supports in real-time mass sensing applications.
In conclusion, quartz ceramics stand for a special crossway of extreme thermal strength, optical transparency, and chemical purity.
Their amorphous structure and high SiO ₂ web content allow efficiency in settings where conventional materials fall short, from the heart of semiconductor fabs to the edge of space.
As innovation advances towards greater temperatures, higher precision, and cleaner processes, quartz porcelains will continue to work as an essential enabler of development throughout science and sector.
