1. Chemical and Structural Basics of Boron Carbide
1.1 Crystallography and Stoichiometric Variability

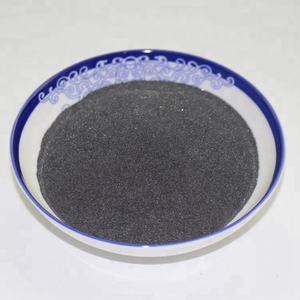

(Boron Carbide Podwer)
Boron carbide (B FOUR C) is a non-metallic ceramic substance renowned for its extraordinary firmness, thermal security, and neutron absorption capacity, placing it among the hardest well-known products– surpassed just by cubic boron nitride and diamond.
Its crystal structure is based upon a rhombohedral lattice made up of 12-atom icosahedra (mostly B ₁₂ or B ₁₁ C) interconnected by linear C-B-C or C-B-B chains, forming a three-dimensional covalent network that imparts amazing mechanical strength.
Unlike several ceramics with repaired stoichiometry, boron carbide shows a wide range of compositional versatility, normally varying from B FOUR C to B ₁₀. ₃ C, because of the alternative of carbon atoms within the icosahedra and architectural chains.
This irregularity influences key properties such as firmness, electrical conductivity, and thermal neutron capture cross-section, allowing for residential property tuning based upon synthesis problems and desired application.
The existence of innate problems and condition in the atomic plan likewise contributes to its special mechanical actions, including a sensation called “amorphization under stress” at high pressures, which can limit efficiency in severe impact situations.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is primarily generated with high-temperature carbothermal reduction of boron oxide (B ₂ O ₃) with carbon sources such as oil coke or graphite in electrical arc heaters at temperature levels between 1800 ° C and 2300 ° C.
The response proceeds as: B ₂ O SIX + 7C → 2B FOUR C + 6CO, yielding crude crystalline powder that needs subsequent milling and purification to attain penalty, submicron or nanoscale bits suitable for innovative applications.
Different approaches such as laser-assisted chemical vapor deposition (CVD), sol-gel processing, and mechanochemical synthesis deal paths to greater purity and controlled bit dimension circulation, though they are commonly limited by scalability and cost.
Powder attributes– including fragment size, form, heap state, and surface chemistry– are vital parameters that affect sinterability, packing thickness, and last part performance.
For instance, nanoscale boron carbide powders show boosted sintering kinetics as a result of high surface power, allowing densification at lower temperatures, yet are prone to oxidation and call for safety ambiences throughout handling and processing.
Surface functionalization and finishing with carbon or silicon-based layers are significantly employed to enhance dispersibility and prevent grain development throughout consolidation.
( Boron Carbide Podwer)
2. Mechanical Residences and Ballistic Efficiency Mechanisms
2.1 Hardness, Crack Sturdiness, and Wear Resistance
Boron carbide powder is the forerunner to among one of the most effective lightweight shield products offered, owing to its Vickers hardness of around 30– 35 Grade point average, which enables it to deteriorate and blunt incoming projectiles such as bullets and shrapnel.
When sintered into dense ceramic floor tiles or incorporated right into composite armor systems, boron carbide outmatches steel and alumina on a weight-for-weight basis, making it ideal for employees security, car armor, and aerospace protecting.
However, despite its high solidity, boron carbide has reasonably reduced fracture strength (2.5– 3.5 MPa · m ¹ / ²), making it susceptible to cracking under local influence or duplicated loading.
This brittleness is worsened at high pressure rates, where dynamic failure systems such as shear banding and stress-induced amorphization can bring about disastrous loss of architectural stability.
Ongoing research study concentrates on microstructural engineering– such as presenting secondary stages (e.g., silicon carbide or carbon nanotubes), creating functionally rated compounds, or designing ordered styles– to alleviate these constraints.
2.2 Ballistic Power Dissipation and Multi-Hit Capability
In personal and car shield systems, boron carbide ceramic tiles are normally backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that take in residual kinetic energy and include fragmentation.
Upon effect, the ceramic layer cracks in a regulated way, dissipating energy with systems consisting of fragment fragmentation, intergranular splitting, and stage transformation.
The fine grain structure derived from high-purity, nanoscale boron carbide powder boosts these energy absorption processes by raising the density of grain boundaries that hinder crack propagation.
Recent innovations in powder handling have actually led to the development of boron carbide-based ceramic-metal composites (cermets) and nano-laminated structures that boost multi-hit resistance– a crucial requirement for army and police applications.
These engineered products keep protective performance also after initial effect, dealing with a crucial constraint of monolithic ceramic armor.
3. Neutron Absorption and Nuclear Design Applications
3.1 Communication with Thermal and Rapid Neutrons
Beyond mechanical applications, boron carbide powder plays a vital role in nuclear innovation due to the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When integrated right into control rods, protecting products, or neutron detectors, boron carbide effectively regulates fission responses by catching neutrons and undergoing the ¹⁰ B( n, α) seven Li nuclear response, creating alpha fragments and lithium ions that are conveniently consisted of.
This property makes it important in pressurized water activators (PWRs), boiling water activators (BWRs), and study reactors, where precise neutron change control is necessary for risk-free procedure.
The powder is commonly produced right into pellets, finishes, or dispersed within steel or ceramic matrices to develop composite absorbers with tailored thermal and mechanical properties.
3.2 Stability Under Irradiation and Long-Term Efficiency
An essential advantage of boron carbide in nuclear environments is its high thermal security and radiation resistance as much as temperatures exceeding 1000 ° C.
However, extended neutron irradiation can bring about helium gas buildup from the (n, α) reaction, triggering swelling, microcracking, and deterioration of mechanical integrity– a sensation referred to as “helium embrittlement.”
To minimize this, scientists are creating doped boron carbide formulas (e.g., with silicon or titanium) and composite designs that accommodate gas release and keep dimensional security over extended life span.
Furthermore, isotopic enrichment of ¹⁰ B improves neutron capture effectiveness while minimizing the overall material quantity required, improving reactor layout adaptability.
4. Emerging and Advanced Technological Integrations
4.1 Additive Manufacturing and Functionally Graded Parts
Current development in ceramic additive production has allowed the 3D printing of complex boron carbide elements using techniques such as binder jetting and stereolithography.
In these processes, great boron carbide powder is selectively bound layer by layer, adhered to by debinding and high-temperature sintering to achieve near-full thickness.
This ability permits the manufacture of customized neutron shielding geometries, impact-resistant latticework structures, and multi-material systems where boron carbide is integrated with steels or polymers in functionally graded designs.
Such designs enhance efficiency by incorporating hardness, durability, and weight efficiency in a single element, opening brand-new frontiers in protection, aerospace, and nuclear engineering.
4.2 High-Temperature and Wear-Resistant Industrial Applications
Beyond protection and nuclear sectors, boron carbide powder is utilized in unpleasant waterjet reducing nozzles, sandblasting liners, and wear-resistant coatings as a result of its extreme solidity and chemical inertness.
It outmatches tungsten carbide and alumina in erosive atmospheres, specifically when exposed to silica sand or other difficult particulates.
In metallurgy, it works as a wear-resistant lining for receptacles, chutes, and pumps taking care of unpleasant slurries.
Its low thickness (~ 2.52 g/cm SIX) further improves its appeal in mobile and weight-sensitive commercial devices.
As powder quality boosts and handling innovations breakthrough, boron carbide is poised to expand right into next-generation applications consisting of thermoelectric materials, semiconductor neutron detectors, and space-based radiation protecting.
To conclude, boron carbide powder represents a cornerstone product in extreme-environment engineering, integrating ultra-high hardness, neutron absorption, and thermal strength in a solitary, functional ceramic system.
Its duty in safeguarding lives, allowing nuclear energy, and advancing industrial performance highlights its critical importance in modern technology.
With continued innovation in powder synthesis, microstructural layout, and producing assimilation, boron carbide will certainly continue to be at the forefront of innovative materials advancement for years ahead.
