1. Material Fundamentals and Structural Attributes of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

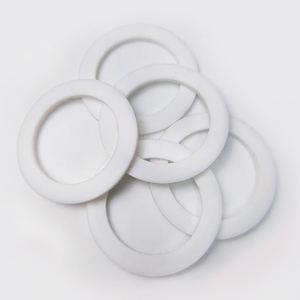

(Alumina Ceramic Substrates)
Alumina ceramic substratums, primarily composed of aluminum oxide (Al ₂ O ₃), serve as the foundation of contemporary digital product packaging as a result of their phenomenal equilibrium of electric insulation, thermal stability, mechanical strength, and manufacturability.
The most thermodynamically secure stage of alumina at high temperatures is corundum, or α-Al ₂ O FIVE, which takes shape in a hexagonal close-packed oxygen latticework with aluminum ions occupying two-thirds of the octahedral interstitial sites.
This thick atomic arrangement conveys high solidity (Mohs 9), outstanding wear resistance, and solid chemical inertness, making α-alumina suitable for extreme operating settings.
Business substrates normally consist of 90– 99.8% Al Two O FOUR, with minor enhancements of silica (SiO TWO), magnesia (MgO), or rare earth oxides made use of as sintering help to promote densification and control grain growth during high-temperature processing.
Greater purity qualities (e.g., 99.5% and over) display superior electrical resistivity and thermal conductivity, while lower purity variations (90– 96%) provide economical remedies for much less demanding applications.
1.2 Microstructure and Defect Engineering for Electronic Reliability
The efficiency of alumina substratums in electronic systems is critically dependent on microstructural harmony and problem minimization.
A fine, equiaxed grain framework– normally ranging from 1 to 10 micrometers– guarantees mechanical honesty and lowers the possibility of split proliferation under thermal or mechanical stress.
Porosity, particularly interconnected or surface-connected pores, must be lessened as it degrades both mechanical stamina and dielectric efficiency.
Advanced handling strategies such as tape spreading, isostatic pushing, and controlled sintering in air or managed atmospheres allow the manufacturing of substrates with near-theoretical density (> 99.5%) and surface roughness listed below 0.5 µm, important for thin-film metallization and cable bonding.
In addition, pollutant segregation at grain limits can bring about leak currents or electrochemical migration under predisposition, requiring stringent control over raw material pureness and sintering problems to guarantee long-term reliability in humid or high-voltage environments.
2. Manufacturing Processes and Substratum Manufacture Technologies

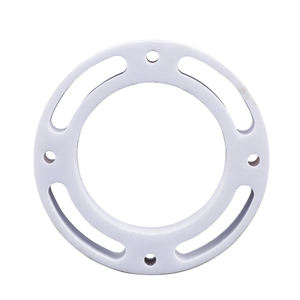

( Alumina Ceramic Substrates)
2.1 Tape Spreading and Green Body Processing
The production of alumina ceramic substratums starts with the prep work of an extremely spread slurry including submicron Al two O three powder, organic binders, plasticizers, dispersants, and solvents.
This slurry is processed using tape casting– a continuous method where the suspension is spread over a relocating carrier movie making use of a precision physician blade to accomplish uniform thickness, normally between 0.1 mm and 1.0 mm.
After solvent dissipation, the resulting “green tape” is adaptable and can be punched, pierced, or laser-cut to create by means of holes for upright affiliations.
Several layers may be laminated to develop multilayer substrates for complicated circuit integration, although the majority of commercial applications utilize single-layer setups because of cost and thermal expansion considerations.
The environment-friendly tapes are after that meticulously debound to remove organic additives with controlled thermal decomposition before last sintering.
2.2 Sintering and Metallization for Circuit Integration
Sintering is conducted in air at temperatures between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore elimination and grain coarsening to attain full densification.
The direct shrinking throughout sintering– typically 15– 20%– need to be exactly anticipated and compensated for in the style of green tapes to guarantee dimensional accuracy of the last substratum.
Complying with sintering, metallization is applied to create conductive traces, pads, and vias.
Two main approaches control: thick-film printing and thin-film deposition.
In thick-film innovation, pastes consisting of steel powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substratum and co-fired in a lowering ambience to form durable, high-adhesion conductors.
For high-density or high-frequency applications, thin-film procedures such as sputtering or dissipation are made use of to deposit attachment layers (e.g., titanium or chromium) followed by copper or gold, enabling sub-micron patterning using photolithography.
Vias are loaded with conductive pastes and terminated to establish electric affiliations in between layers in multilayer designs.
3. Functional Residences and Performance Metrics in Electronic Solution
3.1 Thermal and Electrical Behavior Under Functional Stress And Anxiety
Alumina substratums are prized for their positive mix of modest thermal conductivity (20– 35 W/m · K for 96– 99.8% Al ₂ O ₃), which allows reliable heat dissipation from power tools, and high quantity resistivity (> 10 ¹⁴ Ω · cm), ensuring very little leakage current.
Their dielectric constant (εᵣ ≈ 9– 10 at 1 MHz) is stable over a wide temperature and frequency range, making them suitable for high-frequency circuits up to numerous gigahertz, although lower-κ materials like light weight aluminum nitride are preferred for mm-wave applications.
The coefficient of thermal development (CTE) of alumina (~ 6.8– 7.2 ppm/K) is reasonably well-matched to that of silicon (~ 3 ppm/K) and certain packaging alloys, reducing thermo-mechanical stress during device operation and thermal biking.
Nonetheless, the CTE mismatch with silicon continues to be a problem in flip-chip and direct die-attach configurations, typically needing certified interposers or underfill products to mitigate exhaustion failing.
3.2 Mechanical Effectiveness and Environmental Sturdiness
Mechanically, alumina substratums show high flexural strength (300– 400 MPa) and superb dimensional stability under lots, allowing their use in ruggedized electronics for aerospace, automotive, and commercial control systems.
They are resistant to resonance, shock, and creep at raised temperature levels, maintaining architectural integrity up to 1500 ° C in inert atmospheres.
In moist settings, high-purity alumina shows marginal wetness absorption and exceptional resistance to ion movement, making sure long-lasting dependability in exterior and high-humidity applications.
Surface solidity also safeguards against mechanical damage throughout handling and assembly, although treatment must be required to stay clear of side cracking because of inherent brittleness.
4. Industrial Applications and Technical Effect Throughout Sectors
4.1 Power Electronics, RF Modules, and Automotive Solutions
Alumina ceramic substrates are ubiquitous in power electronic modules, consisting of protected gate bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they offer electric seclusion while promoting warm transfer to warm sinks.
In radio frequency (RF) and microwave circuits, they serve as carrier platforms for hybrid integrated circuits (HICs), surface area acoustic wave (SAW) filters, and antenna feed networks because of their steady dielectric properties and low loss tangent.
In the auto industry, alumina substratums are utilized in engine control units (ECUs), sensor bundles, and electric vehicle (EV) power converters, where they endure high temperatures, thermal biking, and exposure to destructive fluids.
Their dependability under severe problems makes them indispensable for safety-critical systems such as anti-lock stopping (ABDOMINAL MUSCLE) and progressed vehicle driver assistance systems (ADAS).
4.2 Clinical Instruments, Aerospace, and Emerging Micro-Electro-Mechanical Equipments
Past customer and industrial electronic devices, alumina substrates are utilized in implantable clinical gadgets such as pacemakers and neurostimulators, where hermetic securing and biocompatibility are vital.
In aerospace and defense, they are utilized in avionics, radar systems, and satellite communication modules as a result of their radiation resistance and security in vacuum cleaner environments.
Additionally, alumina is progressively utilized as a structural and insulating platform in micro-electro-mechanical systems (MEMS), consisting of pressure sensors, accelerometers, and microfluidic gadgets, where its chemical inertness and compatibility with thin-film handling are useful.
As electronic systems continue to require greater power densities, miniaturization, and reliability under extreme conditions, alumina ceramic substrates remain a keystone material, bridging the space between efficiency, expense, and manufacturability in innovative digital packaging.
