1. Product Principles and Microstructural Characteristics
1.1 Make-up and Crystallographic Residence of Al Two O TWO
(Alumina Ceramic Balls， Alumina Ceramic Balls)

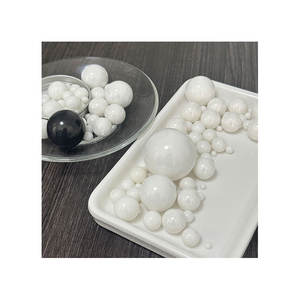

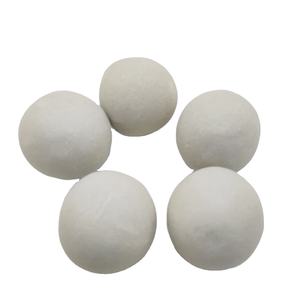

Alumina ceramic spheres are spherical elements fabricated from aluminum oxide (Al ₂ O ₃), a fully oxidized, polycrystalline ceramic that displays exceptional hardness, chemical inertness, and thermal stability.
The main crystalline stage in high-performance alumina balls is α-alumina, which adopts a corundum-type hexagonal close-packed structure where light weight aluminum ions occupy two-thirds of the octahedral interstices within an oxygen anion latticework, giving high latticework energy and resistance to stage makeover.
Industrial-grade alumina rounds usually have 85% to 99.9% Al Two O FOUR, with pureness straight affecting mechanical stamina, put on resistance, and deterioration efficiency.
High-purity grades (≥ 95% Al Two O SIX) are sintered to near-theoretical density (> 99%) utilizing advanced techniques such as pressureless sintering or warm isostatic pressing, lessening porosity and intergranular flaws that can act as stress concentrators.
The resulting microstructure consists of penalty, equiaxed grains uniformly dispersed throughout the quantity, with grain sizes typically varying from 1 to 5 micrometers, maximized to balance strength and hardness.
1.2 Mechanical and Physical Building Profile
Alumina ceramic rounds are renowned for their severe hardness– determined at around 1800– 2000 HV on the Vickers scale– going beyond most steels and measuring up to tungsten carbide, making them excellent for wear-intensive environments.
Their high compressive strength (approximately 2500 MPa) ensures dimensional security under load, while reduced flexible contortion enhances accuracy in rolling and grinding applications.
In spite of their brittleness relative to steels, alumina balls display outstanding crack sturdiness for porcelains, particularly when grain growth is controlled throughout sintering.
They maintain structural integrity throughout a wide temperature level variety, from cryogenic problems up to 1600 ° C in oxidizing environments, far surpassing the thermal restrictions of polymer or steel equivalents.
In addition, their reduced thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) lessens thermal shock susceptibility, enabling use in rapidly fluctuating thermal environments such as kilns and warmth exchangers.
2. Manufacturing Processes and Quality Assurance
()
2.1 Shaping and Sintering Strategies
The manufacturing of alumina ceramic balls starts with high-purity alumina powder, typically stemmed from calcined bauxite or chemically precipitated hydrates, which is grated to attain submicron fragment dimension and slim dimension circulation.
Powders are then developed into spherical green bodies utilizing methods such as extrusion-spheronization, spray drying, or sphere forming in turning pans, depending upon the desired dimension and set range.
After forming, green spheres go through a binder exhaustion phase followed by high-temperature sintering, normally in between 1500 ° C and 1700 ° C, where diffusion systems drive densification and grain coarsening.
Accurate control of sintering ambience (air or regulated oxygen partial stress), heating rate, and dwell time is crucial to accomplishing consistent contraction, spherical geometry, and very little interior defects.
For ultra-high-performance applications, post-sintering therapies such as hot isostatic pushing (HIP) may be applied to eliminate residual microporosity and better boost mechanical dependability.
2.2 Precision Finishing and Metrological Verification
Following sintering, alumina spheres are ground and polished using diamond-impregnated media to achieve limited dimensional tolerances and surface area coatings similar to bearing-grade steel spheres.
Surface area roughness is generally reduced to less than 0.05 μm Ra, lessening rubbing and wear in dynamic call scenarios.
Essential quality criteria consist of sphericity (inconsistency from excellent satiation), diameter variation, surface integrity, and density uniformity, every one of which are determined using optical interferometry, coordinate determining devices (CMM), and laser profilometry.
International criteria such as ISO 3290 and ANSI/ABMA specify tolerance qualities for ceramic balls made use of in bearings, making certain interchangeability and efficiency consistency across suppliers.
Non-destructive testing techniques like ultrasonic assessment or X-ray microtomography are utilized to identify inner cracks, gaps, or incorporations that can compromise long-term dependability.
3. Useful Advantages Over Metallic and Polymer Counterparts
3.1 Chemical and Corrosion Resistance in Harsh Environments
One of one of the most considerable benefits of alumina ceramic rounds is their exceptional resistance to chemical attack.
They remain inert in the existence of strong acids (except hydrofluoric acid), antacid, organic solvents, and saline services, making them suitable for use in chemical handling, pharmaceutical production, and aquatic applications where metal components would corrode quickly.
This inertness prevents contamination of delicate media, an essential factor in food handling, semiconductor fabrication, and biomedical tools.
Unlike steel spheres, alumina does not produce corrosion or metallic ions, making sure process purity and reducing maintenance frequency.
Their non-magnetic nature better expands applicability to MRI-compatible devices and digital assembly lines where magnetic disturbance should be prevented.
3.2 Use Resistance and Long Service Life
In abrasive or high-cycle atmospheres, alumina ceramic spheres show wear rates orders of size lower than steel or polymer choices.
This outstanding sturdiness converts right into prolonged solution intervals, lowered downtime, and reduced total expense of possession despite greater initial procurement costs.
They are extensively made use of as grinding media in ball mills for pigment diffusion, mineral processing, and nanomaterial synthesis, where their inertness stops contamination and their solidity makes certain effective fragment size decrease.
In mechanical seals and valve parts, alumina balls keep limited tolerances over countless cycles, resisting disintegration from particulate-laden liquids.
4. Industrial and Emerging Applications
4.1 Bearings, Shutoffs, and Fluid Handling Systems
Alumina ceramic balls are indispensable to hybrid ball bearings, where they are coupled with steel or silicon nitride races to combine the low density and rust resistance of porcelains with the sturdiness of metals.
Their reduced thickness (~ 3.9 g/cm TWO, about 40% lighter than steel) lowers centrifugal packing at high rotational rates, making it possible for quicker procedure with lower warm generation and boosted energy performance.
Such bearings are made use of in high-speed pins, oral handpieces, and aerospace systems where integrity under severe conditions is critical.
In liquid control applications, alumina rounds function as check valve elements in pumps and metering gadgets, specifically for hostile chemicals, high-purity water, or ultra-high vacuum systems.
Their smooth surface and dimensional security guarantee repeatable sealing performance and resistance to galling or seizing.
4.2 Biomedical, Power, and Advanced Modern Technology Makes Use Of
Past standard industrial functions, alumina ceramic balls are discovering usage in biomedical implants and analysis equipment due to their biocompatibility and radiolucency.
They are used in artificial joints and oral prosthetics where wear debris should be lessened to stop inflammatory responses.
In energy systems, they work as inert tracers in storage tank characterization or as heat-stable elements in concentrated solar energy and gas cell settings up.
Research study is additionally checking out functionalized alumina rounds for catalytic support, sensing unit aspects, and precision calibration criteria in width.
In recap, alumina ceramic spheres exhibit exactly how advanced porcelains link the gap between structural effectiveness and practical precision.
Their one-of-a-kind mix of hardness, chemical inertness, thermal security, and dimensional accuracy makes them vital popular engineering systems throughout diverse industries.
As manufacturing techniques remain to enhance, their performance and application extent are anticipated to expand better into next-generation innovations.
