1. Material Principles and Microstructural Style
1.1 Make-up and Crystallographic Stability of Alumina

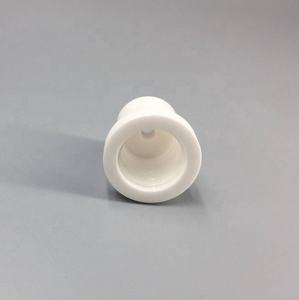

(Alumina Ceramic Nozzles)
Alumina (Al Two O ₃), specifically in its alpha phase, is a completely oxidized ceramic with a corundum-type hexagonal close-packed framework, providing exceptional thermal security, chemical inertness, and mechanical stamina at raised temperature levels.
High-purity alumina (typically 95– 99.9% Al ₂ O THREE) is preferred for nozzle applications because of its minimal pollutant content, which decreases grain limit weakening and boosts resistance to thermal and chemical deterioration.
The microstructure, containing fine, equiaxed grains, is engineered throughout sintering to lessen porosity and maximize thickness, directly affecting the nozzle’s disintegration resistance and architectural integrity under high-velocity liquid flow.
Ingredients such as MgO are typically presented in trace total up to hinder uncommon grain development throughout sintering, ensuring an uniform microstructure that supports lasting dependability.
1.2 Mechanical and Thermal Qualities Relevant to Nozzle Performance
Alumina ceramics display a Vickers solidity surpassing 1800 HV, making them highly resistant to rough wear from particulate-laden liquids, an important characteristic in applications such as sandblasting and unpleasant waterjet cutting.
With a flexural strength of 300– 500 MPa and a compressive toughness over 2 Grade point average, alumina nozzles maintain dimensional security under high-pressure procedure, typically varying from 100 to 400 MPa in commercial systems.
Thermally, alumina preserves its mechanical residential properties as much as 1600 ° C, with a reduced thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) that gives outstanding resistance to thermal shock– necessary when exposed to rapid temperature level fluctuations during startup or closure cycles.
Its thermal conductivity (~ 30 W/m · K) is sufficient to dissipate localized warmth without generating thermal gradients that might result in splitting, stabilizing insulation and heat management demands.
2. Manufacturing Processes and Geometric Accuracy
2.1 Forming and Sintering Techniques for Nozzle Construction
The production of alumina ceramic nozzles begins with high-purity alumina powder, which is refined right into an environment-friendly body utilizing methods such as chilly isostatic pushing (CIP), injection molding, or extrusion, depending on the preferred geometry and batch size.
( Alumina Ceramic Nozzles)
Cold isostatic pushing applies uniform pressure from all directions, yielding an uniform thickness distribution vital for reducing problems during sintering.
Injection molding is utilized for complex nozzle forms with inner tapers and fine orifices, permitting high dimensional accuracy and reproducibility in mass production.
After forming, the green compacts undertake a two-stage thermal therapy: debinding to remove organic binders and sintering at temperature levels in between 1500 ° C and 1650 ° C to achieve near-theoretical density via solid-state diffusion.
Exact control of sintering environment and heating/cooling rates is essential to stop warping, splitting, or grain coarsening that can endanger nozzle performance.
2.2 Machining, Sprucing Up, and Quality Control
Post-sintering, alumina nozzles frequently need accuracy machining to accomplish tight tolerances, especially in the orifice area where circulation dynamics are most conscious surface area coating and geometry.
Diamond grinding and splashing are used to refine internal and outside surface areas, achieving surface roughness worths listed below 0.1 µm, which lowers circulation resistance and prevents fragment build-up.
The orifice, usually varying from 0.3 to 3.0 mm in size, need to be free of micro-cracks and chamfers to make certain laminar flow and constant spray patterns.
Non-destructive screening methods such as optical microscopy, X-ray inspection, and stress cycling examinations are utilized to verify architectural integrity and performance uniformity prior to implementation.
Custom-made geometries, including convergent-divergent (de Laval) accounts for supersonic flow or multi-hole selections for fan spray patterns, are progressively made utilizing advanced tooling and computer-aided design (CAD)-driven manufacturing.
3. Practical Benefits Over Different Nozzle Materials
3.1 Superior Erosion and Rust Resistance
Contrasted to metallic (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina displays much better resistance to rough wear, especially in settings involving silica sand, garnet, or various other hard abrasives made use of in surface area preparation and cutting.
Steel nozzles weaken swiftly due to micro-fracturing and plastic deformation, calling for constant replacement, whereas alumina nozzles can last 3– 5 times much longer, significantly reducing downtime and operational prices.
Furthermore, alumina is inert to the majority of acids, antacid, and solvents, making it suitable for chemical splashing, etching, and cleansing processes where metallic parts would certainly wear away or pollute the liquid.
This chemical stability is particularly valuable in semiconductor manufacturing, pharmaceutical processing, and food-grade applications needing high pureness.
3.2 Thermal and Electric Insulation Quality
Alumina’s high electrical resistivity (> 10 ¹⁴ Ω · cm) makes it optimal for use in electrostatic spray layer systems, where it prevents cost leakage and makes certain uniform paint atomization.
Its thermal insulation ability permits secure operation in high-temperature spraying atmospheres, such as fire splashing or thermal cleaning, without warmth transfer to surrounding components.
Unlike steels, alumina does not catalyze undesirable chain reaction in reactive fluid streams, preserving the honesty of sensitive solutions.
4. Industrial Applications and Technical Impact
4.1 Duties in Abrasive Jet Machining and Surface Area Therapy
Alumina ceramic nozzles are crucial in abrasive blowing up systems for rust elimination, paint stripping, and surface area texturing in automobile, aerospace, and construction sectors.
Their capability to keep a consistent orifice diameter over prolonged usage makes certain consistent unpleasant speed and impact angle, straight influencing surface finish quality and process repeatability.
In unpleasant waterjet cutting, alumina focusing tubes assist the high-pressure water-abrasive blend, holding up against abrasive pressures that would swiftly deteriorate softer materials.
4.2 Usage in Additive Manufacturing, Spray Finishing, and Fluid Control
In thermal spray systems, such as plasma and fire splashing, alumina nozzles straight high-temperature gas circulations and molten particles onto substrates, gaining from their thermal shock resistance and dimensional security.
They are also used in accuracy spray nozzles for farming chemicals, inkjet systems, and gas atomization, where wear resistance makes certain long-lasting dosing precision.
In 3D printing, particularly in binder jetting and material extrusion, alumina nozzles supply fine powders or viscous pastes with minimal clogging or use.
Emerging applications consist of microfluidic systems and lab-on-a-chip gadgets, where miniaturized alumina parts use resilience and biocompatibility.
In summary, alumina ceramic nozzles stand for a vital crossway of materials science and commercial design.
Their exceptional combination of firmness, thermal security, and chemical resistance allows trusted performance in some of one of the most demanding liquid handling atmospheres.
As industrial processes press toward higher pressures, finer resistances, and longer service intervals, alumina ceramics continue to set the standard for durable, high-precision circulation control components.
