1. Basic Make-up and Architectural Style of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Specifying the Material Course

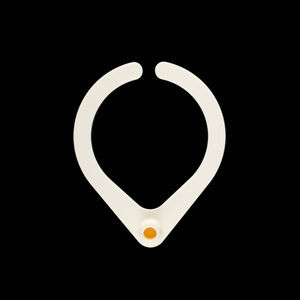

(Transparent Ceramics)
Quartz porcelains, also known as integrated quartz or fused silica ceramics, are innovative inorganic products originated from high-purity crystalline quartz (SiO TWO) that undergo regulated melting and debt consolidation to create a dense, non-crystalline (amorphous) or partially crystalline ceramic structure.
Unlike traditional ceramics such as alumina or zirconia, which are polycrystalline and made up of numerous stages, quartz porcelains are predominantly composed of silicon dioxide in a network of tetrahedrally worked with SiO ₄ units, supplying remarkable chemical pureness– typically going beyond 99.9% SiO TWO.
The distinction in between fused quartz and quartz ceramics hinges on handling: while integrated quartz is normally a fully amorphous glass created by fast air conditioning of molten silica, quartz porcelains may include regulated condensation (devitrification) or sintering of fine quartz powders to accomplish a fine-grained polycrystalline or glass-ceramic microstructure with improved mechanical robustness.
This hybrid strategy incorporates the thermal and chemical stability of integrated silica with improved crack strength and dimensional stability under mechanical lots.
1.2 Thermal and Chemical Stability Mechanisms
The outstanding efficiency of quartz ceramics in severe atmospheres stems from the strong covalent Si– O bonds that create a three-dimensional network with high bond power (~ 452 kJ/mol), conferring exceptional resistance to thermal destruction and chemical attack.
These products show a very low coefficient of thermal growth– around 0.55 × 10 ⁻⁶/ K over the variety 20– 300 ° C– making them very resistant to thermal shock, a critical characteristic in applications including quick temperature level biking.
They preserve architectural honesty from cryogenic temperature levels as much as 1200 ° C in air, and also greater in inert ambiences, before softening starts around 1600 ° C.
Quartz porcelains are inert to most acids, including hydrochloric, nitric, and sulfuric acids, as a result of the security of the SiO two network, although they are prone to attack by hydrofluoric acid and solid antacid at raised temperature levels.
This chemical strength, combined with high electric resistivity and ultraviolet (UV) openness, makes them perfect for usage in semiconductor handling, high-temperature heaters, and optical systems subjected to harsh problems.
2. Manufacturing Processes and Microstructural Control

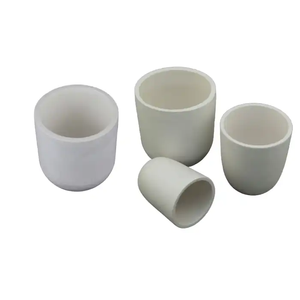

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The manufacturing of quartz porcelains involves innovative thermal handling techniques designed to preserve purity while attaining preferred thickness and microstructure.
One common technique is electric arc melting of high-purity quartz sand, followed by regulated cooling to develop integrated quartz ingots, which can then be machined right into parts.
For sintered quartz porcelains, submicron quartz powders are compressed via isostatic pressing and sintered at temperatures between 1100 ° C and 1400 ° C, frequently with very little ingredients to promote densification without causing excessive grain development or stage transformation.
A critical obstacle in handling is staying clear of devitrification– the spontaneous formation of metastable silica glass right into cristobalite or tridymite stages– which can jeopardize thermal shock resistance as a result of quantity adjustments throughout phase changes.
Suppliers use specific temperature control, fast air conditioning cycles, and dopants such as boron or titanium to suppress unwanted formation and preserve a secure amorphous or fine-grained microstructure.
2.2 Additive Production and Near-Net-Shape Manufacture
Current advancements in ceramic additive production (AM), specifically stereolithography (SLA) and binder jetting, have actually made it possible for the construction of complicated quartz ceramic elements with high geometric accuracy.
In these processes, silica nanoparticles are suspended in a photosensitive resin or uniquely bound layer-by-layer, adhered to by debinding and high-temperature sintering to accomplish full densification.
This strategy decreases material waste and allows for the creation of detailed geometries– such as fluidic channels, optical tooth cavities, or warm exchanger aspects– that are tough or impossible to attain with traditional machining.
Post-processing strategies, consisting of chemical vapor seepage (CVI) or sol-gel layer, are occasionally related to seal surface area porosity and improve mechanical and environmental durability.
These innovations are broadening the application scope of quartz ceramics right into micro-electromechanical systems (MEMS), lab-on-a-chip devices, and customized high-temperature components.
3. Functional Properties and Performance in Extreme Environments
3.1 Optical Transparency and Dielectric Habits
Quartz ceramics display unique optical residential properties, consisting of high transmission in the ultraviolet, visible, and near-infrared spectrum (from ~ 180 nm to 2500 nm), making them crucial in UV lithography, laser systems, and space-based optics.
This openness occurs from the absence of digital bandgap transitions in the UV-visible array and very little spreading due to homogeneity and reduced porosity.
Additionally, they have excellent dielectric residential properties, with a low dielectric constant (~ 3.8 at 1 MHz) and marginal dielectric loss, enabling their use as insulating elements in high-frequency and high-power digital systems, such as radar waveguides and plasma activators.
Their ability to keep electrical insulation at elevated temperature levels even more improves reliability in demanding electric settings.
3.2 Mechanical Behavior and Long-Term Resilience
Despite their high brittleness– a common quality among ceramics– quartz porcelains show great mechanical stamina (flexural toughness as much as 100 MPa) and outstanding creep resistance at heats.
Their solidity (around 5.5– 6.5 on the Mohs scale) gives resistance to surface abrasion, although treatment must be taken during managing to stay clear of chipping or crack proliferation from surface problems.
Ecological longevity is an additional key benefit: quartz porcelains do not outgas substantially in vacuum cleaner, resist radiation damages, and maintain dimensional security over prolonged exposure to thermal cycling and chemical settings.
This makes them favored products in semiconductor construction chambers, aerospace sensors, and nuclear instrumentation where contamination and failing need to be reduced.
4. Industrial, Scientific, and Arising Technological Applications
4.1 Semiconductor and Photovoltaic Production Solutions
In the semiconductor sector, quartz ceramics are ubiquitous in wafer handling tools, consisting of furnace tubes, bell containers, susceptors, and shower heads made use of in chemical vapor deposition (CVD) and plasma etching.
Their purity protects against metal contamination of silicon wafers, while their thermal stability makes certain consistent temperature distribution throughout high-temperature processing actions.
In photovoltaic production, quartz components are utilized in diffusion furnaces and annealing systems for solar battery production, where regular thermal accounts and chemical inertness are necessary for high yield and effectiveness.
The need for bigger wafers and higher throughput has driven the advancement of ultra-large quartz ceramic structures with boosted homogeneity and decreased flaw thickness.
4.2 Aerospace, Protection, and Quantum Technology Combination
Beyond commercial handling, quartz ceramics are used in aerospace applications such as projectile assistance windows, infrared domes, and re-entry car elements due to their ability to hold up against extreme thermal slopes and aerodynamic tension.
In protection systems, their transparency to radar and microwave regularities makes them suitable for radomes and sensor real estates.
A lot more just recently, quartz ceramics have actually found duties in quantum innovations, where ultra-low thermal development and high vacuum cleaner compatibility are needed for accuracy optical tooth cavities, atomic catches, and superconducting qubit rooms.
Their capability to minimize thermal drift ensures long comprehensibility times and high measurement precision in quantum computing and noticing platforms.
In summary, quartz porcelains represent a course of high-performance materials that bridge the gap between typical porcelains and specialized glasses.
Their exceptional mix of thermal security, chemical inertness, optical openness, and electrical insulation allows technologies running at the restrictions of temperature level, purity, and precision.
As producing strategies advance and demand grows for materials capable of withstanding significantly severe conditions, quartz ceramics will certainly remain to play a fundamental duty beforehand semiconductor, energy, aerospace, and quantum systems.
