1. Introduction to Oil Submersed Transformers
In the elaborate internet of our modern-day electrical grid, transformers play an important function, quietly tipping voltage backwards and forwards to make certain power can be transmitted successfully over long distances and dispersed safely to our homes and markets. Amongst the numerous kinds available, the oil submersed transformer stands as a testament to tried and tested reliability and longevity. For decades, these workhorses have formed the backbone of power systems worldwide.
An oil submersed transformer is a type of electrical transformer that uses a specific insulating oil as both a coolant and a protecting medium. This layout is mainly used for tool to high-power applications, making it a keystone of electrical infrastructure. This overview delves deep right into the world of oil immersed power transformers and oil submersed distribution transformers, discovering their innovation, applications, and their advancing role in a period of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil submersed transformer includes a magnetic core and copper or aluminum windings housed inside a sealed storage tank filled with protecting oil. The key function of the oil is twofold:
1. Insulation: The oil has high dielectric toughness, successfully insulating the high-voltage windings from the transformer’s core and based tank. This avoids brief circuits and electrical malfunctions.
2. Cooling: As the transformer runs, the windings create significant warm due to I ² R losses. The distributing oil absorbs this warmth, convects it to the transformer’s tank wall surfaces, and dissipates it into the bordering air. Bigger units often feature radiators or fins to enhance the surface for much more efficient cooling.
This dual-purpose use oil makes the oil submersed transformer remarkably effective and durable, with the ability of taking care of high loads and withstanding transient overloads better than lots of dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these systems are oil submersed transformers, they offer distinctive features within the power system network. Comprehending the difference is vital.
An oil immersed power transformer is a heavyweight, typically utilized in transmission networks at generating terminals and major substations. Their primary duty is to “step-up” the voltage produced at the nuclear power plant to incredibly high degrees (e.g., 138 kV, 230 kV, 500 kV and over) for efficient long-distance transmission, and to “step-down” the voltage at getting substations for further circulation. They are defined by their very high power ratings (often exceeding 100 MVA), complex building, and on-load tap changers for voltage guideline.
An oil involved circulation transformer, on the other hand, executes the last action in the power shipment chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it down to the reduced voltages (e.g., 400/230 V) utilized by business and household consumers. You typically discover them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have lower power ratings (normally as much as 2,500 kVA), and are designed for optimal efficiency at lower, a lot more continuous loads.

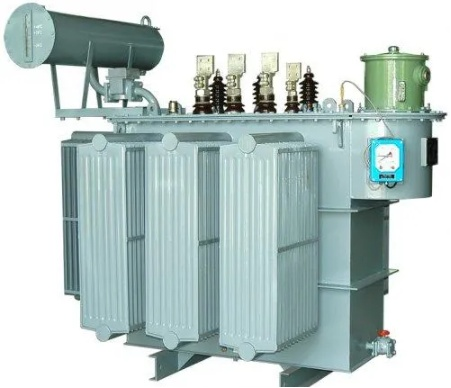

(Oil immersed power transformer)
2. Trick Benefits of Oil Immersed Transformers
The long-lasting appeal of the oil submersed transformer is not unexpected. It uses a suite of compelling advantages that make it the favored selection for several requiring applications.
2.1 Superior Air Conditioning and Overload Capacity
The superior thermal capability of oil contrasted to air permits an oil submersed power transformer to take care of and dissipate warm much more efficiently. This equates to a higher overload capability. Throughout periods of top electrical power demand, an oil submersed transformer can deal with short-lived overloads without sustaining damage, a critical feature for keeping grid security. The oil’s flow ensures even warmth distribution, protecting against local locations that can weaken insulation gradually.
2.2 Improved Insulation and Long Service Life
The mix of high-grade mineral oil and thoroughly impregnated paper insulation produces a dielectric system of remarkable strength. This robust insulation system protects the transformer from voltage surges and transients, contributing to a functional life expectancy that can reach 30-40 years or more with correct upkeep. The sealed container additionally secures the interior parts from wetness, dust, and other climatic pollutants.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil submersed transformer is often one of the most cost-effective selection. The materials made use of– mineral oil, steel storage tank, and copper/aluminum windings– supply a favorable balance of performance and expense. The high efficiency of these transformers, specifically at their rated tons, leads to lower power losses over their lifetime, leading to considerable cost savings for energy firms and huge industrial customers.
3. Hot Topics and Future Trends
The world of oil submersed transformers is not fixed. It is continually evolving to meet brand-new challenges and incorporate with modern innovations.
3.1 Biodegradable and Fireproof Oils
Environmental and safety worries are driving a substantial change far from traditional mineral oil. The marketplace is rapidly adopting oil immersed transformers filled with eco-friendly esters (synthetic or natural). These oils use a greater fire factor (making them K-class fire-resistant), are much less poisonous, and are easily naturally degradable, significantly minimizing the environmental influence in case of a leak. This trend is making oil immersed circulation transformers safer for setup in city areas and ecologically sensitive areas.
3.2 Combination with Smart Grids and IoT
The contemporary oil involved power transformer is coming to be an intelligent node in the smart grid. Sensors are being incorporated to keep track of vital parameters in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Spotting fault gases generated within the oil to anticipate incipient mistakes.
Temperature Surveillance: Tracking top-oil and hotspot temperatures.
Tons and Power Quality Surveillance.
This information, transferred through IoT (Net of Points) systems, enables predictive upkeep, protects against unplanned interruptions, and maximizes transformer utilization and life expectancy.
3.3 Sustaining the Renewable Resource Shift
The worldwide push for renewables is creating brand-new demand for oil submersed transformers. Massive solar farms and wind power installations require durable oil submersed power transformers to step up the produced voltage to transmission degrees. Furthermore, the periodic nature of renewables areas greater stress on grid parts, and the proven dependability and overload capability of oil submersed transformers make them ideal for this essential duty.
4. Selection and Maintenance Best Practices
Choosing the right transformer and preserving it correctly is vital to a reliable power system.
4.1 How to Select the Right Oil Immersed Transformer
Selecting between an oil submersed power transformer and an oil submersed distribution transformer depends on the application. Secret considerations include:
1. Voltage Level and kVA Ranking: Suit the transformer’s specs to your system’s needs.
2. Application: Transmission substation, industrial plant, or industrial circulation.
3. Place: Indoor vs. outdoor, ecological problems, and fire safety laws (which may affect the choice of protecting oil).
4. Efficiency Criteria: Comply with regional efficiency requirements like DOE (United States) or EU CoC (Europe).
5. Budget plan: Consider both the first funding expense and the total price of ownership, consisting of losses.
(Oil immersed distribution transformer)
4.2 Essential Upkeep for Durability
Positive upkeep is vital for any oil immersed transformer. A detailed program needs to consist of:
1. Routine Oil Sampling and Testing: Routine DGA and screening of dielectric stamina and wetness content are one of the most reliable ways to analyze the health and wellness of the transformer.
2. Bushing and Insulation Inspection: Aesthetic look for cracks, contamination, or leakages.
3. Faucet Changer Upkeep: Regular examination and maintenance of on-load or off-load faucet changers.
4. Maintain it Tidy and Dry: Ensuring the tank outside, radiators, and rests are tidy and useful.
The oil submersed transformer, in its duties as both a high-capacity oil immersed power transformer and a common oil immersed circulation transformer, remains an irreplaceable element of our worldwide power infrastructure. Its tried and tested layout, combined with ongoing innovations in insulating liquids and digital surveillance, ensures it will certainly continue to be a reliable, effective, and intelligent service for powering our globe for years ahead. As we construct the grids of the future, integrating more renewables and digital knowledge, the durable and adaptable oil submersed transformer will certainly be at the heart of it.
