1. Structural Qualities and Synthesis of Spherical Silica
1.1 Morphological Meaning and Crystallinity

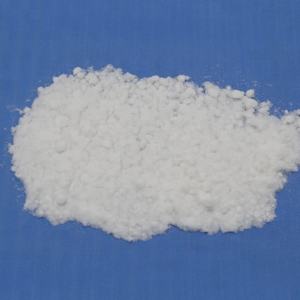

(Spherical Silica)
Round silica describes silicon dioxide (SiO ₂) particles engineered with a highly uniform, near-perfect round shape, distinguishing them from standard irregular or angular silica powders derived from all-natural resources.
These fragments can be amorphous or crystalline, though the amorphous form controls industrial applications as a result of its exceptional chemical security, reduced sintering temperature, and absence of stage shifts that could induce microcracking.
The round morphology is not naturally common; it needs to be artificially attained via controlled procedures that regulate nucleation, development, and surface area energy minimization.
Unlike smashed quartz or fused silica, which show jagged sides and wide size distributions, round silica attributes smooth surface areas, high packing density, and isotropic behavior under mechanical tension, making it perfect for accuracy applications.
The bit size typically varies from 10s of nanometers to numerous micrometers, with limited control over dimension distribution enabling predictable efficiency in composite systems.
1.2 Regulated Synthesis Pathways
The main technique for generating round silica is the Stöber process, a sol-gel technique established in the 1960s that includes the hydrolysis and condensation of silicon alkoxides– most typically tetraethyl orthosilicate (TEOS)– in an alcoholic solution with ammonia as a catalyst.
By readjusting criteria such as reactant focus, water-to-alkoxide proportion, pH, temperature level, and response time, researchers can precisely tune fragment dimension, monodispersity, and surface area chemistry.
This approach yields extremely consistent, non-agglomerated rounds with superb batch-to-batch reproducibility, crucial for sophisticated production.
Different techniques include fire spheroidization, where uneven silica particles are thawed and reshaped into rounds through high-temperature plasma or fire treatment, and emulsion-based methods that enable encapsulation or core-shell structuring.
For large industrial production, sodium silicate-based rainfall courses are additionally employed, using affordable scalability while keeping acceptable sphericity and pureness.
Surface area functionalization throughout or after synthesis– such as implanting with silanes– can present natural groups (e.g., amino, epoxy, or plastic) to boost compatibility with polymer matrices or allow bioconjugation.

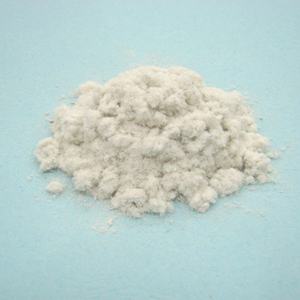

( Spherical Silica)
2. Practical Properties and Performance Advantages
2.1 Flowability, Packing Density, and Rheological Behavior
Among one of the most considerable advantages of round silica is its superior flowability contrasted to angular equivalents, a residential or commercial property important in powder handling, shot molding, and additive production.
The absence of sharp sides decreases interparticle friction, allowing thick, homogeneous loading with minimal void space, which boosts the mechanical stability and thermal conductivity of final composites.
In digital packaging, high packing thickness directly equates to reduce material in encapsulants, boosting thermal stability and reducing coefficient of thermal expansion (CTE).
Moreover, spherical fragments impart positive rheological residential or commercial properties to suspensions and pastes, minimizing viscosity and protecting against shear thickening, which makes sure smooth giving and consistent finish in semiconductor fabrication.
This regulated flow behavior is vital in applications such as flip-chip underfill, where accurate product positioning and void-free filling are called for.
2.2 Mechanical and Thermal Security
Spherical silica displays excellent mechanical strength and elastic modulus, contributing to the support of polymer matrices without generating stress concentration at sharp corners.
When included right into epoxy resins or silicones, it improves solidity, put on resistance, and dimensional security under thermal cycling.
Its low thermal growth coefficient (~ 0.5 × 10 ⁻⁶/ K) very closely matches that of silicon wafers and published circuit card, lessening thermal mismatch anxieties in microelectronic tools.
Additionally, round silica keeps architectural integrity at elevated temperatures (as much as ~ 1000 ° C in inert environments), making it appropriate for high-reliability applications in aerospace and vehicle electronics.
The mix of thermal security and electric insulation further boosts its utility in power components and LED product packaging.
3. Applications in Electronic Devices and Semiconductor Market
3.1 Duty in Electronic Packaging and Encapsulation
Spherical silica is a keystone material in the semiconductor market, mainly used as a filler in epoxy molding substances (EMCs) for chip encapsulation.
Changing traditional uneven fillers with round ones has changed packaging innovation by making it possible for higher filler loading (> 80 wt%), boosted mold flow, and lowered cable sweep throughout transfer molding.
This advancement sustains the miniaturization of integrated circuits and the development of sophisticated plans such as system-in-package (SiP) and fan-out wafer-level packaging (FOWLP).
The smooth surface of round fragments additionally reduces abrasion of great gold or copper bonding cords, improving tool dependability and yield.
Moreover, their isotropic nature makes sure consistent stress distribution, minimizing the threat of delamination and fracturing throughout thermal biking.
3.2 Usage in Sprucing Up and Planarization Processes
In chemical mechanical planarization (CMP), spherical silica nanoparticles function as unpleasant agents in slurries created to brighten silicon wafers, optical lenses, and magnetic storage media.
Their consistent size and shape make certain consistent product removal rates and marginal surface area defects such as scratches or pits.
Surface-modified round silica can be customized for certain pH settings and sensitivity, improving selectivity in between various materials on a wafer surface.
This accuracy makes it possible for the manufacture of multilayered semiconductor frameworks with nanometer-scale monotony, a prerequisite for advanced lithography and tool combination.
4. Emerging and Cross-Disciplinary Applications
4.1 Biomedical and Diagnostic Uses
Past electronics, round silica nanoparticles are increasingly utilized in biomedicine as a result of their biocompatibility, simplicity of functionalization, and tunable porosity.
They serve as medicine shipment providers, where healing agents are loaded right into mesoporous frameworks and launched in reaction to stimuli such as pH or enzymes.
In diagnostics, fluorescently classified silica balls work as stable, non-toxic probes for imaging and biosensing, exceeding quantum dots in particular biological settings.
Their surface area can be conjugated with antibodies, peptides, or DNA for targeted discovery of microorganisms or cancer cells biomarkers.
4.2 Additive Manufacturing and Compound Products
In 3D printing, specifically in binder jetting and stereolithography, round silica powders boost powder bed thickness and layer harmony, causing greater resolution and mechanical strength in published ceramics.
As a strengthening phase in metal matrix and polymer matrix compounds, it boosts stiffness, thermal management, and use resistance without compromising processability.
Research is likewise exploring hybrid bits– core-shell structures with silica shells over magnetic or plasmonic cores– for multifunctional materials in noticing and power storage.
In conclusion, round silica exhibits exactly how morphological control at the micro- and nanoscale can transform a typical product into a high-performance enabler across varied modern technologies.
From protecting silicon chips to progressing clinical diagnostics, its distinct combination of physical, chemical, and rheological residential properties remains to drive technology in science and design.
