1. Material Principles and Morphological Advantages
1.1 Crystal Structure and Chemical Composition

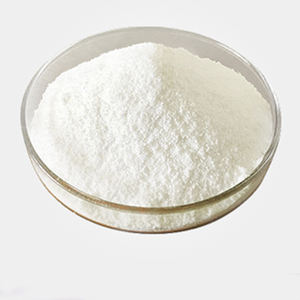

(Spherical alumina)
Round alumina, or round light weight aluminum oxide (Al two O FIVE), is an artificially generated ceramic product defined by a well-defined globular morphology and a crystalline framework predominantly in the alpha (α) stage.
Alpha-alumina, one of the most thermodynamically stable polymorph, includes a hexagonal close-packed plan of oxygen ions with aluminum ions occupying two-thirds of the octahedral interstices, leading to high latticework energy and extraordinary chemical inertness.
This stage exhibits superior thermal stability, keeping integrity approximately 1800 ° C, and stands up to reaction with acids, antacid, and molten metals under a lot of commercial conditions.
Unlike irregular or angular alumina powders stemmed from bauxite calcination, round alumina is crafted via high-temperature procedures such as plasma spheroidization or fire synthesis to attain consistent roundness and smooth surface appearance.
The transformation from angular forerunner bits– frequently calcined bauxite or gibbsite– to thick, isotropic balls removes sharp edges and inner porosity, improving packaging efficiency and mechanical durability.
High-purity qualities (≥ 99.5% Al Two O FOUR) are crucial for digital and semiconductor applications where ionic contamination have to be minimized.
1.2 Fragment Geometry and Packaging Habits
The defining attribute of spherical alumina is its near-perfect sphericity, usually evaluated by a sphericity index > 0.9, which significantly affects its flowability and packing density in composite systems.
In comparison to angular bits that interlock and create gaps, spherical bits roll previous one another with minimal rubbing, enabling high solids packing throughout formulation of thermal user interface materials (TIMs), encapsulants, and potting compounds.
This geometric harmony permits optimum theoretical packaging densities surpassing 70 vol%, much exceeding the 50– 60 vol% typical of irregular fillers.
Higher filler filling straight converts to improved thermal conductivity in polymer matrices, as the continuous ceramic network gives effective phonon transportation paths.
Additionally, the smooth surface minimizes endure processing devices and decreases thickness rise during blending, boosting processability and dispersion stability.
The isotropic nature of rounds additionally avoids orientation-dependent anisotropy in thermal and mechanical homes, ensuring consistent performance in all directions.
2. Synthesis Techniques and Quality Assurance
2.1 High-Temperature Spheroidization Techniques
The manufacturing of round alumina mostly relies on thermal techniques that melt angular alumina fragments and enable surface area tension to improve them into spheres.
( Spherical alumina)
Plasma spheroidization is the most extensively utilized commercial technique, where alumina powder is infused into a high-temperature plasma fire (as much as 10,000 K), creating instant melting and surface tension-driven densification into excellent spheres.
The liquified droplets strengthen quickly during flight, forming dense, non-porous bits with uniform size circulation when combined with accurate category.
Alternate approaches consist of flame spheroidization making use of oxy-fuel torches and microwave-assisted home heating, though these usually supply lower throughput or much less control over fragment dimension.
The beginning material’s pureness and bit size distribution are critical; submicron or micron-scale forerunners generate similarly sized spheres after processing.
Post-synthesis, the item undertakes rigorous sieving, electrostatic separation, and laser diffraction analysis to guarantee tight fragment size circulation (PSD), generally varying from 1 to 50 µm relying on application.
2.2 Surface Modification and Functional Tailoring
To boost compatibility with organic matrices such as silicones, epoxies, and polyurethanes, spherical alumina is usually surface-treated with combining agents.
Silane combining representatives– such as amino, epoxy, or vinyl practical silanes– kind covalent bonds with hydroxyl groups on the alumina surface area while offering organic functionality that connects with the polymer matrix.
This treatment improves interfacial adhesion, minimizes filler-matrix thermal resistance, and prevents pile, causing more homogeneous composites with premium mechanical and thermal performance.
Surface finishings can also be engineered to give hydrophobicity, improve diffusion in nonpolar materials, or make it possible for stimuli-responsive actions in smart thermal products.
Quality control includes measurements of BET area, tap thickness, thermal conductivity (usually 25– 35 W/(m · K )for dense α-alumina), and pollutant profiling using ICP-MS to leave out Fe, Na, and K at ppm degrees.
Batch-to-batch uniformity is essential for high-reliability applications in electronic devices and aerospace.
3. Thermal and Mechanical Performance in Composites
3.1 Thermal Conductivity and User Interface Design
Spherical alumina is largely employed as a high-performance filler to boost the thermal conductivity of polymer-based products used in electronic product packaging, LED lights, and power components.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), loading with 60– 70 vol% spherical alumina can raise this to 2– 5 W/(m · K), adequate for effective heat dissipation in small tools.
The high intrinsic thermal conductivity of α-alumina, integrated with very little phonon scattering at smooth particle-particle and particle-matrix user interfaces, enables efficient warmth transfer with percolation networks.
Interfacial thermal resistance (Kapitza resistance) stays a limiting factor, but surface functionalization and optimized dispersion strategies aid lessen this barrier.
In thermal interface materials (TIMs), round alumina reduces call resistance between heat-generating parts (e.g., CPUs, IGBTs) and warmth sinks, avoiding overheating and expanding device life expectancy.
Its electric insulation (resistivity > 10 ¹² Ω · centimeters) makes sure safety in high-voltage applications, differentiating it from conductive fillers like steel or graphite.
3.2 Mechanical Security and Dependability
Past thermal efficiency, spherical alumina improves the mechanical toughness of compounds by increasing hardness, modulus, and dimensional security.
The spherical form distributes anxiety consistently, reducing split initiation and propagation under thermal cycling or mechanical tons.
This is especially essential in underfill materials and encapsulants for flip-chip and 3D-packaged tools, where coefficient of thermal growth (CTE) inequality can generate delamination.
By adjusting filler loading and particle dimension circulation (e.g., bimodal blends), the CTE of the compound can be tuned to match that of silicon or published motherboard, lessening thermo-mechanical stress.
In addition, the chemical inertness of alumina protects against degradation in moist or harsh environments, making sure long-lasting integrity in auto, industrial, and exterior electronic devices.
4. Applications and Technological Development
4.1 Electronics and Electric Lorry Solutions
Round alumina is a crucial enabler in the thermal monitoring of high-power electronic devices, including protected gateway bipolar transistors (IGBTs), power products, and battery administration systems in electric automobiles (EVs).
In EV battery packs, it is integrated right into potting substances and phase adjustment products to stop thermal runaway by evenly dispersing heat throughout cells.
LED suppliers utilize it in encapsulants and additional optics to maintain lumen output and color consistency by reducing joint temperature.
In 5G framework and information facilities, where warm flux thickness are rising, round alumina-filled TIMs guarantee stable operation of high-frequency chips and laser diodes.
Its function is expanding right into advanced packaging modern technologies such as fan-out wafer-level product packaging (FOWLP) and ingrained die systems.
4.2 Emerging Frontiers and Lasting Innovation
Future developments concentrate on hybrid filler systems incorporating round alumina with boron nitride, light weight aluminum nitride, or graphene to achieve synergistic thermal efficiency while keeping electrical insulation.
Nano-spherical alumina (sub-100 nm) is being explored for clear ceramics, UV layers, and biomedical applications, though difficulties in dispersion and price stay.
Additive production of thermally conductive polymer composites making use of round alumina allows facility, topology-optimized warm dissipation frameworks.
Sustainability initiatives consist of energy-efficient spheroidization processes, recycling of off-spec material, and life-cycle evaluation to lower the carbon footprint of high-performance thermal materials.
In summary, round alumina stands for an essential engineered material at the junction of ceramics, compounds, and thermal science.
Its distinct mix of morphology, purity, and performance makes it vital in the ongoing miniaturization and power accumulation of modern electronic and power systems.
