1. Material Structures and Collaborating Layout
1.1 Innate Characteristics of Constituent Phases

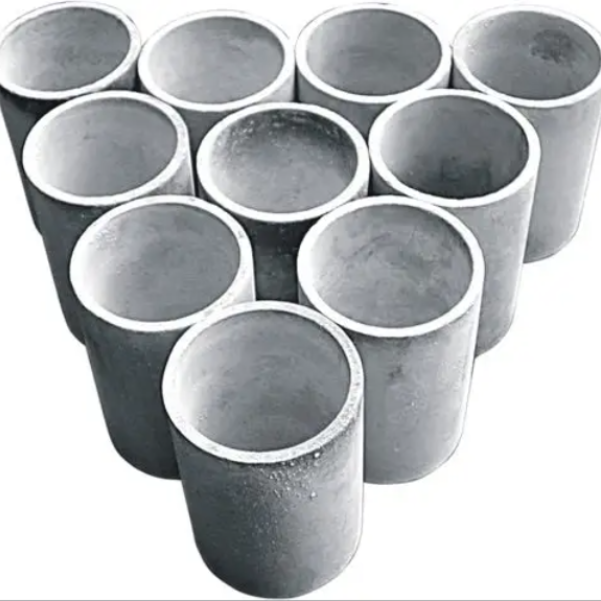

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si ₃ N ₄) and silicon carbide (SiC) are both covalently bound, non-oxide porcelains renowned for their exceptional performance in high-temperature, corrosive, and mechanically demanding settings.
Silicon nitride shows superior crack durability, thermal shock resistance, and creep stability due to its one-of-a-kind microstructure made up of extended β-Si three N ₄ grains that allow split deflection and linking mechanisms.
It keeps toughness up to 1400 ° C and possesses a relatively low thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), lessening thermal anxieties during quick temperature level changes.
On the other hand, silicon carbide supplies premium firmness, thermal conductivity (up to 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it perfect for abrasive and radiative heat dissipation applications.
Its wide bandgap (~ 3.3 eV for 4H-SiC) also gives outstanding electrical insulation and radiation tolerance, useful in nuclear and semiconductor contexts.
When incorporated right into a composite, these materials show corresponding behaviors: Si ₃ N ₄ boosts durability and damages tolerance, while SiC boosts thermal monitoring and put on resistance.
The resulting crossbreed ceramic attains an equilibrium unattainable by either phase alone, developing a high-performance structural product customized for severe service conditions.
1.2 Composite Design and Microstructural Design
The style of Si five N ₄– SiC compounds involves precise control over stage circulation, grain morphology, and interfacial bonding to make the most of collaborating effects.
Generally, SiC is introduced as fine particulate reinforcement (ranging from submicron to 1 µm) within a Si two N four matrix, although functionally graded or split designs are additionally discovered for specialized applications.
During sintering– normally via gas-pressure sintering (GENERAL PRACTITIONER) or hot pushing– SiC particles influence the nucleation and development kinetics of β-Si five N ₄ grains, typically promoting finer and even more consistently oriented microstructures.
This improvement boosts mechanical homogeneity and decreases flaw size, contributing to enhanced toughness and reliability.
Interfacial compatibility in between the two stages is vital; due to the fact that both are covalent porcelains with comparable crystallographic balance and thermal development actions, they form systematic or semi-coherent borders that withstand debonding under load.
Additives such as yttria (Y TWO O TWO) and alumina (Al two O FIVE) are utilized as sintering help to promote liquid-phase densification of Si two N ₄ without compromising the security of SiC.
Nonetheless, too much secondary stages can weaken high-temperature performance, so composition and processing need to be maximized to reduce lustrous grain limit movies.
2. Handling Techniques and Densification Challenges
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Approaches
High-quality Si Four N FOUR– SiC compounds begin with homogeneous mixing of ultrafine, high-purity powders utilizing damp sphere milling, attrition milling, or ultrasonic dispersion in organic or aqueous media.
Achieving consistent diffusion is vital to prevent agglomeration of SiC, which can serve as anxiety concentrators and minimize crack strength.
Binders and dispersants are added to maintain suspensions for forming strategies such as slip spreading, tape casting, or injection molding, relying on the wanted component geometry.
Green bodies are after that very carefully dried and debound to eliminate organics before sintering, a procedure requiring regulated home heating prices to stay clear of breaking or warping.
For near-net-shape manufacturing, additive strategies like binder jetting or stereolithography are emerging, allowing complicated geometries formerly unachievable with standard ceramic processing.
These methods require tailored feedstocks with optimized rheology and environment-friendly toughness, frequently entailing polymer-derived porcelains or photosensitive resins filled with composite powders.
2.2 Sintering Systems and Phase Stability
Densification of Si Three N ₄– SiC composites is testing due to the strong covalent bonding and minimal self-diffusion of nitrogen and carbon at sensible temperatures.
Liquid-phase sintering using rare-earth or alkaline earth oxides (e.g., Y TWO O TWO, MgO) reduces the eutectic temperature and boosts mass transport via a transient silicate melt.
Under gas stress (usually 1– 10 MPa N ₂), this thaw facilitates rearrangement, solution-precipitation, and final densification while reducing disintegration of Si four N ₄.
The existence of SiC affects viscosity and wettability of the liquid phase, potentially modifying grain development anisotropy and final appearance.
Post-sintering heat treatments might be applied to crystallize residual amorphous stages at grain boundaries, boosting high-temperature mechanical properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are routinely made use of to validate stage pureness, lack of unfavorable second stages (e.g., Si two N ₂ O), and consistent microstructure.
3. Mechanical and Thermal Performance Under Tons
3.1 Stamina, Strength, and Tiredness Resistance
Si Three N FOUR– SiC composites show remarkable mechanical performance compared to monolithic ceramics, with flexural strengths exceeding 800 MPa and crack sturdiness values reaching 7– 9 MPa · m ¹/ ².
The enhancing effect of SiC particles restrains misplacement movement and crack proliferation, while the extended Si six N ₄ grains continue to provide toughening through pull-out and bridging mechanisms.
This dual-toughening technique leads to a product extremely immune to effect, thermal biking, and mechanical tiredness– essential for revolving components and structural components in aerospace and power systems.
Creep resistance continues to be outstanding up to 1300 ° C, attributed to the security of the covalent network and lessened grain boundary sliding when amorphous stages are lowered.
Solidity values normally range from 16 to 19 GPa, offering excellent wear and erosion resistance in abrasive atmospheres such as sand-laden circulations or gliding get in touches with.
3.2 Thermal Administration and Ecological Longevity
The enhancement of SiC dramatically elevates the thermal conductivity of the composite, commonly increasing that of pure Si ₃ N FOUR (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) relying on SiC content and microstructure.
This enhanced warm transfer ability enables more effective thermal management in parts exposed to extreme local home heating, such as combustion liners or plasma-facing components.
The composite retains dimensional security under steep thermal slopes, withstanding spallation and fracturing due to matched thermal development and high thermal shock criterion (R-value).
Oxidation resistance is an additional crucial advantage; SiC forms a protective silica (SiO ₂) layer upon exposure to oxygen at raised temperatures, which better densifies and seals surface flaws.
This passive layer protects both SiC and Si Five N FOUR (which also oxidizes to SiO ₂ and N ₂), making sure long-lasting sturdiness in air, heavy steam, or combustion environments.
4. Applications and Future Technological Trajectories
4.1 Aerospace, Power, and Industrial Systems
Si Five N FOUR– SiC composites are significantly released in next-generation gas turbines, where they enable greater running temperature levels, enhanced gas efficiency, and decreased air conditioning demands.
Components such as turbine blades, combustor liners, and nozzle overview vanes benefit from the product’s ability to stand up to thermal biking and mechanical loading without substantial deterioration.
In atomic power plants, particularly high-temperature gas-cooled activators (HTGRs), these compounds function as gas cladding or structural assistances because of their neutron irradiation tolerance and fission product retention ability.
In commercial setups, they are made use of in molten metal handling, kiln furniture, and wear-resistant nozzles and bearings, where conventional metals would certainly fail too soon.
Their lightweight nature (density ~ 3.2 g/cm FOUR) also makes them eye-catching for aerospace propulsion and hypersonic automobile parts based on aerothermal home heating.
4.2 Advanced Manufacturing and Multifunctional Assimilation
Arising study concentrates on developing functionally rated Si four N ₄– SiC structures, where make-up differs spatially to maximize thermal, mechanical, or electro-magnetic homes throughout a solitary element.
Crossbreed systems including CMC (ceramic matrix composite) designs with fiber support (e.g., SiC_f/ SiC– Si Five N ₄) push the boundaries of damages resistance and strain-to-failure.
Additive production of these compounds allows topology-optimized warm exchangers, microreactors, and regenerative cooling networks with inner lattice frameworks unreachable via machining.
In addition, their fundamental dielectric residential properties and thermal stability make them candidates for radar-transparent radomes and antenna windows in high-speed systems.
As demands expand for materials that carry out dependably under severe thermomechanical lots, Si two N ₄– SiC compounds stand for a pivotal improvement in ceramic engineering, combining robustness with functionality in a single, lasting system.
Finally, silicon nitride– silicon carbide composite porcelains exemplify the power of materials-by-design, leveraging the toughness of 2 sophisticated porcelains to create a hybrid system with the ability of thriving in one of the most serious operational settings.
Their proceeded development will certainly play a central duty beforehand tidy power, aerospace, and commercial innovations in the 21st century.
