1. Product Features and Structural Integrity
1.1 Intrinsic Characteristics of Silicon Carbide

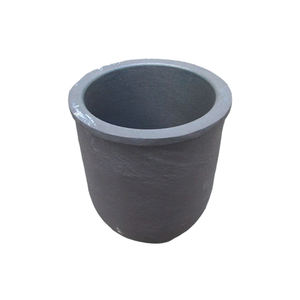

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms organized in a tetrahedral lattice framework, mainly existing in over 250 polytypic kinds, with 6H, 4H, and 3C being one of the most technologically appropriate.
Its solid directional bonding conveys remarkable solidity (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m · K )for pure single crystals), and impressive chemical inertness, making it one of the most robust materials for severe atmospheres.
The broad bandgap (2.9– 3.3 eV) guarantees outstanding electric insulation at room temperature level and high resistance to radiation damages, while its reduced thermal development coefficient (~ 4.0 × 10 ⁻⁶/ K) contributes to exceptional thermal shock resistance.
These inherent residential properties are maintained even at temperature levels exceeding 1600 ° C, allowing SiC to maintain structural integrity under prolonged direct exposure to molten steels, slags, and responsive gases.
Unlike oxide porcelains such as alumina, SiC does not react conveniently with carbon or kind low-melting eutectics in decreasing atmospheres, a vital benefit in metallurgical and semiconductor handling.
When fabricated into crucibles– vessels designed to contain and heat materials– SiC outshines traditional products like quartz, graphite, and alumina in both life expectancy and procedure dependability.
1.2 Microstructure and Mechanical Stability
The efficiency of SiC crucibles is very closely linked to their microstructure, which relies on the production technique and sintering additives made use of.
Refractory-grade crucibles are commonly generated by means of reaction bonding, where porous carbon preforms are infiltrated with molten silicon, creating β-SiC via the response Si(l) + C(s) → SiC(s).
This procedure yields a composite structure of primary SiC with residual totally free silicon (5– 10%), which improves thermal conductivity however may restrict usage over 1414 ° C(the melting point of silicon).
Conversely, completely sintered SiC crucibles are made through solid-state or liquid-phase sintering utilizing boron and carbon or alumina-yttria additives, attaining near-theoretical density and higher purity.
These display remarkable creep resistance and oxidation stability however are more pricey and challenging to make in plus sizes.
( Silicon Carbide Crucibles)
The fine-grained, interlocking microstructure of sintered SiC provides excellent resistance to thermal tiredness and mechanical erosion, essential when managing liquified silicon, germanium, or III-V compounds in crystal growth procedures.
Grain boundary engineering, consisting of the control of secondary phases and porosity, plays an important duty in identifying lasting sturdiness under cyclic heating and aggressive chemical environments.
2. Thermal Efficiency and Environmental Resistance
2.1 Thermal Conductivity and Heat Distribution
Among the specifying benefits of SiC crucibles is their high thermal conductivity, which makes it possible for fast and consistent warm transfer throughout high-temperature handling.
In contrast to low-conductivity materials like integrated silica (1– 2 W/(m · K)), SiC efficiently disperses thermal power throughout the crucible wall surface, reducing local locations and thermal gradients.
This uniformity is vital in procedures such as directional solidification of multicrystalline silicon for photovoltaics, where temperature level homogeneity directly affects crystal top quality and issue thickness.
The mix of high conductivity and reduced thermal development results in an exceptionally high thermal shock parameter (R = k(1 − ν)α/ σ), making SiC crucibles resistant to splitting during quick heating or cooling cycles.
This allows for faster furnace ramp prices, enhanced throughput, and reduced downtime because of crucible failure.
Additionally, the material’s ability to stand up to repeated thermal biking without significant destruction makes it excellent for batch processing in industrial heaters operating above 1500 ° C.
2.2 Oxidation and Chemical Compatibility
At elevated temperature levels in air, SiC goes through easy oxidation, developing a safety layer of amorphous silica (SiO TWO) on its surface: SiC + 3/2 O ₂ → SiO ₂ + CO.
This lustrous layer densifies at high temperatures, acting as a diffusion obstacle that slows down further oxidation and preserves the underlying ceramic framework.
However, in decreasing ambiences or vacuum cleaner problems– usual in semiconductor and metal refining– oxidation is reduced, and SiC remains chemically secure against molten silicon, light weight aluminum, and numerous slags.
It resists dissolution and reaction with liquified silicon as much as 1410 ° C, although prolonged exposure can result in mild carbon pick-up or user interface roughening.
Crucially, SiC does not introduce metallic pollutants into delicate thaws, a key need for electronic-grade silicon production where contamination by Fe, Cu, or Cr needs to be kept below ppb levels.
Nonetheless, treatment must be taken when refining alkaline earth steels or highly responsive oxides, as some can wear away SiC at extreme temperature levels.
3. Manufacturing Processes and Quality Control
3.1 Construction Strategies and Dimensional Control
The production of SiC crucibles entails shaping, drying out, and high-temperature sintering or seepage, with approaches chosen based upon needed purity, dimension, and application.
Usual developing methods consist of isostatic pushing, extrusion, and slip casting, each supplying different levels of dimensional precision and microstructural harmony.
For large crucibles made use of in solar ingot casting, isostatic pressing makes sure constant wall surface density and density, decreasing the danger of crooked thermal growth and failing.
Reaction-bonded SiC (RBSC) crucibles are economical and widely utilized in foundries and solar sectors, though residual silicon limits optimal service temperature.
Sintered SiC (SSiC) variations, while extra expensive, offer superior pureness, toughness, and resistance to chemical attack, making them ideal for high-value applications like GaAs or InP crystal growth.
Accuracy machining after sintering may be needed to attain tight resistances, especially for crucibles utilized in vertical slope freeze (VGF) or Czochralski (CZ) systems.
Surface completing is important to lessen nucleation websites for flaws and ensure smooth melt circulation throughout casting.
3.2 Quality Control and Performance Validation
Strenuous quality assurance is vital to make certain integrity and longevity of SiC crucibles under demanding functional problems.
Non-destructive examination methods such as ultrasonic testing and X-ray tomography are employed to identify inner cracks, voids, or thickness variations.
Chemical analysis by means of XRF or ICP-MS verifies low degrees of metallic pollutants, while thermal conductivity and flexural strength are determined to confirm product consistency.
Crucibles are commonly subjected to simulated thermal cycling tests prior to delivery to identify possible failing settings.
Batch traceability and qualification are common in semiconductor and aerospace supply chains, where part failing can lead to costly manufacturing losses.
4. Applications and Technological Influence
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play an essential function in the production of high-purity silicon for both microelectronics and solar batteries.
In directional solidification furnaces for multicrystalline photovoltaic or pv ingots, big SiC crucibles function as the key container for molten silicon, withstanding temperatures over 1500 ° C for numerous cycles.
Their chemical inertness prevents contamination, while their thermal stability guarantees consistent solidification fronts, resulting in higher-quality wafers with fewer dislocations and grain boundaries.
Some producers layer the internal surface with silicon nitride or silica to better reduce adhesion and assist in ingot launch after cooling.
In research-scale Czochralski growth of compound semiconductors, smaller sized SiC crucibles are made use of to hold melts of GaAs, InSb, or CdTe, where minimal reactivity and dimensional security are critical.
4.2 Metallurgy, Factory, and Emerging Technologies
Beyond semiconductors, SiC crucibles are indispensable in steel refining, alloy prep work, and laboratory-scale melting operations entailing aluminum, copper, and rare-earth elements.
Their resistance to thermal shock and erosion makes them ideal for induction and resistance heaters in foundries, where they last longer than graphite and alumina alternatives by numerous cycles.
In additive manufacturing of responsive steels, SiC containers are made use of in vacuum induction melting to stop crucible failure and contamination.
Emerging applications include molten salt reactors and concentrated solar power systems, where SiC vessels may have high-temperature salts or liquid steels for thermal energy storage space.
With ongoing developments in sintering technology and coating engineering, SiC crucibles are poised to sustain next-generation materials processing, allowing cleaner, more efficient, and scalable industrial thermal systems.
In recap, silicon carbide crucibles represent an essential making it possible for modern technology in high-temperature material synthesis, incorporating phenomenal thermal, mechanical, and chemical performance in a solitary engineered component.
Their extensive adoption throughout semiconductor, solar, and metallurgical industries underscores their duty as a keystone of contemporary industrial porcelains.
