1. Product Basics and Crystal Chemistry
1.1 Make-up and Polymorphic Structure
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic compound composed of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its outstanding firmness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures varying in piling sequences– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technologically relevant.
The strong directional covalent bonds (Si– C bond power ~ 318 kJ/mol) lead to a high melting factor (~ 2700 ° C), reduced thermal development (~ 4.0 × 10 ⁻⁶/ K), and exceptional resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC lacks an indigenous glazed stage, contributing to its stability in oxidizing and destructive atmospheres approximately 1600 ° C.
Its wide bandgap (2.3– 3.3 eV, depending on polytype) likewise enhances it with semiconductor residential properties, making it possible for dual usage in structural and digital applications.
1.2 Sintering Obstacles and Densification Approaches
Pure SiC is exceptionally difficult to densify as a result of its covalent bonding and reduced self-diffusion coefficients, necessitating using sintering help or advanced handling strategies.
Reaction-bonded SiC (RB-SiC) is generated by infiltrating porous carbon preforms with liquified silicon, developing SiC sitting; this approach yields near-net-shape parts with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) utilizes boron and carbon ingredients to advertise densification at ~ 2000– 2200 ° C under inert ambience, attaining > 99% academic thickness and remarkable mechanical residential or commercial properties.
Liquid-phase sintered SiC (LPS-SiC) employs oxide additives such as Al ₂ O ₃– Y ₂ O FOUR, developing a transient fluid that boosts diffusion but might minimize high-temperature strength as a result of grain-boundary stages.
Warm pushing and spark plasma sintering (SPS) provide quick, pressure-assisted densification with fine microstructures, ideal for high-performance parts calling for marginal grain development.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Stamina, Firmness, and Put On Resistance
Silicon carbide porcelains exhibit Vickers solidity values of 25– 30 Grade point average, 2nd just to ruby and cubic boron nitride amongst engineering products.
Their flexural strength commonly ranges from 300 to 600 MPa, with fracture toughness (K_IC) of 3– 5 MPa · m ONE/ ²– moderate for porcelains yet enhanced via microstructural engineering such as hair or fiber support.
The mix of high hardness and elastic modulus (~ 410 Grade point average) makes SiC remarkably immune to unpleasant and erosive wear, outshining tungsten carbide and solidified steel in slurry and particle-laden settings.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC parts show service lives several times much longer than traditional options.
Its low density (~ 3.1 g/cm THREE) further adds to use resistance by lowering inertial forces in high-speed revolving parts.
2.2 Thermal Conductivity and Stability
Among SiC’s most distinct attributes is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline kinds, and up to 490 W/(m · K) for single-crystal 4H-SiC– going beyond most steels other than copper and light weight aluminum.
This property allows reliable heat dissipation in high-power electronic substrates, brake discs, and warmth exchanger parts.
Coupled with low thermal development, SiC shows exceptional thermal shock resistance, quantified by the R-parameter (σ(1– ν)k/ αE), where high worths suggest strength to rapid temperature level changes.

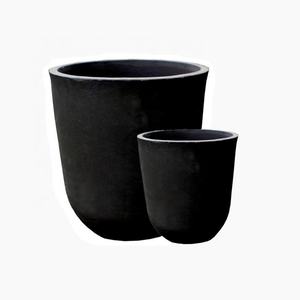

For example, SiC crucibles can be heated up from space temperature to 1400 ° C in minutes without breaking, a task unattainable for alumina or zirconia in comparable conditions.
In addition, SiC preserves toughness approximately 1400 ° C in inert environments, making it optimal for furnace components, kiln furnishings, and aerospace parts revealed to severe thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Habits in Oxidizing and Lowering Ambiences
At temperature levels listed below 800 ° C, SiC is highly secure in both oxidizing and minimizing settings.
Over 800 ° C in air, a safety silica (SiO TWO) layer forms on the surface through oxidation (SiC + 3/2 O TWO → SiO ₂ + CO), which passivates the material and slows additional deterioration.
Nonetheless, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)₄, causing increased economic crisis– an essential factor to consider in turbine and combustion applications.
In minimizing environments or inert gases, SiC remains secure up to its disintegration temperature (~ 2700 ° C), with no phase changes or toughness loss.
This security makes it suitable for liquified metal handling, such as light weight aluminum or zinc crucibles, where it stands up to moistening and chemical attack much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is basically inert to all acids except hydrofluoric acid (HF) and strong oxidizing acid mixes (e.g., HF– HNO FOUR).
It shows exceptional resistance to alkalis approximately 800 ° C, though prolonged direct exposure to thaw NaOH or KOH can cause surface area etching through formation of soluble silicates.
In liquified salt settings– such as those in concentrated solar power (CSP) or nuclear reactors– SiC demonstrates superior rust resistance contrasted to nickel-based superalloys.
This chemical effectiveness underpins its use in chemical procedure equipment, including shutoffs, liners, and heat exchanger tubes managing aggressive media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Emerging Frontiers
4.1 Established Uses in Energy, Protection, and Manufacturing
Silicon carbide ceramics are essential to countless high-value industrial systems.
In the power industry, they function as wear-resistant liners in coal gasifiers, parts in nuclear gas cladding (SiC/SiC composites), and substratums for high-temperature strong oxide fuel cells (SOFCs).
Protection applications include ballistic armor plates, where SiC’s high hardness-to-density ratio supplies remarkable protection against high-velocity projectiles contrasted to alumina or boron carbide at lower price.
In manufacturing, SiC is made use of for accuracy bearings, semiconductor wafer handling elements, and unpleasant blasting nozzles because of its dimensional security and pureness.
Its use in electric vehicle (EV) inverters as a semiconductor substrate is quickly growing, driven by efficiency gains from wide-bandgap electronics.
4.2 Next-Generation Advancements and Sustainability
Continuous research focuses on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which display pseudo-ductile actions, enhanced durability, and retained stamina over 1200 ° C– ideal for jet engines and hypersonic car leading edges.
Additive manufacturing of SiC via binder jetting or stereolithography is advancing, allowing intricate geometries previously unattainable with standard creating approaches.
From a sustainability point of view, SiC’s long life lowers replacement frequency and lifecycle emissions in commercial systems.
Recycling of SiC scrap from wafer slicing or grinding is being developed via thermal and chemical recovery procedures to recover high-purity SiC powder.
As industries push toward higher effectiveness, electrification, and extreme-environment procedure, silicon carbide-based ceramics will stay at the center of advanced materials design, connecting the void between structural resilience and useful convenience.
