1. Structure and Structural Qualities of Fused Quartz
1.1 Amorphous Network and Thermal Stability

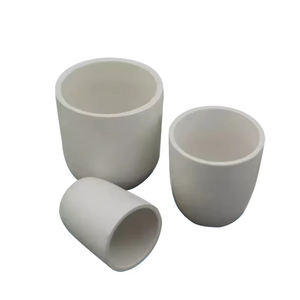

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from merged silica, a synthetic form of silicon dioxide (SiO TWO) stemmed from the melting of all-natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, fused silica possesses an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which conveys outstanding thermal shock resistance and dimensional stability under rapid temperature level modifications.
This disordered atomic framework protects against bosom along crystallographic airplanes, making merged silica much less susceptible to fracturing throughout thermal cycling contrasted to polycrystalline porcelains.
The product displays a low coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), one of the lowest among design materials, allowing it to withstand severe thermal gradients without fracturing– an essential home in semiconductor and solar cell production.
Fused silica likewise maintains exceptional chemical inertness versus many acids, molten metals, and slags, although it can be gradually etched by hydrofluoric acid and hot phosphoric acid.
Its high conditioning point (~ 1600– 1730 ° C, depending upon purity and OH web content) permits sustained operation at elevated temperature levels needed for crystal development and steel refining procedures.
1.2 Purity Grading and Micronutrient Control
The performance of quartz crucibles is very dependent on chemical purity, specifically the concentration of metallic impurities such as iron, salt, potassium, aluminum, and titanium.
Also trace amounts (parts per million degree) of these pollutants can migrate into molten silicon throughout crystal development, weakening the electric buildings of the resulting semiconductor material.
High-purity grades made use of in electronic devices making generally have over 99.95% SiO ₂, with alkali steel oxides limited to less than 10 ppm and transition steels below 1 ppm.
Pollutants originate from raw quartz feedstock or processing equipment and are reduced via mindful choice of mineral sources and purification techniques like acid leaching and flotation.
Furthermore, the hydroxyl (OH) content in integrated silica influences its thermomechanical habits; high-OH kinds supply far better UV transmission however reduced thermal security, while low-OH variants are favored for high-temperature applications due to reduced bubble development.

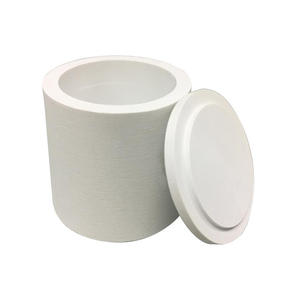

( Quartz Crucibles)
2. Production Process and Microstructural Layout
2.1 Electrofusion and Creating Methods
Quartz crucibles are primarily produced by means of electrofusion, a procedure in which high-purity quartz powder is fed right into a rotating graphite mold and mildew within an electrical arc heating system.
An electric arc created in between carbon electrodes thaws the quartz bits, which strengthen layer by layer to create a smooth, dense crucible shape.
This approach produces a fine-grained, homogeneous microstructure with very little bubbles and striae, necessary for uniform warm distribution and mechanical stability.
Alternate methods such as plasma blend and fire fusion are utilized for specialized applications needing ultra-low contamination or details wall surface thickness profiles.
After casting, the crucibles go through regulated cooling (annealing) to relieve interior tensions and prevent spontaneous cracking throughout solution.
Surface area completing, including grinding and brightening, guarantees dimensional accuracy and lowers nucleation sites for unwanted formation throughout usage.
2.2 Crystalline Layer Engineering and Opacity Control
A defining attribute of modern quartz crucibles, specifically those made use of in directional solidification of multicrystalline silicon, is the crafted internal layer framework.
During manufacturing, the internal surface area is frequently treated to advertise the formation of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon initial heating.
This cristobalite layer serves as a diffusion obstacle, reducing straight interaction in between molten silicon and the underlying merged silica, thereby lessening oxygen and metallic contamination.
In addition, the presence of this crystalline stage enhances opacity, boosting infrared radiation absorption and advertising even more uniform temperature level distribution within the thaw.
Crucible designers carefully balance the density and connection of this layer to prevent spalling or fracturing due to volume adjustments throughout phase changes.
3. Useful Efficiency in High-Temperature Applications
3.1 Function in Silicon Crystal Development Processes
Quartz crucibles are crucial in the manufacturing of monocrystalline and multicrystalline silicon, functioning as the key container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped right into liquified silicon held in a quartz crucible and slowly pulled upwards while rotating, allowing single-crystal ingots to form.
Although the crucible does not straight get in touch with the expanding crystal, communications between molten silicon and SiO ₂ walls lead to oxygen dissolution right into the thaw, which can impact service provider lifetime and mechanical strength in completed wafers.
In DS processes for photovoltaic-grade silicon, large quartz crucibles enable the controlled air conditioning of countless kgs of molten silicon right into block-shaped ingots.
Below, layers such as silicon nitride (Si six N ₄) are related to the inner surface area to avoid attachment and promote very easy launch of the strengthened silicon block after cooling.
3.2 Deterioration Systems and Life Span Limitations
Regardless of their effectiveness, quartz crucibles weaken during repeated high-temperature cycles as a result of several related mechanisms.
Thick circulation or contortion happens at extended direct exposure over 1400 ° C, bring about wall thinning and loss of geometric honesty.
Re-crystallization of integrated silica into cristobalite creates inner anxieties due to quantity development, potentially creating cracks or spallation that infect the thaw.
Chemical disintegration occurs from reduction responses between molten silicon and SiO ₂: SiO TWO + Si → 2SiO(g), producing unpredictable silicon monoxide that runs away and deteriorates the crucible wall.
Bubble development, driven by trapped gases or OH teams, further endangers architectural strength and thermal conductivity.
These deterioration paths restrict the number of reuse cycles and require precise process control to make the most of crucible life expectancy and product return.
4. Emerging Innovations and Technological Adaptations
4.1 Coatings and Composite Alterations
To boost performance and sturdiness, advanced quartz crucibles include practical finishings and composite structures.
Silicon-based anti-sticking layers and drugged silica coatings improve release characteristics and reduce oxygen outgassing during melting.
Some manufacturers integrate zirconia (ZrO TWO) bits into the crucible wall to enhance mechanical toughness and resistance to devitrification.
Research is continuous into totally transparent or gradient-structured crucibles developed to maximize induction heat transfer in next-generation solar furnace styles.
4.2 Sustainability and Recycling Challenges
With increasing need from the semiconductor and photovoltaic markets, sustainable use quartz crucibles has actually come to be a top priority.
Spent crucibles polluted with silicon deposit are tough to recycle due to cross-contamination threats, leading to significant waste generation.
Efforts focus on creating multiple-use crucible linings, enhanced cleansing methods, and closed-loop recycling systems to recover high-purity silica for secondary applications.
As tool efficiencies demand ever-higher product pureness, the duty of quartz crucibles will certainly continue to advance via technology in materials science and process design.
In summary, quartz crucibles stand for a vital user interface in between basic materials and high-performance electronic items.
Their one-of-a-kind mix of pureness, thermal strength, and architectural design makes it possible for the manufacture of silicon-based innovations that power contemporary computing and renewable resource systems.
