Introduction to Light Weight Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic material that has gained widespread recognition for its exceptional thermal conductivity, electric insulation, and mechanical stability at elevated temperature levels. With a hexagonal wurtzite crystal structure, AlN displays a special mix of buildings that make it one of the most optimal substrate product for applications in electronic devices, optoelectronics, power components, and high-temperature environments. Its capability to efficiently dissipate warmth while preserving exceptional dielectric toughness settings AlN as an exceptional alternative to traditional ceramic substratums such as alumina and beryllium oxide. This short article explores the basic attributes of aluminum nitride porcelains, looks into manufacture strategies, and highlights its essential duties throughout innovative technical domain names.

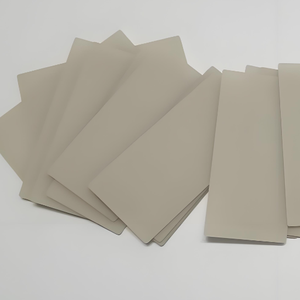

(Aluminum Nitride Ceramics)
Crystal Framework and Basic Characteristic
The performance of aluminum nitride as a substrate material is greatly dictated by its crystalline structure and inherent physical homes. AlN takes on a wurtzite-type latticework composed of alternating aluminum and nitrogen atoms, which adds to its high thermal conductivity– normally going beyond 180 W/(m · K), with some high-purity samples attaining over 320 W/(m · K). This worth considerably exceeds those of other widely used ceramic materials, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal efficiency, AlN possesses a vast bandgap of around 6.2 eV, resulting in excellent electrical insulation residential or commercial properties even at high temperatures. It likewise shows low thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which closely matches that of silicon and gallium arsenide, making it an optimum suit for semiconductor gadget packaging. In addition, AlN displays high chemical inertness and resistance to thaw metals, boosting its viability for extreme environments. These combined characteristics develop AlN as a top candidate for high-power electronic substrates and thermally managed systems.
Fabrication and Sintering Technologies
Making premium light weight aluminum nitride porcelains requires exact powder synthesis and sintering strategies to accomplish thick microstructures with marginal pollutants. Because of its covalent bonding nature, AlN does not conveniently densify through standard pressureless sintering. Therefore, sintering help such as yttrium oxide (Y ₂ O THREE), calcium oxide (CaO), or uncommon planet elements are usually contributed to advertise liquid-phase sintering and improve grain border diffusion.
The construction process typically starts with the carbothermal reduction of aluminum oxide in a nitrogen ambience to synthesize AlN powders. These powders are then grated, shaped using approaches like tape casting or shot molding, and sintered at temperatures in between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Warm pressing or trigger plasma sintering (SPS) can better boost thickness and thermal conductivity by decreasing porosity and advertising grain alignment. Advanced additive manufacturing techniques are likewise being checked out to fabricate complex-shaped AlN elements with tailored thermal monitoring capabilities.
Application in Electronic Packaging and Power Modules
One of the most noticeable uses of aluminum nitride ceramics is in electronic product packaging, specifically for high-power tools such as protected gateway bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power thickness raise in contemporary electronics, efficient warmth dissipation ends up being critical to ensure reliability and long life. AlN substrates give an ideal option by combining high thermal conductivity with superb electrical isolation, preventing short circuits and thermal runaway problems.
Moreover, AlN-based straight bonded copper (DBC) and active metal brazed (AMB) substrates are significantly used in power component designs for electric automobiles, renewable energy inverters, and commercial electric motor drives. Compared to conventional alumina or silicon nitride substrates, AlN offers faster warm transfer and much better compatibility with silicon chip coefficients of thermal development, therefore decreasing mechanical stress and anxiety and boosting general system efficiency. Ongoing research intends to boost the bonding toughness and metallization techniques on AlN surfaces to more broaden its application scope.
Usage in Optoelectronic and High-Temperature Tools
Beyond digital packaging, aluminum nitride porcelains play an essential duty in optoelectronic and high-temperature applications as a result of their openness to ultraviolet (UV) radiation and thermal stability. AlN is commonly used as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications requiring sanitation, noticing, and optical communication. Its vast bandgap and low absorption coefficient in the UV range make it an ideal prospect for sustaining light weight aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s capacity to function accurately at temperatures going beyond 1000 ° C makes it suitable for usage in sensors, thermoelectric generators, and components subjected to severe thermal loads. In aerospace and defense industries, AlN-based sensor bundles are used in jet engine monitoring systems and high-temperature control systems where traditional materials would certainly stop working. Continual improvements in thin-film deposition and epitaxial growth strategies are broadening the potential of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Ecological Security and Long-Term Integrity
A vital consideration for any type of substrate material is its long-term dependability under operational stresses. Light weight aluminum nitride demonstrates remarkable environmental stability contrasted to lots of other ceramics. It is very immune to deterioration from acids, alkalis, and molten metals, making sure longevity in aggressive chemical atmospheres. However, AlN is prone to hydrolysis when subjected to dampness at raised temperatures, which can degrade its surface area and reduce thermal performance.
To minimize this issue, protective coatings such as silicon nitride (Si four N FOUR), light weight aluminum oxide, or polymer-based encapsulation layers are usually related to enhance dampness resistance. In addition, cautious securing and product packaging methods are carried out during gadget assembly to maintain the stability of AlN substratums throughout their service life. As ecological guidelines come to be extra strict, the non-toxic nature of AlN additionally places it as a preferred choice to beryllium oxide, which presents health threats during handling and disposal.
Final thought
Aluminum nitride porcelains represent a class of innovative materials distinctly matched to attend to the growing needs for reliable thermal administration and electric insulation in high-performance digital and optoelectronic systems. Their phenomenal thermal conductivity, chemical stability, and compatibility with semiconductor innovations make them the most optimal substratum product for a variety of applications– from automobile power components to deep UV LEDs and high-temperature sensors. As construction modern technologies continue to progress and economical production techniques grow, the fostering of AlN substratums is expected to climb dramatically, driving advancement in next-generation digital and photonic devices.
