1. The Science and Framework of Alumina Porcelain Materials
1.1 Crystallography and Compositional Variations of Light Weight Aluminum Oxide

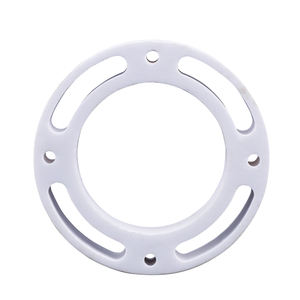

(Alumina Ceramics Rings)
Alumina ceramic rings are made from light weight aluminum oxide (Al two O FIVE), a substance renowned for its exceptional balance of mechanical strength, thermal security, and electric insulation.
The most thermodynamically stable and industrially pertinent stage of alumina is the alpha (α) phase, which crystallizes in a hexagonal close-packed (HCP) framework belonging to the diamond family.
In this plan, oxygen ions form a dense lattice with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial websites, resulting in a very stable and robust atomic structure.
While pure alumina is theoretically 100% Al Two O TWO, industrial-grade products frequently contain tiny percents of ingredients such as silica (SiO ₂), magnesia (MgO), or yttria (Y ₂ O TWO) to regulate grain growth during sintering and boost densification.
Alumina porcelains are classified by purity levels: 96%, 99%, and 99.8% Al Two O three prevail, with greater pureness associating to improved mechanical buildings, thermal conductivity, and chemical resistance.
The microstructure– particularly grain size, porosity, and stage distribution– plays a vital role in determining the final performance of alumina rings in solution environments.
1.2 Key Physical and Mechanical Feature
Alumina ceramic rings display a collection of buildings that make them vital popular industrial settings.
They possess high compressive stamina (as much as 3000 MPa), flexural toughness (generally 350– 500 MPa), and outstanding hardness (1500– 2000 HV), making it possible for resistance to use, abrasion, and contortion under tons.
Their low coefficient of thermal development (approximately 7– 8 × 10 ⁻⁶/ K) makes sure dimensional stability across wide temperature level ranges, minimizing thermal stress and cracking throughout thermal biking.
Thermal conductivity ranges from 20 to 30 W/m · K, depending upon purity, permitting modest warmth dissipation– enough for several high-temperature applications without the requirement for energetic air conditioning.

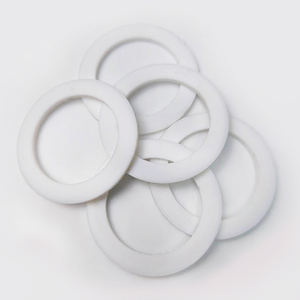

( Alumina Ceramics Ring)
Electrically, alumina is a superior insulator with a quantity resistivity exceeding 10 ¹⁴ Ω · cm and a dielectric toughness of around 10– 15 kV/mm, making it excellent for high-voltage insulation components.
In addition, alumina demonstrates exceptional resistance to chemical strike from acids, antacid, and molten steels, although it is vulnerable to assault by strong alkalis and hydrofluoric acid at elevated temperatures.
2. Manufacturing and Precision Engineering of Alumina Bands
2.1 Powder Handling and Forming Techniques
The manufacturing of high-performance alumina ceramic rings starts with the option and prep work of high-purity alumina powder.
Powders are usually manufactured by means of calcination of aluminum hydroxide or with progressed methods like sol-gel processing to accomplish fine particle size and narrow size circulation.
To create the ring geometry, several forming approaches are employed, consisting of:
Uniaxial pressing: where powder is compressed in a die under high stress to develop a “eco-friendly” ring.
Isostatic pushing: applying uniform pressure from all directions utilizing a fluid medium, leading to greater thickness and more consistent microstructure, especially for facility or large rings.
Extrusion: ideal for lengthy round kinds that are later on reduced into rings, commonly utilized for lower-precision applications.
Shot molding: made use of for detailed geometries and limited resistances, where alumina powder is blended with a polymer binder and injected right into a mold.
Each method affects the final thickness, grain placement, and problem distribution, requiring cautious procedure option based upon application needs.
2.2 Sintering and Microstructural Growth
After forming, the environment-friendly rings undertake high-temperature sintering, usually in between 1500 ° C and 1700 ° C in air or regulated atmospheres.
Throughout sintering, diffusion mechanisms drive particle coalescence, pore elimination, and grain growth, bring about a fully dense ceramic body.
The price of home heating, holding time, and cooling down profile are exactly regulated to stop breaking, bending, or overstated grain growth.
Additives such as MgO are commonly presented to prevent grain border movement, leading to a fine-grained microstructure that enhances mechanical strength and dependability.
Post-sintering, alumina rings might undergo grinding and splashing to attain limited dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface coatings (Ra < 0.1 µm), critical for securing, bearing, and electrical insulation applications.
3. Practical Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are widely made use of in mechanical systems as a result of their wear resistance and dimensional stability.
Key applications include:
Securing rings in pumps and shutoffs, where they withstand disintegration from rough slurries and harsh fluids in chemical processing and oil & gas markets.
Bearing components in high-speed or harsh atmospheres where metal bearings would certainly deteriorate or call for constant lubrication.
Guide rings and bushings in automation equipment, supplying low rubbing and lengthy life span without the requirement for greasing.
Wear rings in compressors and wind turbines, minimizing clearance between turning and stationary components under high-pressure conditions.
Their capacity to preserve performance in dry or chemically hostile environments makes them above lots of metal and polymer options.
3.2 Thermal and Electric Insulation Duties
In high-temperature and high-voltage systems, alumina rings serve as crucial insulating components.
They are used as:
Insulators in heating elements and heating system parts, where they support repellent wires while holding up against temperature levels over 1400 ° C.
Feedthrough insulators in vacuum and plasma systems, preventing electrical arcing while maintaining hermetic seals.
Spacers and support rings in power electronics and switchgear, separating conductive components in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave gadgets, where their reduced dielectric loss and high breakdown stamina guarantee signal integrity.
The combination of high dielectric strength and thermal security enables alumina rings to work dependably in environments where natural insulators would certainly degrade.
4. Product Innovations and Future Outlook
4.1 Composite and Doped Alumina Solutions
To additionally enhance efficiency, scientists and producers are creating sophisticated alumina-based compounds.
Examples include:
Alumina-zirconia (Al ₂ O ₃-ZrO TWO) compounds, which exhibit improved fracture sturdiness via makeover toughening mechanisms.
Alumina-silicon carbide (Al ₂ O FOUR-SiC) nanocomposites, where nano-sized SiC fragments enhance solidity, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can customize grain border chemistry to enhance high-temperature stamina and oxidation resistance.
These hybrid products expand the functional envelope of alumina rings right into more severe conditions, such as high-stress vibrant loading or quick thermal cycling.
4.2 Emerging Fads and Technological Integration
The future of alumina ceramic rings hinges on smart integration and precision manufacturing.
Patterns include:
Additive manufacturing (3D printing) of alumina parts, making it possible for intricate interior geometries and customized ring designs formerly unattainable with standard approaches.
Practical grading, where make-up or microstructure differs throughout the ring to optimize performance in different areas (e.g., wear-resistant external layer with thermally conductive core).
In-situ surveillance by means of embedded sensors in ceramic rings for anticipating upkeep in industrial equipment.
Raised usage in renewable energy systems, such as high-temperature gas cells and concentrated solar energy plants, where product integrity under thermal and chemical tension is paramount.
As sectors require greater efficiency, longer life expectancies, and reduced maintenance, alumina ceramic rings will continue to play a pivotal duty in enabling next-generation design remedies.
