1. Basic Structure and Product Make-up
1.1 The Nanoscale Design of Aerogels

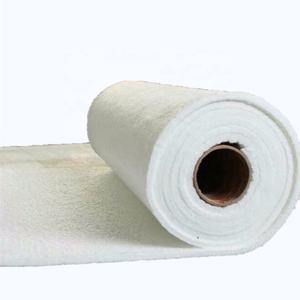

(Aerogel Blanket)
Aerogel coverings are innovative thermal insulation materials built on a special nanostructured structure, where a strong silica or polymer network spans an ultra-high porosity quantity– usually going beyond 90% air.
This framework originates from the sol-gel process, in which a fluid precursor (often tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to develop a damp gel, adhered to by supercritical or ambient pressure drying to eliminate the liquid without falling down the delicate permeable network.
The resulting aerogel consists of interconnected nanoparticles (3– 5 nm in size) developing pores on the range of 10– 50 nm, little sufficient to reduce air molecule motion and hence lessen conductive and convective heat transfer.
This phenomenon, referred to as Knudsen diffusion, dramatically decreases the efficient thermal conductivity of the material, frequently to worths between 0.012 and 0.018 W/(m · K) at room temperature level– amongst the lowest of any type of strong insulator.
Despite their low density (as reduced as 0.003 g/cm FOUR), pure aerogels are inherently fragile, demanding reinforcement for useful usage in adaptable blanket form.
1.2 Reinforcement and Composite Design
To get rid of delicacy, aerogel powders or monoliths are mechanically incorporated right into coarse substrates such as glass fiber, polyester, or aramid felts, developing a composite “covering” that keeps remarkable insulation while obtaining mechanical toughness.
The enhancing matrix gives tensile toughness, adaptability, and managing resilience, enabling the product to be reduced, curved, and mounted in complicated geometries without considerable performance loss.
Fiber material generally ranges from 5% to 20% by weight, very carefully stabilized to lessen thermal connecting– where fibers perform warmth across the covering– while ensuring structural stability.
Some advanced styles incorporate hydrophobic surface therapies (e.g., trimethylsilyl groups) to stop dampness absorption, which can break down insulation efficiency and advertise microbial development.
These alterations allow aerogel blankets to keep secure thermal buildings even in humid settings, broadening their applicability beyond controlled research laboratory conditions.
2. Manufacturing Processes and Scalability

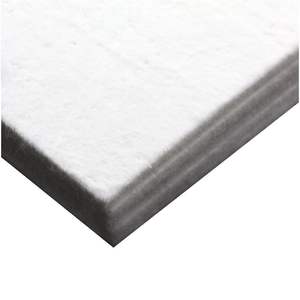

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Manufacturing
The production of aerogel coverings starts with the formation of a wet gel within a coarse floor covering, either by fertilizing the substratum with a liquid forerunner or by co-forming the gel and fiber network simultaneously.
After gelation, the solvent must be eliminated under conditions that protect against capillary stress from collapsing the nanopores; traditionally, this called for supercritical CO two drying out, a costly and energy-intensive process.
Current developments have made it possible for ambient pressure drying through surface area alteration and solvent exchange, considerably reducing production costs and enabling continual roll-to-roll production.
In this scalable process, lengthy rolls of fiber mat are continually coated with forerunner solution, gelled, dried, and surface-treated, allowing high-volume result ideal for commercial applications.
This shift has been pivotal in transitioning aerogel coverings from particular niche research laboratory materials to readily practical products utilized in building and construction, energy, and transport markets.
2.2 Quality Assurance and Performance Consistency
Making sure consistent pore structure, regular density, and reputable thermal performance throughout huge manufacturing sets is crucial for real-world release.
Suppliers use strenuous quality assurance actions, consisting of laser scanning for density variant, infrared thermography for thermal mapping, and gravimetric evaluation for wetness resistance.
Batch-to-batch reproducibility is important, particularly in aerospace and oil & gas sectors, where failure because of insulation breakdown can have severe effects.
Furthermore, standardized screening according to ASTM C177 (heat circulation meter) or ISO 9288 makes sure exact coverage of thermal conductivity and enables fair contrast with conventional insulators like mineral woollen or foam.
3. Thermal and Multifunctional Feature
3.1 Superior Insulation Across Temperature Varies
Aerogel coverings show exceptional thermal efficiency not only at ambient temperatures but likewise across extreme ranges– from cryogenic conditions listed below -100 ° C to high temperatures surpassing 600 ° C, depending on the base material and fiber type.
At cryogenic temperature levels, standard foams might fracture or shed performance, whereas aerogel coverings remain versatile and maintain reduced thermal conductivity, making them optimal for LNG pipes and storage tanks.
In high-temperature applications, such as commercial heaters or exhaust systems, they supply reliable insulation with decreased density contrasted to bulkier options, conserving space and weight.
Their low emissivity and capacity to show radiant heat better improve performance in glowing barrier arrangements.
This large functional envelope makes aerogel coverings distinctively versatile amongst thermal administration remedies.
3.2 Acoustic and Fireproof Qualities
Beyond thermal insulation, aerogel coverings show significant sound-dampening homes due to their open, tortuous pore framework that dissipates acoustic power via thick losses.
They are progressively made use of in vehicle and aerospace cabins to decrease noise pollution without including considerable mass.
Furthermore, most silica-based aerogel blankets are non-combustible, accomplishing Course A fire ratings, and do not release harmful fumes when revealed to fire– crucial for developing safety and public facilities.
Their smoke thickness is exceptionally reduced, enhancing exposure throughout emergency discharges.
4. Applications in Market and Emerging Technologies
4.1 Energy Effectiveness in Structure and Industrial Equipment
Aerogel blankets are changing energy performance in architecture and industrial design by allowing thinner, higher-performance insulation layers.
In buildings, they are made use of in retrofitting historic structures where wall surface thickness can not be boosted, or in high-performance façades and windows to lessen thermal connecting.
In oil and gas, they shield pipes carrying hot liquids or cryogenic LNG, reducing power loss and stopping condensation or ice development.
Their light-weight nature also lowers structural lots, particularly helpful in offshore platforms and mobile devices.
4.2 Aerospace, Automotive, and Customer Applications
In aerospace, aerogel coverings safeguard spacecraft from extreme temperature level variations throughout re-entry and shield sensitive tools from thermal biking precede.
NASA has employed them in Mars rovers and astronaut suits for passive thermal guideline.
Automotive makers incorporate aerogel insulation into electrical car battery loads to prevent thermal runaway and improve security and performance.
Customer products, consisting of outdoor clothing, footwear, and outdoor camping gear, now feature aerogel linings for exceptional warmth without mass.
As production prices decline and sustainability boosts, aerogel blankets are positioned to come to be mainstream solutions in international efforts to lower energy consumption and carbon emissions.
Finally, aerogel coverings stand for a merging of nanotechnology and useful design, providing unequaled thermal efficiency in a versatile, sturdy layout.
Their capacity to save energy, room, and weight while maintaining security and environmental compatibility positions them as crucial enablers of lasting technology across diverse fields.
