(Titanium Dioxide)

Every white wall, every sunscreen bottle, every shiny magazine web page shares a key that lots of people never ever find. The white pigment that shades our globe is not a solitary compound however 2 entirely different materials using the exact same chemical mask. Titanium dioxide, the most extensively used white pigment on Earth, exists in two crystal types that might not be extra different if they attempted. Same formula, exact same atoms, very same white powder appearance. Yet one type scatters light like a mirror while the various other breaks down air pollution like a chemical military. One lasts for years under the ruthless sunlight while the other changes and develops under heat. This duality is not a manufacturing accident. It is nature’s gift to materials science, and comprehending it has actually ended up being the structure of whatever we do at NanoTrun. The story of titanium dioxide is the story of two crystals defending prominence in every application, and the story of our brand is the story of learning to harness both.

2. The Exploration That Transformed Every Little Thing

Our trip started not in a research laboratory however in a question that had puzzled scientists for generations. Why does the same chemical substance generate such different outcomes? When titanium dioxide was first synthesized in the late 19th century, no person comprehended that they were dealing with two different crystal structures. The white powder they created was just white powder. But as applications increased and failures mounted, a pattern arised. Some batches of titanium dioxide developed fantastic white paints that lasted for years. Other sets, made by the very same process, generated paints that yellowed and fractured within months. Some samples exhibited unusual photocatalytic residential properties that appeared to tidy surface areas. Others stayed inert and passive. The secret of titanium dioxide taken in years of research study. By the mid-twentieth century, X-ray crystallography ultimately disclosed the fact. The atoms in titanium dioxide can organize themselves in two basically different ways. Anatase, with its open, roomy latticework, enabled light and electrons to relocate openly. Rutile, with its dense, tightly packed structure, spread light with unmatched performance and stood up to every little thing the atmosphere can throw at it. This exploration was not merely scholastic. It was the trick that unlocked truth potential of titanium dioxide. For the very first time, scientists could pick the right crystal kind for the best application rather than presuming and hoping. At NanoTrun, we built our entire viewpoint around this selection.

3. From Mineral to Masterpiece

(Titanium Dioxide)

The transformation of titanium dioxide from raw mineral to crafted material is just one of one of the most exceptional commercial processes ever developed. Titanium dioxide does not emerge from the ground on-line. It has to be removed, fine-tuned, and converted into its last crystal kind through processes that demand accuracy at every action. The sulfate process and the chloride procedure are both primary courses to titanium dioxide production, each with its very own benefits and challenges. Yet the actual art lies not in extraction but in control. Managing the crystal framework of titanium dioxide needs comprehending the thermodynamics that control its development. Anatase is the metastable form, the crystal that exists due to the fact that it is kinetically favored at reduced temperatures. Heat it above around 6 hundred levels Celsius, and anatase undertakes an irreversible change right into rutile. This makeover is one-way. Rutile, once formed, continues to be rutile for life. This solitary reality shapes the entire titanium dioxide industry. For applications that need the photocatalytic activity of anatase, producers have to thoroughly regulate temperature levels to stop early change. For applications that require the durability and hiding power of rutile, producers intentionally drive the improvement to conclusion. At NanoTrun, we have actually grasped both courses. Our production facilities can create high-purity anatase with specifically managed fragment size, rutile with unequaled opacity, and also mixed-phase products that incorporate the very best of both globes. The gas-phase synthesis technique we employ for our fumed titanium dioxide products creates nanoparticles with anatase and rutile existing side-by-side in the same particle, a task that calls for nanometer-level control over temperature, home time, and precursor concentration. This is not chemistry. This is art.

4. The Crystal That Cleanses the World

Anatase titanium dioxide carries a power that couple of products can match. When revealed to ultraviolet light, anatase produces electron-hole pairs that react with water and oxygen to create extremely responsive varieties. These varieties– hydroxyl radicals and superoxide ions– are chemical tools that break down natural pollutants, kill bacteria, and decay volatile organic substances with fierce efficiency. This is photocatalysis, and anatase is its undisputed champion. The open crystal framework of anatase allows photogenerated fee carriers to reach the surface quicker than in any kind of various other titanium dioxide type. This implies more responses, faster degradation, and better performance in real-world problems. We have actually seen anatase titanium dioxide transform structures into air-purifying machines. Coatings consisting of anatase on building facades continually damage down nitrogen oxides from automobile exhaust, decreasing smoke formation in metropolitan settings. We have actually seen anatase titanium dioxide in self-cleaning glass that remains clear without chemical cleaners, breaking down organic dirt imaginable’s rays. We have actually seen anatase titanium dioxide in water therapy systems that ruin pharmaceutical residues and pesticides that conventional techniques can not touch. We have actually seen anatase titanium dioxide in medical care facilities offering passive antimicrobial protection that never ever wears out and never ever calls for reapplication. The applications are as diverse as the pollutants they fight. Indoor air top quality, wastewater treatment, food security, and even next-generation solar cells all gain from the unique residential or commercial properties of anatase titanium dioxide. Yet anatase has a weak point. Its photocatalytic activity, so useful in regulated applications, comes to be a responsibility when titanium dioxide is made use of as a pigment. The same responsive species that break down toxins additionally assault the natural binders in paints and coverings, creating chalking, yellowing, and early failure. This is why anatase titanium dioxide, in spite of its impressive photocatalytic buildings, can not work as a pigment for outdoor applications. The actual top quality that makes it a hero in one context makes it a bad guy in another. This is the duality of titanium dioxide, and it is the reason our operate at NanoTrun matters.

5. The Crystal That Shields the World

Rutile titanium dioxide takes a different approach to protecting our world. Rather than assaulting pollutants, rutile defends surfaces from degradation. Its thick, snugly loaded crystal structure provides it the highest refractive index of any white pigment, permitting it to spread light with phenomenal effectiveness. This is hiding power, the capacity to provide opacity and whiteness with minimal product. Suppliers that pick rutile titanium dioxide accomplish the same protection with less pigment, reducing costs and boosting formulation versatility. Yet concealing power is only the start. Rutile titanium dioxide absorbs ultraviolet radiation, safeguarding the underlying substrate from photodegradation. In outside paints, this suggests longer life, better shade retention, and minimized upkeep. In plastics, this suggests items that resist yellowing and embrittlement under sunlight. In sunscreens, this implies broad-spectrum UV security that maintains skin safe from damage. The chemical security of rutile titanium dioxide is equally impressive. It stands up to strike by acids, antacid, and many solvents, making it suitable for the most demanding applications. Marine coatings, commercial flooring paints, automotive finishes, and architectural coatings all rely on rutile titanium dioxide for their performance and longevity. When you see a white wall surface that remains white for years, you are seeing rutile titanium dioxide at the office. When you see a white plastic component that withstands yellowing year after year, you are seeing rutile titanium dioxide at work. When you see a sunscreen that supplies trusted UV security, you are seeing rutile titanium dioxide at the office. The prominence of rutile titanium dioxide in the pigment market is not accidental. It is the outcome of unrivaled efficiency throughout the properties that matter most to formulators and end users. Yet rutile has its own constraints. Its thick framework, so beneficial for durability, reduces photocatalytic activity to minimal levels. Rutile titanium dioxide can not clean air, break down contaminants, or provide antimicrobial security. It is a guard, not a sword. This is not a weakness. It is a field of expertise, and comprehending this specialization is vital to choosing the best titanium dioxide for any type of application. At NanoTrun, we help our consumers make this option on a daily basis.

6. The Power of Two Crystals Collaborating

(Titanium Dioxide)

The most interesting advancement in titanium dioxide science is neither pure anatase neither pure rutile however the combination of both. When anatase and rutile coexist in the same bit, something amazing occurs at the interface between the two crystal phases. The joint functions as a path where photogenerated electrons transfer from anatase to rutile, decreasing fee recombination and raising overall photocatalytic performance. This is the synergistic effect, and it has actually transformed our understanding of what titanium dioxide can accomplish. Study on flame-synthesized titanium dioxide nanoparticles has verified that blended anatase-rutile phases show a lot higher activity in photocatalytic reactions than either phase alone. The user interface between the crystals efficiently separates fee service providers, enabling more of them to join beneficial responses instead of recombining and squandering their energy. Our TR-AT 50 item exhibits this strategy. With anatase and rutile existing together in a ratio optimized through years of academic research study, TR-AT 50 provides photocatalytic efficiency that exceeds what either crystal type can attain separately. The certain anatase-to-rutile ratio in TR-AT 50 very closely matches the composition that research has determined as providing the best photocatalytic performance. This is not an arbitrary formulation. It is the outcome of organized study into the optimum equilibrium in between anatase and rutile. The mixed crystal approach expands beyond basic combinations. Our gas-phase synthesis method generates nanoparticles where anatase and rutile are totally mixed at the nanometer scale, developing interfaces throughout the particle quantity. This takes full advantage of the collaborating impact and delivers performance that homogeneous materials can not match. The applications of blended crystal titanium dioxide are expanding quickly. Air filtration, water treatment, self-cleaning surfaces, and antimicrobial coverings all gain from the improved activity of mixed-phase products. As we continue to fine-tune our synthesis techniques and maximize our crystal proportions, we expect mixed crystal titanium dioxide to play an increasingly crucial duty in ecological removal and sustainable modern technology. The future of titanium dioxide is not a selection in between anatase and rutile. It is the integration of both.

7. From Our Laboratory to Your Sector

NanoTrun did not end up being a leader in titanium dioxide by accident. We invested years in recognizing the crystal chemistry that governs anatase and rutile development. We built production centers efficient in regulating crystal structure at the atomic level. We developed analytical techniques to identify particle dimension, crystal stage, and surface area chemistry with extraordinary precision. And we paid attention to our customers, learning the specific obstacles they dealt with in their markets. The paint maker battling with exterior toughness. The construction company seeking self-cleaning building products. The water therapy plant needing to eliminate arising impurities. The health care center requiring passive antimicrobial protection. Each consumer presented a special trouble, and each issue called for an one-of-a-kind titanium dioxide service. Sometimes the response was high-purity anatase with controlled photocatalytic activity. Occasionally the response was rutile with maximum concealing power and weather condition resistance. Occasionally the solution was a combined crystal product combining the best of both globes. We do not supply a solitary product and case it resolves every problem. We offer a profile of titanium dioxide products, each maximized for specific applications, and we work with our consumers to select the appropriate product for their requirements. This customer-centric approach has actually made us the depend on of suppliers worldwide. From Europe to Asia, from North America to the Middle East, business count on NanoTrun titanium dioxide to supply constant performance batch after set. Our quality assurance systems guarantee that every shipment satisfies the specs our consumers require. Our technological assistance group assists customers incorporate our items into their formulas. Our r & d group continuously improves our products and establishes new ones to meet arising demands. This is not just a service. It is a partnership.

8. The Worldwide Footprint of Titanium Dioxide

Titanium dioxide touches nearly every industry on Earth. The paint and finishes industry eats the largest share, making use of titanium dioxide to supply whiteness, opacity, and longevity to building, auto, and industrial finishings. The plastics sector makes use of titanium dioxide to shade and shield whatever from product packaging to auto components to durable goods. The paper industry utilizes titanium dioxide to generate brilliant, nontransparent paper items. The cosmetics sector uses titanium dioxide in sun blocks, foundations, and other individual care items. The building market utilizes titanium dioxide in self-cleaning glass, photocatalytic concrete, and air-purifying structure products. The water treatment market uses titanium dioxide in advanced oxidation processes that damage emerging impurities. The health care industry makes use of titanium dioxide in antimicrobial coverings for healthcare facilities and centers. The total global market for titanium dioxide surpasses twenty billion bucks annually, and need continues to grow as brand-new applications emerge. This growth is driven by the unique residential properties of titanium dioxide that no other product can reproduce. No other white pigment offers the mix of refractive index, chemical security, and UV absorption that rutile supplies. Nothing else photocatalyst uses the mix of task, security, and nontoxicity that anatase supplies. No other product can be crafted to change in between these roles based upon crystal structure and synthesis method. Titanium dioxide is irreplaceable, and its importance to modern industry will just enhance as ecological guidelines tighten up and sustainability becomes a lot more vital. At NanoTrun, we are pleased to play a role in this international market, offering top quality titanium dioxide items that enable our clients to develop better products and a far better globe. Our reach prolongs across continents, and our online reputation for high quality and dependability has made us a favored provider to some of the biggest suppliers on the planet. However we never forget that our success depends upon the success of our consumers. When they succeed, we succeed.

9. The Science That Drives United States Forward

(Titanium Dioxide)

The science of titanium dioxide is much from total. Researchers around the world remain to find brand-new buildings and new applications for this remarkable product. Doping titanium dioxide with various other elements can prolong its photocatalytic activity right into the visible light range, making it useful under indoor illumination conditions. Developing titanium dioxide nanostructures with controlled morphology can enhance its efficiency in solar batteries and battery electrodes. Establishing titanium dioxide composites with various other products can create multifunctional coatings that incorporate photocatalytic activity with other homes. The pace of exploration is increasing, and the industrial applications of these discoveries are broadening swiftly. At NanoTrun, we invest greatly in research and development to remain at the forefront of titanium dioxide science. Our R&D team works carefully with scholastic companions to check out new synthesis methods, brand-new crystal frameworks, and brand-new applications. We have actually submitted licenses on unique titanium dioxide solutions and synthesis processes. We have published documents in peer-reviewed journals and presented our findings at international seminars. This dedication to scientific research is not nearly remaining affordable. It is about progressing the field and developing worth for our consumers. Our company believe that the best means to offer our clients is to comprehend titanium dioxide far better than any individual else, and that indicates continuous financial investment in research, analysis, and development. The titanium dioxide of tomorrow will be different from the titanium dioxide of today. It will be a lot more active, much more secure, extra discerning, and extra sustainable. It will make it possible for applications we can not yet visualize. And NanoTrun will be there, blazing a trail.

10. What We Believe

Titanium dioxide is greater than a chemical compound. It is a device for building a better world. The white pigment that shades our wall surfaces shields them from destruction. The photocatalyst that cleans our air breaks down pollutants that damage our health. The UV filter that shields our skin avoids damages that brings about cancer cells. These are not small points. They are the foundations of modern-day life, and they rely on the option between anatase and rutile. At NanoTrun, our team believe that picking the appropriate titanium dioxide for the ideal application is one of the most crucial decision a formulator can make. We believe that recognizing the crystal framework of titanium dioxide is important to opening its full capacity. Our team believe that innovation in titanium dioxide synthesis and application will certainly drive progress in ecological remediation, sustainable power, and public health. And our company believe that our duty is to provide the best quality titanium dioxide items and the deepest technological know-how to aid our customers prosper. These ideas lead every little thing we do, from our research and development to our customer support to our commitment to sustainability. We are not simply a supplier of titanium dioxide. We are a partner underway.

The Words of Our Creator

Roger Luo, Ceo of NanoTrun, reflects on the trip that created this business. I started NanoTrun because I saw that titanium dioxide might transform the globe if we found out to regulate its crystal forms. We have done that, and we are simply beginning.

()

11. Supplier

TRUNNANO is a globally recognized Molybdenum Disulfide manufacturer and supplier of compounds with more than 12 years of expertise in the highest quality nanomaterials and other chemicals. The company develops a variety of powder materials and chemicals. Provide OEM service. If you need high quality Molybdenum Disulfide, please feel free to contact us. You can click on the product to contact us.
Tags: titanium dioxide,titanium titanium dioxide, TiO2

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Anatase, Rutile, and Brookite: Structural and Digital Differences

( Titanium Dioxide)

Titanium dioxide (TiO ₂) is a normally happening steel oxide that exists in 3 key crystalline forms: rutile, anatase, and brookite, each displaying unique atomic plans and digital residential properties regardless of sharing the same chemical formula.

Rutile, the most thermodynamically secure phase, features a tetragonal crystal framework where titanium atoms are octahedrally collaborated by oxygen atoms in a dense, direct chain configuration along the c-axis, causing high refractive index and superb chemical security.

Anatase, likewise tetragonal but with a much more open structure, has corner- and edge-sharing TiO ₆ octahedra, bring about a higher surface area energy and greater photocatalytic activity due to improved fee carrier wheelchair and lowered electron-hole recombination prices.

Brookite, the least common and most challenging to synthesize stage, takes on an orthorhombic structure with complicated octahedral tilting, and while much less examined, it reveals intermediate homes between anatase and rutile with arising rate of interest in crossbreed systems.

The bandgap powers of these phases differ somewhat: rutile has a bandgap of around 3.0 eV, anatase around 3.2 eV, and brookite regarding 3.3 eV, influencing their light absorption qualities and suitability for specific photochemical applications.

Phase stability is temperature-dependent; anatase generally changes irreversibly to rutile over 600– 800 ° C, a change that should be managed in high-temperature handling to maintain desired functional buildings.

1.2 Defect Chemistry and Doping Techniques

The functional adaptability of TiO ₂ develops not only from its intrinsic crystallography but also from its capability to suit factor problems and dopants that customize its digital structure.

Oxygen jobs and titanium interstitials work as n-type benefactors, boosting electrical conductivity and producing mid-gap states that can influence optical absorption and catalytic activity.

Controlled doping with steel cations (e.g., Fe FOUR ⁺, Cr ³ ⁺, V FOUR ⁺) or non-metal anions (e.g., N, S, C) tightens the bandgap by introducing pollutant levels, allowing visible-light activation– an important improvement for solar-driven applications.

As an example, nitrogen doping changes lattice oxygen websites, developing local states above the valence band that enable excitation by photons with wavelengths up to 550 nm, dramatically broadening the usable part of the solar range.

These alterations are crucial for overcoming TiO ₂’s key constraint: its large bandgap restricts photoactivity to the ultraviolet region, which constitutes just around 4– 5% of incident sunlight.

( Titanium Dioxide)

2. Synthesis Methods and Morphological Control

2.1 Conventional and Advanced Manufacture Techniques

Titanium dioxide can be manufactured with a range of techniques, each offering different levels of control over phase pureness, fragment size, and morphology.

The sulfate and chloride (chlorination) processes are large commercial courses made use of largely for pigment manufacturing, entailing the food digestion of ilmenite or titanium slag complied with by hydrolysis or oxidation to produce fine TiO ₂ powders.

For practical applications, wet-chemical techniques such as sol-gel handling, hydrothermal synthesis, and solvothermal courses are favored due to their ability to create nanostructured materials with high surface area and tunable crystallinity.

Sol-gel synthesis, beginning with titanium alkoxides like titanium isopropoxide, permits specific stoichiometric control and the development of thin movies, pillars, or nanoparticles with hydrolysis and polycondensation responses.

Hydrothermal methods make it possible for the growth of well-defined nanostructures– such as nanotubes, nanorods, and ordered microspheres– by controlling temperature, pressure, and pH in liquid settings, typically utilizing mineralizers like NaOH to advertise anisotropic growth.

2.2 Nanostructuring and Heterojunction Design

The performance of TiO ₂ in photocatalysis and energy conversion is very dependent on morphology.

One-dimensional nanostructures, such as nanotubes formed by anodization of titanium metal, provide straight electron transport paths and big surface-to-volume ratios, enhancing charge separation performance.

Two-dimensional nanosheets, particularly those exposing high-energy 001 elements in anatase, show exceptional reactivity due to a greater density of undercoordinated titanium atoms that function as active sites for redox responses.

To better boost efficiency, TiO two is typically incorporated right into heterojunction systems with other semiconductors (e.g., g-C four N FOUR, CdS, WO SIX) or conductive supports like graphene and carbon nanotubes.

These compounds facilitate spatial separation of photogenerated electrons and holes, decrease recombination losses, and prolong light absorption into the visible variety via sensitization or band positioning impacts.

3. Practical Characteristics and Surface Area Sensitivity

3.1 Photocatalytic Mechanisms and Environmental Applications

The most celebrated residential or commercial property of TiO ₂ is its photocatalytic task under UV irradiation, which enables the destruction of natural pollutants, bacterial inactivation, and air and water filtration.

Upon photon absorption, electrons are thrilled from the valence band to the conduction band, leaving openings that are powerful oxidizing agents.

These cost providers react with surface-adsorbed water and oxygen to create reactive oxygen types (ROS) such as hydroxyl radicals (- OH), superoxide anions (- O ₂ ⁻), and hydrogen peroxide (H TWO O TWO), which non-selectively oxidize natural pollutants right into CO ₂, H TWO O, and mineral acids.

This system is exploited in self-cleaning surface areas, where TiO ₂-coated glass or tiles break down organic dust and biofilms under sunshine, and in wastewater therapy systems targeting dyes, pharmaceuticals, and endocrine disruptors.

Furthermore, TiO ₂-based photocatalysts are being established for air purification, eliminating unstable natural substances (VOCs) and nitrogen oxides (NOₓ) from indoor and metropolitan settings.

3.2 Optical Scattering and Pigment Capability

Past its responsive residential properties, TiO ₂ is the most extensively used white pigment on the planet because of its exceptional refractive index (~ 2.7 for rutile), which makes it possible for high opacity and brightness in paints, finishings, plastics, paper, and cosmetics.

The pigment functions by spreading visible light effectively; when fragment size is maximized to approximately half the wavelength of light (~ 200– 300 nm), Mie scattering is made best use of, leading to exceptional hiding power.

Surface area treatments with silica, alumina, or natural layers are applied to boost diffusion, lower photocatalytic activity (to stop destruction of the host matrix), and boost sturdiness in outside applications.

In sun blocks, nano-sized TiO two supplies broad-spectrum UV defense by scattering and taking in unsafe UVA and UVB radiation while remaining clear in the visible array, offering a physical barrier without the threats related to some natural UV filters.

4. Arising Applications in Energy and Smart Products

4.1 Duty in Solar Power Conversion and Storage Space

Titanium dioxide plays a pivotal duty in renewable resource technologies, most significantly in dye-sensitized solar batteries (DSSCs) and perovskite solar batteries (PSCs).

In DSSCs, a mesoporous movie of nanocrystalline anatase acts as an electron-transport layer, accepting photoexcited electrons from a color sensitizer and performing them to the external circuit, while its large bandgap ensures minimal parasitic absorption.

In PSCs, TiO two works as the electron-selective contact, facilitating charge extraction and boosting device security, although research study is recurring to replace it with less photoactive options to enhance durability.

TiO ₂ is also checked out in photoelectrochemical (PEC) water splitting systems, where it functions as a photoanode to oxidize water into oxygen, protons, and electrons under UV light, adding to environment-friendly hydrogen manufacturing.

4.2 Combination right into Smart Coatings and Biomedical Instruments

Ingenious applications include smart windows with self-cleaning and anti-fogging capacities, where TiO ₂ layers reply to light and moisture to maintain openness and hygiene.

In biomedicine, TiO two is checked out for biosensing, medicine shipment, and antimicrobial implants due to its biocompatibility, stability, and photo-triggered reactivity.

For instance, TiO two nanotubes grown on titanium implants can promote osteointegration while giving localized anti-bacterial action under light exposure.

In recap, titanium dioxide exemplifies the convergence of basic products scientific research with functional technical advancement.

Its unique mix of optical, digital, and surface chemical residential or commercial properties allows applications ranging from daily consumer items to sophisticated ecological and power systems.

As research study advances in nanostructuring, doping, and composite layout, TiO two remains to advance as a cornerstone material in sustainable and clever modern technologies.

5. Distributor

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12 years experience in providing super high-quality chemicals and Nanomaterials. The company export to many countries, such as USA, Canada, Europe, UAE, South Africa, Tanzania, Kenya, Egypt, Nigeria, Cameroon, Uganda, Turkey, Mexico, Azerbaijan, Belgium, Cyprus, Czech Republic, Brazil, Chile, Argentina, Dubai, Japan, Korea, Vietnam, Thailand, Malaysia, Indonesia, Australia,Germany, France, Italy, Portugal etc. As a leading nanotechnology development manufacturer, RBOSCHCO dominates the market. Our professional work team provides perfect solutions to help improve the efficiency of various industries, create value, and easily cope with various challenges. If you are looking for e171 in medicine, please send an email to: sales1@rboschco.com
Tags: titanium dioxide,titanium titanium dioxide, TiO2

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

Titanium carbide (TiC), a product with phenomenal physical and chemical properties, is coming to be a principal in modern-day industry and technology. It succeeds under extreme conditions such as high temperatures and pressures, and it additionally stands out for its wear resistance, firmness, electric conductivity, and corrosion resistance. Titanium carbide is a compound of titanium and carbon, with the chemical formula TiC, including a cubic crystal structure comparable to that of NaCl. Its firmness rivals that of ruby, and it boasts exceptional thermal security and mechanical strength. Furthermore, titanium carbide displays remarkable wear resistance and electric conductivity, significantly enhancing the total efficiency of composite products when used as a hard phase within metallic matrices. Especially, titanium carbide shows impressive resistance to most acidic and alkaline remedies, maintaining steady physical and chemical residential or commercial properties also in severe environments. For that reason, it finds substantial applications in manufacturing tools, molds, and safety coverings. For instance, in the automobile sector, reducing devices coated with titanium carbide can dramatically prolong life span and decrease replacement frequency, thus reducing costs. Similarly, in aerospace, titanium carbide is utilized to manufacture high-performance engine elements like turbine blades and combustion chamber liners, improving airplane safety and integrity.

(Titanium Carbide Powder)

In recent years, with innovations in science and modern technology, scientists have actually constantly discovered brand-new synthesis techniques and enhanced existing processes to enhance the quality and manufacturing quantity of titanium carbide. Common prep work approaches consist of solid-state response, self-propagating high-temperature synthesis (SHS), vapor deposition (PVD and CVD), and sol-gel processes. Each technique has its features and advantages; for instance, SHS can efficiently lower power usage and shorten manufacturing cycles, while vapor deposition appropriates for preparing thin films or coatings of titanium carbide, making sure uniform distribution. Scientists are additionally presenting nanotechnology, such as using nano-scale resources or building nano-composite materials, to more maximize the detailed performance of titanium carbide. These advancements not just significantly boost the strength of titanium carbide, making it better for protective tools utilized in high-impact atmospheres, however additionally broaden its application as an effective driver service provider, showing broad growth leads. For example, nano-scale titanium carbide powder can function as a reliable stimulant carrier in chemical and environmental protection fields, showing extensive possible applications.

The application cases of titanium carbide highlight its enormous prospective throughout numerous industries. In device and mold and mildew production, as a result of its very high firmness and good wear resistance, titanium carbide is a suitable selection for producing cutting devices, drills, crushing cutters, and various other accuracy processing tools. In the automobile market, reducing devices coated with titanium carbide can significantly prolong their life span and reduce replacement regularity, hence lowering costs. In a similar way, in aerospace, titanium carbide is utilized to produce high-performance engine parts such as wind turbine blades and combustion chamber linings, boosting airplane security and dependability. Additionally, titanium carbide coverings are extremely valued for their exceptional wear and rust resistance, discovering widespread use in oil and gas removal equipment like well pipeline columns and pierce rods, in addition to aquatic design structures such as ship props and subsea pipelines, improving devices sturdiness and safety and security. In mining equipment and railway transportation markets, titanium carbide-made wear parts and finishings can greatly enhance service life, minimize resonance and sound, and enhance working conditions. In addition, titanium carbide shows substantial potential in emerging application areas. As an example, in the electronic devices market, it functions as an alternative to semiconductor products due to its good electrical conductivity and thermal security; in biomedicine, it acts as a layer material for orthopedic implants, advertising bone development and lowering inflammatory reactions; in the new power sector, it shows great potential as battery electrode products; and in photocatalytic water splitting for hydrogen manufacturing, it demonstrates outstanding catalytic efficiency, supplying brand-new pathways for tidy energy advancement.

(Titanium Carbide Powder)

Despite the significant success of titanium carbide products and associated modern technologies, difficulties continue to be in useful promotion and application, such as cost issues, massive production modern technology, environmental kindness, and standardization. To resolve these obstacles, constant technology and enhanced participation are crucial. On one hand, growing essential research study to explore new synthesis methods and enhance existing processes can constantly lower production prices. On the other hand, establishing and perfecting sector standards promotes worked with advancement amongst upstream and downstream ventures, building a healthy community. Colleges and research study institutes should enhance academic financial investments to cultivate more top quality specialized abilities, laying a solid ability structure for the long-lasting development of the titanium carbide sector. In summary, titanium carbide, as a multi-functional product with terrific possible, is slowly changing numerous aspects of our lives. From conventional tool and mold production to arising power and biomedical fields, its presence is ubiquitous. With the continuous growth and renovation of technology, titanium carbide is anticipated to play an irreplaceable duty in a lot more fields, bringing better convenience and advantages to human society. According to the current marketing research reports, China’s titanium carbide sector reached 10s of billions of yuan in 2023, showing strong development energy and promising more comprehensive application potential customers and development space. Scientists are additionally exploring new applications of titanium carbide, such as effective water-splitting catalysts and farming modifications, supplying new techniques for clean power advancement and dealing with worldwide food safety and security. As modern technology developments and market demand grows, the application locations of titanium carbide will increase even more, and its value will end up being increasingly noticeable. Additionally, titanium carbide locates vast applications in sporting activities equipment production, such as golf club heads covered with titanium carbide, which can dramatically enhance striking precision and range; in premium watchmaking, where watch cases and bands made from titanium carbide not just improve product aesthetics however also enhance wear and deterioration resistance. In artistic sculpture production, artists use its firmness and use resistance to produce splendid artworks, granting them with longer-lasting vigor. Finally, titanium carbide, with its unique physical and chemical properties and broad application range, has come to be a crucial part of contemporary market and innovation. With ongoing research study and technical progression, titanium carbide will remain to lead a change in materials science, providing even more possibilities to human society.

TRUNNANO is a supplier of Molybdenum Disilicide with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Molybdenum Disilicide, please feel free to contact us and send an inquiry(sales5@nanotrun.com).

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

Titanium disilicide exists in numerous phases, with C49 and C54 being one of the most typical. The C49 phase has a hexagonal crystal structure, while the C54 stage shows a tetragonal crystal structure. Because of its reduced resistivity (approximately 3-6 μΩ · cm) and higher thermal stability, the C54 stage is preferred in industrial applications. Different techniques can be utilized to prepare titanium disilicide, consisting of Physical Vapor Deposition (PVD) and Chemical Vapor Deposition (CVD). One of the most typical method includes responding titanium with silicon, depositing titanium movies on silicon substratums through sputtering or dissipation, followed by Quick Thermal Processing (RTP) to form TiSi2. This technique permits exact density control and consistent distribution.

(Titanium Disilicide Powder)

In regards to applications, titanium disilicide discovers extensive use in semiconductor devices, optoelectronics, and magnetic memory. In semiconductor tools, it is utilized for resource drain get in touches with and gate get in touches with; in optoelectronics, TiSi2 toughness the conversion effectiveness of perovskite solar cells and enhances their security while decreasing problem density in ultraviolet LEDs to boost luminous performance. In magnetic memory, Rotate Transfer Torque Magnetic Random Gain Access To Memory (STT-MRAM) based on titanium disilicide includes non-volatility, high-speed read/write abilities, and reduced energy consumption, making it an excellent prospect for next-generation high-density data storage media.

Regardless of the significant capacity of titanium disilicide across numerous high-tech fields, obstacles continue to be, such as additional decreasing resistivity, improving thermal stability, and creating efficient, affordable large production techniques.Researchers are checking out new material systems, optimizing interface engineering, regulating microstructure, and developing eco-friendly procedures. Efforts include:

()

Searching for new generation materials with doping various other elements or altering substance composition proportions.

Investigating ideal matching schemes between TiSi2 and other products.

Using sophisticated characterization techniques to discover atomic plan patterns and their influence on macroscopic residential properties.

Dedicating to green, green new synthesis routes.

In summary, titanium disilicide stands out for its fantastic physical and chemical homes, playing an irreplaceable role in semiconductors, optoelectronics, and magnetic memory. Dealing with growing technological needs and social obligations, strengthening the understanding of its basic clinical concepts and discovering innovative services will be vital to progressing this field. In the coming years, with the development of even more breakthrough results, titanium disilicide is anticipated to have an also more comprehensive development prospect, remaining to contribute to technological development.

TRUNNANO is a supplier of Titanium Disilicide with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Titanium Disilicide, please feel free to contact us and send an inquiry(sales8@nanotrun.com).

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

Our product, Titanium Carbide nanoparticles, includes the adhering to characteristics: Chemical Solution TiC, Purity 99%, Average Fragment Dimension 50 nm, Crystal Structure Cubic, Specific Area 23 m ²/ g, and Appearance Black. These high-grade Titanium Carbide nanoparticles are suitable for a variety of applications, consisting of porcelains, steel matrix compounds, and hardmetals. If you have an interest in our items or have particular modification demands, please feel free to call us.

(Specification of Titanium Carbide)

Introduction

The worldwide Titanium Carbide (TiC) market is expected to witness durable growth from 2025 to 2030. TiC is a compound of titanium and carbon, characterized by its severe firmness and high melting point, making it a crucial material in various industries such as aerospace, automotive, and electronic devices. This record offers a comprehensive evaluation of the present market landscape, essential fads, difficulties, and opportunities that are expected to shape the future of the TiC market.

Market Introduction

Titanium Carbide is commonly utilized in the production of cutting tools, wear-resistant coverings, and structural elements as a result of its premium mechanical residential or commercial properties. The enhancing need for high-performance products in the production field is a key driver of the TiC market. In addition, developments in material science and innovation have actually caused the development of new applications for TiC, more enhancing market growth. The market is fractional by kind, application, and area, each adding distinctly to the overall market characteristics.

Secret Drivers

Among the primary elements driving the development of the TiC market is the rising need for wear-resistant products in the automotive and aerospace industries. TiC’s high solidity and use resistance make it optimal for usage in reducing devices and engine components, bring about boosted effectiveness and longer product lifespans. In addition, the expanding fostering of TiC in the electronic devices sector, particularly in semiconductor production, is an additional considerable vehicle driver. The material’s outstanding thermal conductivity and chemical stability are important for high-performance electronic gadgets.

Challenges

In spite of its many benefits, the TiC market deals with several challenges. One of the main challenges is the high price of manufacturing, which can limit its extensive adoption in cost-sensitive applications. Furthermore, the complex manufacturing process and the requirement for customized devices can position obstacles to entrance for new gamers in the market. Ecological worries associated with the removal and processing of titanium are also a consideration, as they can influence the sustainability of the TiC supply chain.

Technical Advancements

Technological developments play an essential duty in the development of the TiC market. Innovations in synthesis methods, such as chemical vapor deposition (CVD) and physical vapor deposition (PVD), have boosted the quality and uniformity of TiC items. These strategies allow for accurate control over the microstructure and residential or commercial properties of TiC, allowing its use in much more requiring applications. R & d initiatives are additionally concentrated on creating composite products that integrate TiC with various other materials to improve their performance and widen their application range.

Regional Evaluation

The global TiC market is geographically varied, with The United States and Canada, Europe, Asia-Pacific, and the Center East & Africa being essential regions. The United States And Canada and Europe are anticipated to preserve a strong market existence because of their innovative manufacturing sectors and high need for high-performance products. The Asia-Pacific region, especially China and Japan, is forecasted to experience significant development because of fast automation and enhancing financial investments in r & d. The Middle East and Africa, while currently smaller sized markets, show potential for growth driven by framework growth and emerging sectors.

Competitive Landscape

The TiC market is very competitive, with numerous recognized gamers controling the marketplace. Principal consist of firms such as H.C. Starck, Advanced Refractory Technologies, and Sumitomo Electric Industries. These companies are constantly buying R&D to develop ingenious products and expand their market share. Strategic partnerships, mergers, and purchases are common approaches employed by these firms to stay ahead in the market. New participants encounter difficulties due to the high preliminary investment needed and the requirement for innovative technical capacities.

( TRUNNANO Titanium Carbide )

Future Potential customer

The future of the TiC market looks encouraging, with several factors anticipated to drive development over the next five years. The increasing focus on lasting and efficient manufacturing processes will certainly create new possibilities for TiC in different markets. Additionally, the advancement of brand-new applications, such as in additive production and biomedical implants, is anticipated to open up brand-new avenues for market expansion. Federal governments and personal organizations are also buying study to explore the complete possibility of TiC, which will certainly additionally contribute to market growth.

Conclusion

To conclude, the international Titanium Carbide market is readied to expand dramatically from 2025 to 2030, driven by its one-of-a-kind residential or commercial properties and increasing applications across several markets. Regardless of encountering some obstacles, the marketplace is well-positioned for long-lasting success, sustained by technological advancements and calculated campaigns from principals. As the need for high-performance products remains to climb, the TiC market is anticipated to play an essential duty fit the future of manufacturing and technology.

Top Quality Titanium Carbide Provider

TRUNNANO is a supplier of titanium carbide with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about titanium carbide hardness, please feel free to contact us and send an inquiry(sales5@nanotrun.com).

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

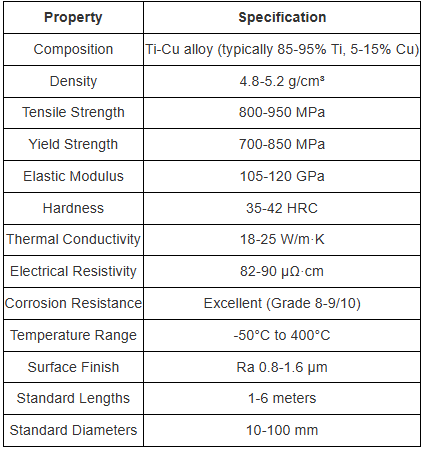

(Specification of titanium-copper composite rod)

As a high-performance product, titanium-copper composite alloy poles have revealed strong growth energy in the international market in recent years. This product combines the high stamina and lightweight of titanium with the excellent conductivity and deterioration resistance of copper, making it commonly utilized in several fields. According to marketing research, the worldwide titanium-copper composite alloy pole market dimension has gotten to about US$ 1 billion in 2024 and is expected to get to US$ 1.5 billion by 2028, with a typical yearly substance development price of approximately 8%. This development is generally because of its irreplaceable nature in aerospace, digital devices, clinical gadgets and other areas.

Technological innovation is among the crucial variables driving the growth of the titanium-copper composite alloy rod market. Leading companies such as China’s TRUNNANO remain to invest in research and development, devoted to improving material performance, decreasing prices and increasing the extent of application. As an example, by optimizing the alloy make-up proportion and taking on innovative heat treatment processes, TRUNNANO has actually efficiently boosted the mechanical strength and corrosion resistance of titanium-copper composite alloy poles, making them execute well in severe environments. On top of that, the application of nanotechnology further enhances the surface area firmness and electric conductivity of the product, broadening its application in emerging areas such as brand-new energy lorries and clever wearable tools.

Titanium-copper composite alloy rods show excellent application possibility in several industries. In the aerospace field, this product is made use of to manufacture aircraft structural components, engine parts, etc, which aids to decrease weight and boost gas efficiency. In the field of digital equipment, its excellent conductivity and corrosion resistance make it an excellent option for manufacturing high-performance circuit card and connectors. In the area of clinical devices, titanium-copper composite alloy rods are extensively used in the manufacture of medical devices such as artificial joints and dental implants because of their excellent biocompatibility and anti-infection ability. The growth of these application locations not only advertises the growth of market need however likewise provides a broad room for the more growth of materials.

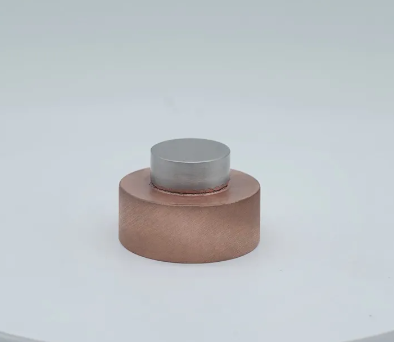

(TRUNNANO titanium-copper composite rod)

In regards to local circulation, the Asia-Pacific region is the globe’s largest consumer market for titanium-copper composite alloy rods, particularly in China, Japan and South Korea. These countries have a strong manufacturing capability in high-tech sectors such as car production, electronic items, aerospace, etc, and have a big need for high-performance products. The North American market is mainly focused in the aerospace and protection sectors, while the European market masters auto manufacturing and premium production. Although South America, the Center East and Africa currently have a tiny market share, as the automation procedure in these areas speeds up, framework building and the development of manufacturing will bring new development points to titanium-copper composite alloy rods. The marketplace features and demand distinctions in various areas force companies to adopt adaptable market methods to adapt to varied market needs.

Looking ahead, with the proceeded recuperation of the international economic situation and the quick development of science and innovation, the titanium-copper composite alloy pole market will remain to preserve a development pattern. Technological development will certainly remain to be the core driving pressure for market growth, especially the application of nanotechnology and intelligent manufacturing technology will further improve product performance, decrease production costs and expand the scope of application. Nevertheless, the marketplace likewise encounters some difficulties, such as variations in resources rates, high production expenses and strong market competitors. To satisfy these difficulties, business such as TRUNNANO need to increase R&D financial investment, optimize production procedures, enhance production efficiency, and strengthen teamwork with downstream clients to create brand-new products and explore brand-new markets jointly. Additionally, lasting growth and environmental management are likewise key directions for future development. By using environmentally friendly products and modern technologies and lowering energy intake and waste emissions in the manufacturing process, a great deal for the economic climate and the environment can be attained.

Provider

TRUNNANO is a supplier of nano materials with over 12 years experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about titanium copper, please feel free to contact us and send an inquiry.(sales8@nanotrun.com)
