1.1 Crystal Structure and Chemical Stability

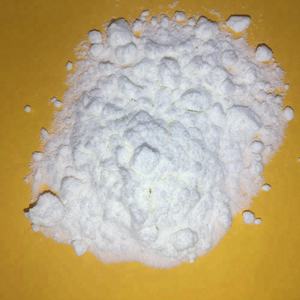

(Aluminum Nitride Ceramic Substrates)

Light weight aluminum nitride (AlN) is a vast bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of alternating layers of light weight aluminum and nitrogen atoms adhered with solid covalent interactions.

This durable atomic plan grants AlN with phenomenal thermal security, maintaining architectural stability up to 2200 ° C in inert atmospheres and withstanding decomposition under severe thermal biking.

Unlike alumina (Al two O THREE), AlN is chemically inert to thaw metals and several responsive gases, making it suitable for harsh atmospheres such as semiconductor handling chambers and high-temperature heating systems.

Its high resistance to oxidation– creating only a slim protective Al two O ₃ layer at surface area upon direct exposure to air– makes certain long-lasting integrity without considerable degradation of bulk buildings.

Furthermore, AlN displays superb electric insulation with a resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric strength over 30 kV/mm, vital for high-voltage applications.

1.2 Thermal Conductivity and Digital Features

One of the most specifying attribute of aluminum nitride is its outstanding thermal conductivity, normally varying from 140 to 180 W/(m · K )for commercial-grade substrates– over five times more than that of alumina (≈ 30 W/(m · K)).

This performance originates from the low atomic mass of nitrogen and aluminum, integrated with solid bonding and minimal point defects, which enable reliable phonon transportation through the latticework.

Nonetheless, oxygen pollutants are specifically harmful; even trace quantities (above 100 ppm) alternative to nitrogen websites, developing light weight aluminum vacancies and spreading phonons, consequently considerably decreasing thermal conductivity.

High-purity AlN powders manufactured using carbothermal reduction or direct nitridation are necessary to achieve optimal warmth dissipation.

Regardless of being an electric insulator, AlN’s piezoelectric and pyroelectric buildings make it beneficial in sensing units and acoustic wave tools, while its large bandgap (~ 6.2 eV) supports procedure in high-power and high-frequency electronic systems.

2. Construction Processes and Production Difficulties

( Aluminum Nitride Ceramic Substrates)

2.1 Powder Synthesis and Sintering Techniques

Making high-performance AlN substrates starts with the synthesis of ultra-fine, high-purity powder, typically accomplished through reactions such as Al Two O TWO + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or direct nitridation of light weight aluminum metal: 2Al + N ₂ → 2AlN.

The resulting powder should be meticulously grated and doped with sintering aids like Y TWO O ₃, CaO, or unusual planet oxides to advertise densification at temperatures between 1700 ° C and 1900 ° C under nitrogen ambience.

These ingredients develop transient liquid stages that enhance grain limit diffusion, allowing full densification (> 99% academic thickness) while minimizing oxygen contamination.

Post-sintering annealing in carbon-rich settings can additionally minimize oxygen web content by eliminating intergranular oxides, consequently bring back peak thermal conductivity.

Achieving consistent microstructure with controlled grain size is essential to stabilize mechanical stamina, thermal performance, and manufacturability.

2.2 Substrate Shaping and Metallization

Once sintered, AlN porcelains are precision-ground and lapped to meet limited dimensional tolerances needed for electronic product packaging, frequently down to micrometer-level flatness.

Through-hole boring, laser cutting, and surface area patterning allow integration right into multilayer bundles and crossbreed circuits.

A critical action in substratum fabrication is metallization– the application of conductive layers (usually tungsten, molybdenum, or copper) through processes such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).

For DBC, copper aluminum foils are bound to AlN surface areas at elevated temperatures in a controlled ambience, developing a strong interface suitable for high-current applications.

Alternative strategies like active metal brazing (AMB) use titanium-containing solders to improve adhesion and thermal fatigue resistance, especially under duplicated power biking.

Correct interfacial engineering makes certain low thermal resistance and high mechanical integrity in operating devices.

3. Performance Advantages in Electronic Solution

3.1 Thermal Monitoring in Power Electronics

AlN substrates excel in managing warm created by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers made use of in electrical lorries, renewable resource inverters, and telecommunications framework.

Efficient heat extraction stops localized hotspots, decreases thermal stress and anxiety, and expands tool lifetime by reducing electromigration and delamination threats.

Compared to standard Al ₂ O six substrates, AlN enables smaller bundle dimensions and higher power densities due to its remarkable thermal conductivity, allowing designers to press efficiency boundaries without compromising integrity.

In LED lighting and laser diodes, where joint temperature level straight influences performance and shade stability, AlN substratums dramatically enhance luminescent output and functional lifespan.

Its coefficient of thermal growth (CTE ≈ 4.5 ppm/K) also carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), lessening thermo-mechanical stress and anxiety throughout thermal cycling.

3.2 Electric and Mechanical Integrity

Beyond thermal efficiency, AlN uses reduced dielectric loss (tan δ < 0.0005) and stable permittivity (εᵣ ≈ 8.9) throughout a wide regularity range, making it suitable for high-frequency microwave and millimeter-wave circuits.

Its hermetic nature protects against dampness access, removing deterioration dangers in moist environments– a vital advantage over organic substratums.

Mechanically, AlN possesses high flexural stamina (300– 400 MPa) and firmness (HV ≈ 1200), guaranteeing resilience throughout handling, assembly, and area procedure.

These characteristics jointly add to enhanced system dependability, reduced failure rates, and reduced complete price of possession in mission-critical applications.

4. Applications and Future Technological Frontiers

4.1 Industrial, Automotive, and Protection Systems

AlN ceramic substrates are now conventional in advanced power modules for industrial electric motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid vehicles.

In aerospace and defense, they support radar systems, digital warfare units, and satellite communications, where efficiency under extreme conditions is non-negotiable.

Clinical imaging tools, including X-ray generators and MRI systems, additionally take advantage of AlN’s radiation resistance and signal honesty.

As electrification patterns increase throughout transport and energy fields, need for AlN substrates continues to grow, driven by the need for compact, effective, and trusted power electronics.

4.2 Arising Integration and Lasting Advancement

Future developments concentrate on incorporating AlN into three-dimensional product packaging designs, embedded passive elements, and heterogeneous integration systems integrating Si, SiC, and GaN tools.

Study right into nanostructured AlN movies and single-crystal substratums aims to further increase thermal conductivity towards theoretical limitations (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.

Efforts to decrease manufacturing expenses via scalable powder synthesis, additive manufacturing of complex ceramic structures, and recycling of scrap AlN are acquiring momentum to improve sustainability.

Furthermore, modeling devices making use of limited element analysis (FEA) and artificial intelligence are being employed to maximize substrate design for details thermal and electrical tons.

Finally, aluminum nitride ceramic substratums represent a foundation innovation in modern electronics, distinctly bridging the void between electrical insulation and exceptional thermal conduction.

Their function in enabling high-efficiency, high-reliability power systems highlights their strategic relevance in the recurring development of digital and energy innovations.

5. Distributor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: Aluminum Nitride Ceramic Substrates, aluminum nitride ceramic, aln aluminium nitride

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 The 2H and 1T Polymorphs: Architectural and Digital Duality

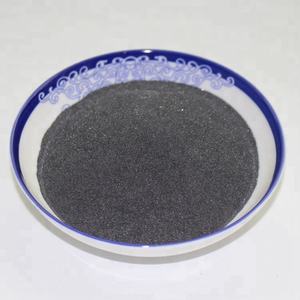

(Molybdenum Disulfide)

Molybdenum disulfide (MoS TWO) is a layered change metal dichalcogenide (TMD) with a chemical formula including one molybdenum atom sandwiched between two sulfur atoms in a trigonal prismatic control, forming covalently adhered S– Mo– S sheets.

These private monolayers are piled vertically and held with each other by weak van der Waals pressures, making it possible for easy interlayer shear and exfoliation down to atomically slim two-dimensional (2D) crystals– an architectural attribute main to its diverse practical functions.

MoS two exists in numerous polymorphic forms, one of the most thermodynamically stable being the semiconducting 2H stage (hexagonal balance), where each layer shows a straight bandgap of ~ 1.8 eV in monolayer type that transitions to an indirect bandgap (~ 1.3 eV) wholesale, a sensation important for optoelectronic applications.

On the other hand, the metastable 1T phase (tetragonal proportion) takes on an octahedral coordination and acts as a metallic conductor due to electron donation from the sulfur atoms, enabling applications in electrocatalysis and conductive composites.

Phase changes between 2H and 1T can be induced chemically, electrochemically, or via strain design, offering a tunable system for creating multifunctional gadgets.

The capability to support and pattern these phases spatially within a single flake opens up paths for in-plane heterostructures with distinct electronic domain names.

1.2 Flaws, Doping, and Edge States

The performance of MoS two in catalytic and digital applications is highly conscious atomic-scale flaws and dopants.

Innate point flaws such as sulfur jobs work as electron donors, enhancing n-type conductivity and functioning as energetic sites for hydrogen development responses (HER) in water splitting.

Grain boundaries and line flaws can either hamper cost transport or create local conductive pathways, relying on their atomic setup.

Managed doping with change metals (e.g., Re, Nb) or chalcogens (e.g., Se) allows fine-tuning of the band structure, provider focus, and spin-orbit coupling results.

Especially, the edges of MoS ₂ nanosheets, particularly the metallic Mo-terminated (10– 10) edges, exhibit dramatically greater catalytic activity than the inert basal aircraft, motivating the design of nanostructured drivers with made the most of edge direct exposure.

( Molybdenum Disulfide)

These defect-engineered systems exemplify exactly how atomic-level control can change a naturally happening mineral into a high-performance practical product.

2. Synthesis and Nanofabrication Techniques

2.1 Bulk and Thin-Film Production Methods

Natural molybdenite, the mineral type of MoS ₂, has been used for decades as a solid lubricating substance, but contemporary applications demand high-purity, structurally controlled synthetic kinds.

Chemical vapor deposition (CVD) is the dominant method for creating large-area, high-crystallinity monolayer and few-layer MoS two movies on substrates such as SiO ₂/ Si, sapphire, or adaptable polymers.

In CVD, molybdenum and sulfur forerunners (e.g., MoO four and S powder) are evaporated at high temperatures (700– 1000 ° C )in control environments, allowing layer-by-layer development with tunable domain dimension and positioning.

Mechanical peeling (“scotch tape technique”) stays a benchmark for research-grade samples, generating ultra-clean monolayers with marginal flaws, though it does not have scalability.

Liquid-phase exfoliation, involving sonication or shear mixing of bulk crystals in solvents or surfactant solutions, produces colloidal diffusions of few-layer nanosheets ideal for coatings, compounds, and ink formulations.

2.2 Heterostructure Combination and Device Patterning

Truth capacity of MoS ₂ arises when incorporated into vertical or lateral heterostructures with other 2D products such as graphene, hexagonal boron nitride (h-BN), or WSe two.

These van der Waals heterostructures allow the layout of atomically accurate gadgets, including tunneling transistors, photodetectors, and light-emitting diodes (LEDs), where interlayer fee and energy transfer can be engineered.

Lithographic pattern and etching methods permit the construction of nanoribbons, quantum dots, and field-effect transistors (FETs) with network sizes to tens of nanometers.

Dielectric encapsulation with h-BN shields MoS two from environmental destruction and minimizes charge spreading, significantly boosting carrier movement and tool stability.

These construction advancements are important for transitioning MoS two from lab inquisitiveness to viable element in next-generation nanoelectronics.

3. Practical Qualities and Physical Mechanisms

3.1 Tribological Habits and Strong Lubrication

One of the earliest and most enduring applications of MoS ₂ is as a dry solid lube in extreme settings where fluid oils fall short– such as vacuum, high temperatures, or cryogenic conditions.

The reduced interlayer shear strength of the van der Waals space allows very easy gliding in between S– Mo– S layers, resulting in a coefficient of rubbing as reduced as 0.03– 0.06 under optimal problems.

Its efficiency is further improved by strong bond to metal surface areas and resistance to oxidation as much as ~ 350 ° C in air, beyond which MoO five development enhances wear.

MoS ₂ is extensively utilized in aerospace devices, air pump, and weapon parts, often applied as a layer through burnishing, sputtering, or composite incorporation into polymer matrices.

Current researches show that humidity can weaken lubricity by boosting interlayer bond, prompting research into hydrophobic layers or hybrid lubes for enhanced ecological stability.

3.2 Electronic and Optoelectronic Feedback

As a direct-gap semiconductor in monolayer kind, MoS two exhibits strong light-matter communication, with absorption coefficients surpassing 10 five cm ⁻¹ and high quantum yield in photoluminescence.

This makes it ideal for ultrathin photodetectors with rapid response times and broadband level of sensitivity, from noticeable to near-infrared wavelengths.

Field-effect transistors based on monolayer MoS two show on/off proportions > 10 eight and carrier wheelchairs as much as 500 centimeters TWO/ V · s in suspended examples, though substrate interactions usually restrict practical values to 1– 20 centimeters ²/ V · s.

Spin-valley coupling, a repercussion of strong spin-orbit communication and damaged inversion symmetry, allows valleytronics– a novel standard for details encoding making use of the valley level of freedom in energy space.

These quantum sensations position MoS ₂ as a prospect for low-power reasoning, memory, and quantum computing elements.

4. Applications in Power, Catalysis, and Emerging Technologies

4.1 Electrocatalysis for Hydrogen Development Reaction (HER)

MoS ₂ has actually emerged as a promising non-precious option to platinum in the hydrogen evolution response (HER), a key process in water electrolysis for eco-friendly hydrogen production.

While the basal plane is catalytically inert, side sites and sulfur vacancies show near-optimal hydrogen adsorption free power (ΔG_H * ≈ 0), comparable to Pt.

Nanostructuring approaches– such as producing up and down straightened nanosheets, defect-rich movies, or drugged crossbreeds with Ni or Co– take full advantage of active website density and electrical conductivity.

When integrated into electrodes with conductive sustains like carbon nanotubes or graphene, MoS ₂ attains high current densities and long-term stability under acidic or neutral problems.

Additional improvement is achieved by maintaining the metallic 1T phase, which boosts innate conductivity and exposes added energetic sites.

4.2 Adaptable Electronics, Sensors, and Quantum Tools

The mechanical versatility, transparency, and high surface-to-volume ratio of MoS ₂ make it ideal for flexible and wearable electronic devices.

Transistors, logic circuits, and memory tools have actually been shown on plastic substratums, enabling bendable screens, wellness displays, and IoT sensors.

MoS TWO-based gas sensing units show high sensitivity to NO ₂, NH ₃, and H TWO O as a result of bill transfer upon molecular adsorption, with feedback times in the sub-second range.

In quantum technologies, MoS two hosts local excitons and trions at cryogenic temperature levels, and strain-induced pseudomagnetic fields can trap carriers, making it possible for single-photon emitters and quantum dots.

These developments highlight MoS ₂ not only as a practical material yet as a platform for discovering essential physics in minimized measurements.

In summary, molybdenum disulfide exemplifies the merging of classic materials science and quantum engineering.

From its ancient duty as a lube to its modern-day implementation in atomically thin electronic devices and energy systems, MoS two continues to redefine the limits of what is feasible in nanoscale products design.

As synthesis, characterization, and assimilation methods breakthrough, its influence across scientific research and technology is positioned to expand even better.

5. Vendor

TRUNNANO is a globally recognized Molybdenum Disulfide manufacturer and supplier of compounds with more than 12 years of expertise in the highest quality nanomaterials and other chemicals. The company develops a variety of powder materials and chemicals. Provide OEM service. If you need high quality Molybdenum Disulfide, please feel free to contact us. You can click on the product to contact us.
Tags: Molybdenum Disulfide, nano molybdenum disulfide, MoS2

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystallographic Framework and Electronic Setup

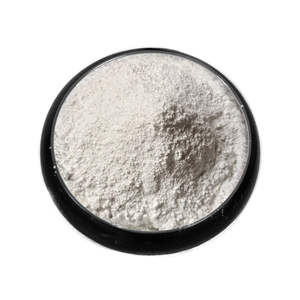

(Chromium Oxide)

Chromium(III) oxide, chemically represented as Cr two O FOUR, is a thermodynamically stable not natural substance that comes from the family members of shift steel oxides displaying both ionic and covalent characteristics.

It crystallizes in the corundum framework, a rhombohedral latticework (space team R-3c), where each chromium ion is octahedrally collaborated by six oxygen atoms, and each oxygen is surrounded by four chromium atoms in a close-packed arrangement.

This architectural theme, shown to α-Fe two O TWO (hematite) and Al Two O TWO (diamond), presents phenomenal mechanical firmness, thermal stability, and chemical resistance to Cr ₂ O TWO.

The electronic arrangement of Cr ³ ⁺ is [Ar] 3d ³, and in the octahedral crystal area of the oxide latticework, the three d-electrons occupy the lower-energy t ₂ g orbitals, causing a high-spin state with considerable exchange communications.

These interactions give rise to antiferromagnetic purchasing listed below the Néel temperature of about 307 K, although weak ferromagnetism can be observed as a result of rotate angling in specific nanostructured kinds.

The wide bandgap of Cr ₂ O ₃– varying from 3.0 to 3.5 eV– renders it an electrical insulator with high resistivity, making it clear to noticeable light in thin-film type while showing up dark green in bulk as a result of solid absorption at a loss and blue areas of the spectrum.

1.2 Thermodynamic Security and Surface Sensitivity

Cr ₂ O four is among one of the most chemically inert oxides recognized, showing impressive resistance to acids, antacid, and high-temperature oxidation.

This security develops from the strong Cr– O bonds and the reduced solubility of the oxide in liquid settings, which additionally adds to its environmental perseverance and low bioavailability.

Nevertheless, under severe conditions– such as concentrated warm sulfuric or hydrofluoric acid– Cr two O six can gradually dissolve, forming chromium salts.

The surface of Cr ₂ O three is amphoteric, with the ability of interacting with both acidic and basic varieties, which allows its use as a catalyst support or in ion-exchange applications.

( Chromium Oxide)

Surface hydroxyl groups (– OH) can form with hydration, affecting its adsorption habits toward steel ions, natural molecules, and gases.

In nanocrystalline or thin-film kinds, the enhanced surface-to-volume ratio boosts surface reactivity, permitting functionalization or doping to tailor its catalytic or electronic properties.

2. Synthesis and Handling Techniques for Functional Applications

2.1 Conventional and Advanced Construction Routes

The production of Cr two O three covers a range of methods, from industrial-scale calcination to precision thin-film deposition.

One of the most typical commercial route entails the thermal decay of ammonium dichromate ((NH ₄)₂ Cr ₂ O SEVEN) or chromium trioxide (CrO FOUR) at temperature levels above 300 ° C, producing high-purity Cr ₂ O five powder with controlled fragment dimension.

Additionally, the reduction of chromite ores (FeCr ₂ O FOUR) in alkaline oxidative settings creates metallurgical-grade Cr two O six made use of in refractories and pigments.

For high-performance applications, advanced synthesis techniques such as sol-gel handling, burning synthesis, and hydrothermal techniques allow great control over morphology, crystallinity, and porosity.

These techniques are especially useful for producing nanostructured Cr ₂ O two with improved area for catalysis or sensing unit applications.

2.2 Thin-Film Deposition and Epitaxial Growth

In electronic and optoelectronic contexts, Cr ₂ O ₃ is typically deposited as a slim movie making use of physical vapor deposition (PVD) techniques such as sputtering or electron-beam evaporation.

Chemical vapor deposition (CVD) and atomic layer deposition (ALD) offer exceptional conformality and thickness control, necessary for integrating Cr two O two right into microelectronic devices.

Epitaxial growth of Cr two O five on lattice-matched substratums like α-Al two O four or MgO allows the development of single-crystal films with marginal flaws, making it possible for the research of intrinsic magnetic and digital residential or commercial properties.

These high-grade movies are important for emerging applications in spintronics and memristive devices, where interfacial quality straight affects tool efficiency.

3. Industrial and Environmental Applications of Chromium Oxide

3.1 Role as a Resilient Pigment and Unpleasant Product

One of the oldest and most widespread uses Cr two O Two is as a green pigment, historically called “chrome environment-friendly” or “viridian” in artistic and industrial coverings.

Its intense shade, UV stability, and resistance to fading make it ideal for architectural paints, ceramic glazes, tinted concretes, and polymer colorants.

Unlike some natural pigments, Cr two O five does not break down under extended sunlight or high temperatures, ensuring lasting visual durability.

In unpleasant applications, Cr two O six is used in brightening compounds for glass, steels, and optical elements because of its solidity (Mohs hardness of ~ 8– 8.5) and great bit size.

It is specifically reliable in precision lapping and completing processes where minimal surface area damages is required.

3.2 Use in Refractories and High-Temperature Coatings

Cr Two O six is a key element in refractory materials used in steelmaking, glass manufacturing, and cement kilns, where it gives resistance to molten slags, thermal shock, and destructive gases.

Its high melting point (~ 2435 ° C) and chemical inertness permit it to preserve structural integrity in extreme environments.

When integrated with Al two O five to create chromia-alumina refractories, the product shows enhanced mechanical stamina and rust resistance.

Furthermore, plasma-sprayed Cr two O five coverings are related to wind turbine blades, pump seals, and valves to boost wear resistance and extend service life in aggressive commercial setups.

4. Arising Functions in Catalysis, Spintronics, and Memristive Devices

4.1 Catalytic Activity in Dehydrogenation and Environmental Remediation

Although Cr ₂ O two is generally thought about chemically inert, it exhibits catalytic activity in particular reactions, specifically in alkane dehydrogenation procedures.

Industrial dehydrogenation of propane to propylene– a key step in polypropylene manufacturing– often employs Cr ₂ O four sustained on alumina (Cr/Al ₂ O TWO) as the active stimulant.

In this context, Cr TWO ⁺ sites help with C– H bond activation, while the oxide matrix stabilizes the distributed chromium types and protects against over-oxidation.

The stimulant’s performance is highly sensitive to chromium loading, calcination temperature level, and reduction conditions, which affect the oxidation state and coordination environment of energetic websites.

Beyond petrochemicals, Cr two O FIVE-based materials are explored for photocatalytic deterioration of organic toxins and CO oxidation, particularly when doped with change metals or paired with semiconductors to boost charge splitting up.

4.2 Applications in Spintronics and Resistive Changing Memory

Cr ₂ O two has actually gained focus in next-generation digital gadgets due to its unique magnetic and electrical residential properties.

It is a prototypical antiferromagnetic insulator with a straight magnetoelectric effect, indicating its magnetic order can be managed by an electrical field and the other way around.

This residential or commercial property makes it possible for the growth of antiferromagnetic spintronic tools that are unsusceptible to outside electromagnetic fields and operate at broadband with low power intake.

Cr Two O ₃-based passage joints and exchange prejudice systems are being examined for non-volatile memory and reasoning devices.

Additionally, Cr ₂ O three shows memristive actions– resistance switching generated by electric areas– making it a candidate for resistive random-access memory (ReRAM).

The changing system is credited to oxygen openings migration and interfacial redox processes, which regulate the conductivity of the oxide layer.

These capabilities setting Cr two O six at the leading edge of research study right into beyond-silicon computer architectures.

In summary, chromium(III) oxide transcends its typical function as an easy pigment or refractory additive, emerging as a multifunctional product in innovative technical domain names.

Its mix of structural robustness, digital tunability, and interfacial task makes it possible for applications ranging from commercial catalysis to quantum-inspired electronic devices.

As synthesis and characterization techniques advance, Cr two O three is positioned to play a progressively important duty in lasting manufacturing, energy conversion, and next-generation infotech.

5. Provider

TRUNNANO is a supplier of Spherical Tungsten Powder with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Spherical Tungsten Powder, please feel free to contact us and send an inquiry(sales5@nanotrun.com).
Tags: Chromium Oxide, Cr₂O₃, High-Purity Chromium Oxide

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Atomic Structure and Polytypic Intricacy

(Silicon Carbide Powder)

Silicon carbide (SiC) is a binary compound made up of silicon and carbon atoms set up in a highly stable covalent latticework, identified by its extraordinary solidity, thermal conductivity, and digital residential or commercial properties.

Unlike traditional semiconductors such as silicon or germanium, SiC does not exist in a single crystal framework however manifests in over 250 distinct polytypes– crystalline types that vary in the piling sequence of silicon-carbon bilayers along the c-axis.

One of the most highly pertinent polytypes consist of 3C-SiC (cubic, zincblende framework), 4H-SiC, and 6H-SiC (both hexagonal), each exhibiting discreetly different digital and thermal characteristics.

Among these, 4H-SiC is specifically preferred for high-power and high-frequency electronic gadgets because of its greater electron mobility and reduced on-resistance contrasted to various other polytypes.

The solid covalent bonding– comprising roughly 88% covalent and 12% ionic personality– gives amazing mechanical toughness, chemical inertness, and resistance to radiation damages, making SiC appropriate for operation in extreme settings.

1.2 Digital and Thermal Qualities

The electronic supremacy of SiC originates from its wide bandgap, which varies from 2.3 eV (3C-SiC) to 3.3 eV (4H-SiC), dramatically larger than silicon’s 1.1 eV.

This broad bandgap enables SiC tools to operate at much higher temperature levels– up to 600 ° C– without innate service provider generation overwhelming the tool, a critical restriction in silicon-based electronic devices.

In addition, SiC has a high critical electric field strength (~ 3 MV/cm), about ten times that of silicon, permitting thinner drift layers and higher failure voltages in power tools.

Its thermal conductivity (~ 3.7– 4.9 W/cm · K for 4H-SiC) goes beyond that of copper, helping with efficient warm dissipation and reducing the requirement for intricate cooling systems in high-power applications.

Incorporated with a high saturation electron velocity (~ 2 × 10 ⁷ cm/s), these residential properties enable SiC-based transistors and diodes to switch faster, handle higher voltages, and operate with greater energy effectiveness than their silicon counterparts.

These features jointly place SiC as a foundational product for next-generation power electronics, particularly in electric automobiles, renewable resource systems, and aerospace technologies.

( Silicon Carbide Powder)

2. Synthesis and Fabrication of High-Quality Silicon Carbide Crystals

2.1 Mass Crystal Growth by means of Physical Vapor Transportation

The manufacturing of high-purity, single-crystal SiC is among one of the most tough aspects of its technical implementation, largely due to its high sublimation temperature (~ 2700 ° C )and intricate polytype control.

The dominant approach for bulk development is the physical vapor transportation (PVT) strategy, additionally referred to as the customized Lely method, in which high-purity SiC powder is sublimated in an argon atmosphere at temperature levels exceeding 2200 ° C and re-deposited onto a seed crystal.

Specific control over temperature gradients, gas circulation, and stress is essential to reduce flaws such as micropipes, misplacements, and polytype inclusions that degrade device efficiency.

In spite of advances, the development price of SiC crystals remains sluggish– generally 0.1 to 0.3 mm/h– making the process energy-intensive and costly contrasted to silicon ingot manufacturing.

Ongoing research study focuses on optimizing seed positioning, doping uniformity, and crucible design to boost crystal quality and scalability.

2.2 Epitaxial Layer Deposition and Device-Ready Substratums

For electronic tool construction, a thin epitaxial layer of SiC is grown on the mass substratum making use of chemical vapor deposition (CVD), typically utilizing silane (SiH FOUR) and lp (C TWO H EIGHT) as forerunners in a hydrogen environment.

This epitaxial layer needs to show precise thickness control, reduced problem thickness, and customized doping (with nitrogen for n-type or light weight aluminum for p-type) to form the energetic areas of power gadgets such as MOSFETs and Schottky diodes.

The lattice inequality in between the substrate and epitaxial layer, in addition to residual stress and anxiety from thermal development differences, can present piling faults and screw dislocations that influence device integrity.

Advanced in-situ tracking and process optimization have substantially minimized defect densities, enabling the business production of high-performance SiC tools with long operational life times.

In addition, the growth of silicon-compatible handling methods– such as dry etching, ion implantation, and high-temperature oxidation– has assisted in combination right into existing semiconductor manufacturing lines.

3. Applications in Power Electronics and Power Systems

3.1 High-Efficiency Power Conversion and Electric Movement

Silicon carbide has actually come to be a foundation material in modern power electronics, where its ability to change at high frequencies with marginal losses translates into smaller sized, lighter, and much more effective systems.

In electric cars (EVs), SiC-based inverters convert DC battery power to air conditioning for the motor, operating at frequencies up to 100 kHz– significantly more than silicon-based inverters– reducing the size of passive parts like inductors and capacitors.

This leads to increased power density, expanded driving range, and boosted thermal administration, straight addressing essential challenges in EV style.

Significant automobile makers and distributors have embraced SiC MOSFETs in their drivetrain systems, achieving energy financial savings of 5– 10% contrasted to silicon-based remedies.

In a similar way, in onboard battery chargers and DC-DC converters, SiC tools allow much faster charging and higher performance, accelerating the change to sustainable transport.

3.2 Renewable Energy and Grid Facilities

In photovoltaic or pv (PV) solar inverters, SiC power modules boost conversion performance by decreasing changing and conduction losses, especially under partial tons problems typical in solar power generation.

This improvement increases the overall power return of solar installations and reduces cooling demands, decreasing system costs and improving integrity.

In wind turbines, SiC-based converters take care of the variable frequency output from generators much more effectively, enabling much better grid assimilation and power top quality.

Beyond generation, SiC is being deployed in high-voltage direct current (HVDC) transmission systems and solid-state transformers, where its high break down voltage and thermal security support small, high-capacity power shipment with minimal losses over long distances.

These improvements are crucial for modernizing aging power grids and accommodating the growing share of dispersed and recurring sustainable sources.

4. Arising Roles in Extreme-Environment and Quantum Technologies

4.1 Operation in Harsh Conditions: Aerospace, Nuclear, and Deep-Well Applications

The robustness of SiC expands past electronics right into atmospheres where traditional products stop working.

In aerospace and defense systems, SiC sensing units and electronic devices run dependably in the high-temperature, high-radiation conditions near jet engines, re-entry automobiles, and area probes.

Its radiation firmness makes it suitable for atomic power plant tracking and satellite electronic devices, where direct exposure to ionizing radiation can weaken silicon gadgets.

In the oil and gas sector, SiC-based sensing units are made use of in downhole drilling tools to hold up against temperature levels surpassing 300 ° C and corrosive chemical settings, enabling real-time data acquisition for enhanced removal performance.

These applications utilize SiC’s capability to maintain architectural integrity and electric functionality under mechanical, thermal, and chemical anxiety.

4.2 Assimilation into Photonics and Quantum Sensing Operatings Systems

Past classic electronic devices, SiC is becoming an appealing system for quantum modern technologies as a result of the existence of optically energetic factor problems– such as divacancies and silicon jobs– that show spin-dependent photoluminescence.

These flaws can be adjusted at space temperature, functioning as quantum little bits (qubits) or single-photon emitters for quantum interaction and noticing.

The large bandgap and low inherent service provider concentration allow for long spin coherence times, essential for quantum information processing.

Moreover, SiC is compatible with microfabrication strategies, making it possible for the assimilation of quantum emitters into photonic circuits and resonators.

This combination of quantum performance and industrial scalability positions SiC as an one-of-a-kind material bridging the space in between fundamental quantum science and useful tool design.

In recap, silicon carbide represents a standard change in semiconductor innovation, offering unmatched performance in power effectiveness, thermal management, and ecological strength.

From enabling greener energy systems to sustaining expedition precede and quantum realms, SiC continues to redefine the limits of what is highly possible.

Vendor

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12 years experience in providing super high-quality chemicals and Nanomaterials. The company export to many countries, such as USA, Canada, Europe, UAE, South Africa, Tanzania, Kenya, Egypt, Nigeria, Cameroon, Uganda, Turkey, Mexico, Azerbaijan, Belgium, Cyprus, Czech Republic, Brazil, Chile, Argentina, Dubai, Japan, Korea, Vietnam, Thailand, Malaysia, Indonesia, Australia,Germany, France, Italy, Portugal etc. As a leading nanotechnology development manufacturer, RBOSCHCO dominates the market. Our professional work team provides perfect solutions to help improve the efficiency of various industries, create value, and easily cope with various challenges. If you are looking for silicon carbide blasting, please send an email to: sales1@rboschco.com
Tags: silicon carbide,silicon carbide mosfet,mosfet sic

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystal Design and Layered Bonding Mechanism

(Molybdenum Disulfide Powder)

Molybdenum disulfide (MoS TWO) is a shift metal dichalcogenide (TMD) that has emerged as a keystone material in both timeless industrial applications and innovative nanotechnology.

At the atomic level, MoS ₂ crystallizes in a split framework where each layer includes an airplane of molybdenum atoms covalently sandwiched in between two planes of sulfur atoms, developing an S– Mo– S trilayer.

These trilayers are held with each other by weak van der Waals pressures, allowing easy shear between surrounding layers– a residential or commercial property that underpins its exceptional lubricity.

The most thermodynamically secure phase is the 2H (hexagonal) stage, which is semiconducting and displays a direct bandgap in monolayer type, transitioning to an indirect bandgap in bulk.

This quantum arrest impact, where digital homes change significantly with thickness, makes MoS TWO a model system for researching two-dimensional (2D) materials past graphene.

In contrast, the much less typical 1T (tetragonal) phase is metallic and metastable, typically caused through chemical or electrochemical intercalation, and is of rate of interest for catalytic and energy storage space applications.

1.2 Electronic Band Structure and Optical Feedback

The digital properties of MoS two are highly dimensionality-dependent, making it a distinct system for discovering quantum sensations in low-dimensional systems.

Wholesale kind, MoS ₂ behaves as an indirect bandgap semiconductor with a bandgap of around 1.2 eV.

Nevertheless, when thinned down to a single atomic layer, quantum confinement effects trigger a change to a direct bandgap of concerning 1.8 eV, located at the K-point of the Brillouin area.

This transition enables strong photoluminescence and reliable light-matter communication, making monolayer MoS two extremely suitable for optoelectronic devices such as photodetectors, light-emitting diodes (LEDs), and solar batteries.

The conduction and valence bands display significant spin-orbit coupling, causing valley-dependent physics where the K and K ′ valleys in energy room can be selectively attended to utilizing circularly polarized light– a sensation referred to as the valley Hall impact.

( Molybdenum Disulfide Powder)

This valleytronic capacity opens up brand-new methods for info encoding and handling beyond conventional charge-based electronics.

Furthermore, MoS two demonstrates strong excitonic impacts at space temperature level due to lowered dielectric testing in 2D type, with exciton binding energies getting to several hundred meV, much exceeding those in traditional semiconductors.

2. Synthesis Approaches and Scalable Production Techniques

2.1 Top-Down Exfoliation and Nanoflake Manufacture

The seclusion of monolayer and few-layer MoS two began with mechanical peeling, a method comparable to the “Scotch tape technique” made use of for graphene.

This strategy returns top notch flakes with very little problems and exceptional electronic residential or commercial properties, suitable for fundamental research and prototype gadget fabrication.

Nonetheless, mechanical exfoliation is inherently limited in scalability and side size control, making it inappropriate for commercial applications.

To address this, liquid-phase exfoliation has actually been established, where bulk MoS two is dispersed in solvents or surfactant options and based on ultrasonication or shear blending.

This technique generates colloidal suspensions of nanoflakes that can be deposited using spin-coating, inkjet printing, or spray finishing, enabling large-area applications such as flexible electronic devices and coverings.

The dimension, thickness, and problem density of the exfoliated flakes depend upon handling parameters, consisting of sonication time, solvent selection, and centrifugation rate.

2.2 Bottom-Up Growth and Thin-Film Deposition

For applications requiring attire, large-area movies, chemical vapor deposition (CVD) has actually become the dominant synthesis path for high-grade MoS ₂ layers.

In CVD, molybdenum and sulfur precursors– such as molybdenum trioxide (MoO SIX) and sulfur powder– are evaporated and reacted on warmed substrates like silicon dioxide or sapphire under regulated atmospheres.

By tuning temperature, stress, gas circulation prices, and substrate surface area energy, scientists can grow continual monolayers or piled multilayers with manageable domain size and crystallinity.

Different methods include atomic layer deposition (ALD), which provides remarkable thickness control at the angstrom level, and physical vapor deposition (PVD), such as sputtering, which works with existing semiconductor production framework.

These scalable strategies are important for incorporating MoS two right into industrial electronic and optoelectronic systems, where uniformity and reproducibility are vital.

3. Tribological Efficiency and Industrial Lubrication Applications

3.1 Mechanisms of Solid-State Lubrication

One of the earliest and most extensive uses of MoS ₂ is as a strong lubricant in environments where liquid oils and oils are ineffective or unwanted.

The weak interlayer van der Waals pressures enable the S– Mo– S sheets to slide over each other with minimal resistance, resulting in a really reduced coefficient of rubbing– usually in between 0.05 and 0.1 in dry or vacuum problems.

This lubricity is specifically useful in aerospace, vacuum cleaner systems, and high-temperature machinery, where traditional lubricating substances might evaporate, oxidize, or break down.

MoS two can be applied as a dry powder, adhered coating, or dispersed in oils, oils, and polymer composites to improve wear resistance and reduce rubbing in bearings, gears, and gliding contacts.

Its performance is even more improved in damp atmospheres because of the adsorption of water molecules that function as molecular lubricants in between layers, although extreme moisture can cause oxidation and destruction with time.

3.2 Compound Combination and Put On Resistance Improvement

MoS ₂ is often incorporated right into steel, ceramic, and polymer matrices to create self-lubricating compounds with prolonged service life.

In metal-matrix composites, such as MoS TWO-enhanced light weight aluminum or steel, the lubricating substance stage lowers friction at grain boundaries and stops glue wear.

In polymer composites, specifically in engineering plastics like PEEK or nylon, MoS two improves load-bearing capability and lowers the coefficient of rubbing without considerably compromising mechanical strength.

These compounds are utilized in bushings, seals, and gliding parts in automotive, commercial, and marine applications.

Additionally, plasma-sprayed or sputter-deposited MoS two layers are employed in armed forces and aerospace systems, consisting of jet engines and satellite systems, where reliability under severe conditions is crucial.

4. Emerging Functions in Energy, Electronic Devices, and Catalysis

4.1 Applications in Power Storage and Conversion

Beyond lubrication and electronic devices, MoS two has actually gotten importance in power innovations, particularly as a driver for the hydrogen evolution reaction (HER) in water electrolysis.

The catalytically active websites lie mainly at the edges of the S– Mo– S layers, where under-coordinated molybdenum and sulfur atoms promote proton adsorption and H two formation.

While mass MoS two is less energetic than platinum, nanostructuring– such as developing up and down aligned nanosheets or defect-engineered monolayers– substantially boosts the thickness of energetic side websites, approaching the efficiency of rare-earth element catalysts.

This makes MoS TWO a promising low-cost, earth-abundant option for eco-friendly hydrogen manufacturing.

In energy storage, MoS two is explored as an anode product in lithium-ion and sodium-ion batteries as a result of its high academic capacity (~ 670 mAh/g for Li ⁺) and layered framework that enables ion intercalation.

Nonetheless, challenges such as quantity development throughout biking and limited electrical conductivity require strategies like carbon hybridization or heterostructure development to improve cyclability and rate efficiency.

4.2 Integration right into Flexible and Quantum Instruments

The mechanical adaptability, transparency, and semiconducting nature of MoS ₂ make it an excellent candidate for next-generation versatile and wearable electronics.

Transistors produced from monolayer MoS two display high on/off ratios (> 10 EIGHT) and movement values as much as 500 centimeters TWO/ V · s in suspended types, making it possible for ultra-thin reasoning circuits, sensors, and memory gadgets.

When incorporated with other 2D materials like graphene (for electrodes) and hexagonal boron nitride (for insulation), MoS ₂ kinds van der Waals heterostructures that imitate traditional semiconductor devices but with atomic-scale accuracy.

These heterostructures are being discovered for tunneling transistors, photovoltaic cells, and quantum emitters.

Moreover, the strong spin-orbit coupling and valley polarization in MoS two give a structure for spintronic and valleytronic tools, where details is inscribed not accountable, yet in quantum degrees of flexibility, possibly resulting in ultra-low-power computer paradigms.

In summary, molybdenum disulfide exemplifies the convergence of classical material energy and quantum-scale technology.

From its duty as a durable strong lubricating substance in severe atmospheres to its feature as a semiconductor in atomically slim electronic devices and a driver in sustainable power systems, MoS ₂ continues to redefine the limits of products scientific research.

As synthesis techniques enhance and integration approaches grow, MoS two is poised to play a central function in the future of innovative production, clean power, and quantum infotech.

Supplier

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12 years experience in providing super high-quality chemicals and Nanomaterials. The company export to many countries, such as USA, Canada, Europe, UAE, South Africa, Tanzania, Kenya, Egypt, Nigeria, Cameroon, Uganda, Turkey, Mexico, Azerbaijan, Belgium, Cyprus, Czech Republic, Brazil, Chile, Argentina, Dubai, Japan, Korea, Vietnam, Thailand, Malaysia, Indonesia, Australia,Germany, France, Italy, Portugal etc. As a leading nanotechnology development manufacturer, RBOSCHCO dominates the market. Our professional work team provides perfect solutions to help improve the efficiency of various industries, create value, and easily cope with various challenges. If you are looking for mos2 powder price, please send an email to: sales1@rboschco.com
Tags: molybdenum disulfide,mos2 powder,molybdenum disulfide lubricant

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

Vanadium oxide (VOx) stands at the leading edge of modern-day products science because of its exceptional convenience in chemical structure, crystal framework, and electronic properties. With several oxidation states– ranging from VO to V TWO O FIVE– the product displays a large range of behaviors including metal-insulator changes, high electrochemical activity, and catalytic performance. These attributes make vanadium oxide vital in energy storage systems, smart windows, sensors, stimulants, and next-generation electronic devices. As demand rises for sustainable technologies and high-performance functional products, vanadium oxide is becoming an essential enabler across clinical and industrial domains.

(TRUNNANO Vanadium Oxide)

Architectural Variety and Digital Stage Transitions

One of one of the most fascinating aspects of vanadium oxide is its ability to exist in numerous polymorphic forms, each with distinctive physical and electronic buildings. The most researched version, vanadium pentoxide (V ₂ O FIVE), includes a layered orthorhombic structure ideal for intercalation-based power storage space. In contrast, vanadium dioxide (VO ₂) undergoes a relatively easy to fix metal-to-insulator transition near room temperature level (~ 68 ° C), making it extremely beneficial for thermochromic coverings and ultrafast changing devices. This architectural tunability makes it possible for researchers to customize vanadium oxide for details applications by managing synthesis problems, doping components, or applying external stimuli such as heat, light, or electric areas.

Duty in Power Storage Space: From Lithium-Ion to Redox Circulation Batteries

Vanadium oxide plays a pivotal role in advanced power storage innovations, specifically in lithium-ion and redox flow batteries (RFBs). Its split framework permits reversible lithium ion insertion and removal, supplying high theoretical ability and cycling stability. In vanadium redox flow batteries (VRFBs), vanadium oxide functions as both catholyte and anolyte, eliminating cross-contamination issues usual in other RFB chemistries. These batteries are progressively deployed in grid-scale renewable resource storage because of their long cycle life, deep discharge ability, and inherent safety advantages over flammable battery systems.

Applications in Smart Windows and Electrochromic Instruments

The thermochromic and electrochromic properties of vanadium dioxide (VO ₂) have actually positioned it as a top candidate for smart home window innovation. VO two movies can dynamically control solar radiation by transitioning from clear to reflective when reaching vital temperatures, thereby minimizing building air conditioning tons and improving power efficiency. When integrated right into electrochromic gadgets, vanadium oxide-based layers enable voltage-controlled modulation of optical transmittance, supporting intelligent daytime management systems in architectural and automotive sectors. Ongoing research concentrates on enhancing changing speed, durability, and openness range to satisfy industrial implementation standards.

Use in Sensing Units and Digital Instruments

Vanadium oxide’s level of sensitivity to environmental adjustments makes it a promising material for gas, stress, and temperature sensing applications. Slim films of VO two show sharp resistance shifts in action to thermal variations, making it possible for ultra-sensitive infrared detectors and bolometers utilized in thermal imaging systems. In versatile electronic devices, vanadium oxide compounds enhance conductivity and mechanical strength, supporting wearable health tracking tools and smart textiles. Furthermore, its prospective use in memristive gadgets and neuromorphic computing styles is being explored to duplicate synaptic behavior in fabricated neural networks.

Catalytic Efficiency in Industrial and Environmental Processes

Vanadium oxide is widely employed as a heterogeneous catalyst in numerous industrial and environmental applications. It acts as the energetic component in careful catalytic reduction (SCR) systems for NOₓ removal from fl flue gases, playing a vital function in air contamination control. In petrochemical refining, V TWO O ₅-based drivers help with sulfur recuperation and hydrocarbon oxidation processes. Additionally, vanadium oxide nanoparticles show promise in CO oxidation and VOC degradation, supporting environment-friendly chemistry campaigns targeted at reducing greenhouse gas emissions and enhancing indoor air top quality.

Synthesis Techniques and Challenges in Large-Scale Manufacturing

( TRUNNANO Vanadium Oxide)

Making high-purity, phase-controlled vanadium oxide remains a vital obstacle in scaling up for commercial use. Usual synthesis courses include sol-gel processing, hydrothermal techniques, sputtering, and chemical vapor deposition (CVD). Each method affects crystallinity, morphology, and electrochemical efficiency in a different way. Concerns such as particle jumble, stoichiometric discrepancy, and phase instability throughout cycling continue to limit practical implementation. To conquer these challenges, researchers are creating novel nanostructuring techniques, composite solutions, and surface passivation approaches to enhance architectural integrity and practical longevity.

Market Trends and Strategic Significance in Global Supply Chains

The international market for vanadium oxide is increasing rapidly, driven by development in energy storage space, smart glass, and catalysis markets. China, Russia, and South Africa control manufacturing as a result of plentiful vanadium books, while The United States and Canada and Europe lead in downstream R&D and high-value-added product growth. Strategic financial investments in vanadium mining, recycling framework, and battery production are improving supply chain characteristics. Governments are also identifying vanadium as an important mineral, motivating plan incentives and trade guidelines aimed at protecting stable accessibility amid climbing geopolitical tensions.

Sustainability and Ecological Factors To Consider

While vanadium oxide offers significant technical benefits, problems continue to be regarding its ecological effect and lifecycle sustainability. Mining and refining processes produce poisonous effluents and need considerable power inputs. Vanadium compounds can be hazardous if inhaled or ingested, necessitating stringent occupational safety methods. To attend to these issues, researchers are exploring bioleaching, closed-loop recycling, and low-energy synthesis techniques that align with circular economic situation principles. Initiatives are also underway to envelop vanadium varieties within more secure matrices to minimize leaching dangers during end-of-life disposal.

Future Potential Customers: Assimilation with AI, Nanotechnology, and Environment-friendly Production

Looking ahead, vanadium oxide is poised to play a transformative role in the convergence of artificial intelligence, nanotechnology, and lasting production. Machine learning formulas are being put on optimize synthesis criteria and anticipate electrochemical performance, increasing product exploration cycles. Nanostructured vanadium oxides, such as nanowires and quantum dots, are opening new pathways for ultra-fast fee transport and miniaturized gadget combination. On the other hand, eco-friendly production strategies are integrating eco-friendly binders and solvent-free finish technologies to decrease ecological impact. As innovation accelerates, vanadium oxide will certainly remain to redefine the limits of useful products for a smarter, cleaner future.

Supplier

TRUNNANO is a supplier of Spherical Tungsten Powder with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Spherical Tungsten Powder, please feel free to contact us and send an inquiry(sales5@nanotrun.com).
Tag: Vanadium Oxide, v2o5, vanadium pentoxide

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

Titanium disilicide (TiSi two) has emerged as an essential material in modern-day microelectronics, high-temperature architectural applications, and thermoelectric power conversion due to its unique mix of physical, electric, and thermal residential or commercial properties. As a refractory metal silicide, TiSi two shows high melting temperature (~ 1620 ° C), superb electrical conductivity, and excellent oxidation resistance at raised temperature levels. These qualities make it a necessary element in semiconductor device construction, especially in the formation of low-resistance get in touches with and interconnects. As technical demands promote much faster, smaller, and more reliable systems, titanium disilicide remains to play a critical role throughout numerous high-performance sectors.

(Titanium Disilicide Powder)

Structural and Digital Qualities of Titanium Disilicide

Titanium disilicide takes shape in 2 primary stages– C49 and C54– with unique architectural and digital habits that influence its efficiency in semiconductor applications. The high-temperature C54 phase is specifically preferable as a result of its reduced electrical resistivity (~ 15– 20 μΩ · cm), making it excellent for usage in silicided gate electrodes and source/drain get in touches with in CMOS devices. Its compatibility with silicon processing techniques allows for seamless assimilation right into existing fabrication flows. Additionally, TiSi ₂ shows modest thermal expansion, lowering mechanical stress throughout thermal cycling in integrated circuits and improving long-lasting integrity under operational problems.

Duty in Semiconductor Production and Integrated Circuit Layout

Among one of the most substantial applications of titanium disilicide lies in the field of semiconductor production, where it serves as a vital material for salicide (self-aligned silicide) procedures. In this context, TiSi ₂ is precisely based on polysilicon gates and silicon substratums to reduce call resistance without endangering tool miniaturization. It plays a critical role in sub-micron CMOS modern technology by enabling faster switching speeds and reduced power usage. Regardless of obstacles related to stage transformation and agglomeration at heats, ongoing research study concentrates on alloying techniques and process optimization to enhance security and performance in next-generation nanoscale transistors.

High-Temperature Architectural and Protective Covering Applications

Beyond microelectronics, titanium disilicide demonstrates exceptional potential in high-temperature settings, particularly as a safety coating for aerospace and commercial components. Its high melting factor, oxidation resistance as much as 800– 1000 ° C, and modest solidity make it suitable for thermal obstacle coatings (TBCs) and wear-resistant layers in generator blades, combustion chambers, and exhaust systems. When incorporated with other silicides or ceramics in composite materials, TiSi two enhances both thermal shock resistance and mechanical integrity. These qualities are significantly valuable in protection, space expedition, and advanced propulsion technologies where extreme performance is needed.

Thermoelectric and Energy Conversion Capabilities

Current research studies have actually highlighted titanium disilicide’s appealing thermoelectric residential or commercial properties, placing it as a candidate product for waste heat recuperation and solid-state power conversion. TiSi ₂ displays a relatively high Seebeck coefficient and modest thermal conductivity, which, when maximized through nanostructuring or doping, can improve its thermoelectric performance (ZT worth). This opens up brand-new avenues for its usage in power generation modules, wearable electronics, and sensing unit networks where small, sturdy, and self-powered options are required. Researchers are additionally exploring hybrid structures incorporating TiSi ₂ with other silicides or carbon-based materials to better enhance power harvesting abilities.

Synthesis Methods and Handling Obstacles

Producing high-quality titanium disilicide calls for specific control over synthesis criteria, including stoichiometry, phase pureness, and microstructural harmony. Typical techniques include straight reaction of titanium and silicon powders, sputtering, chemical vapor deposition (CVD), and responsive diffusion in thin-film systems. Nevertheless, attaining phase-selective growth stays a difficulty, especially in thin-film applications where the metastable C49 stage often tends to form preferentially. Technologies in fast thermal annealing (RTA), laser-assisted handling, and atomic layer deposition (ALD) are being checked out to overcome these restrictions and make it possible for scalable, reproducible construction of TiSi ₂-based components.

Market Trends and Industrial Adoption Across Global Sectors

( Titanium Disilicide Powder)

The international market for titanium disilicide is increasing, driven by need from the semiconductor market, aerospace industry, and emerging thermoelectric applications. North America and Asia-Pacific lead in adoption, with significant semiconductor producers incorporating TiSi ₂ right into advanced logic and memory gadgets. On the other hand, the aerospace and defense markets are investing in silicide-based compounds for high-temperature structural applications. Although alternative materials such as cobalt and nickel silicides are gaining grip in some segments, titanium disilicide stays favored in high-reliability and high-temperature niches. Strategic partnerships in between material distributors, factories, and scholastic institutions are increasing product growth and industrial deployment.

Ecological Factors To Consider and Future Research Study Directions

Regardless of its benefits, titanium disilicide deals with examination pertaining to sustainability, recyclability, and ecological effect. While TiSi ₂ itself is chemically stable and safe, its manufacturing entails energy-intensive processes and uncommon basic materials. Initiatives are underway to establish greener synthesis paths using recycled titanium resources and silicon-rich industrial by-products. Additionally, researchers are investigating eco-friendly choices and encapsulation methods to decrease lifecycle threats. Looking in advance, the combination of TiSi ₂ with flexible substratums, photonic gadgets, and AI-driven materials design platforms will likely redefine its application scope in future state-of-the-art systems.

The Road Ahead: Assimilation with Smart Electronic Devices and Next-Generation Devices

As microelectronics remain to develop toward heterogeneous integration, versatile computing, and ingrained sensing, titanium disilicide is expected to adjust accordingly. Developments in 3D packaging, wafer-level interconnects, and photonic-electronic co-integration might expand its use past standard transistor applications. Additionally, the convergence of TiSi ₂ with artificial intelligence tools for predictive modeling and process optimization can speed up advancement cycles and lower R&D prices. With continued investment in product science and procedure engineering, titanium disilicide will continue to be a foundation material for high-performance electronic devices and sustainable power modern technologies in the years ahead.

Provider

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12 years experience in providing super high-quality chemicals and Nanomaterials. The company export to many countries, such as USA, Canada, Europe, UAE, South Africa,Tanzania,Kenya,Egypt,Nigeria,Cameroon,Uganda,Turkey,Mexico,Azerbaijan,Belgium,Cyprus,Czech Republic, Brazil, Chile, Argentina, Dubai, Japan, Korea, Vietnam, Thailand, Malaysia, Indonesia, Australia,Germany, France, Italy, Portugal etc. As a leading nanotechnology development manufacturer, RBOSCHCO dominates the market. Our professional work team provides perfect solutions to help improve the efficiency of various industries, create value, and easily cope with various challenges. If you are looking for titanium steel, please send an email to: sales1@rboschco.com
Tags: ti si,si titanium,titanium silicide

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

(Samsung Electronics Develops Ai Image Signal Processor)

The AI ISP combines machine learning with advanced image processing algorithms. It analyzes scenes to adjust settings like exposure and contrast without user input. The system recognizes objects, faces, and environments to apply tailored enhancements. Samsung claims the processor can handle multiple tasks simultaneously, improving speed and efficiency.

This development addresses growing demand for advanced camera features in mobile devices. Consumers increasingly prioritize photography capabilities when choosing smartphones. Samsung’s new ISP aims to set a benchmark for image quality in the industry. The company plans to integrate the technology into its upcoming flagship devices.

Executives highlight the processor’s potential to transform mobile photography. “This innovation represents a leap forward in computational imaging,” said a Samsung spokesperson. “It allows users to capture professional-grade photos effortlessly.” The AI ISP also supports video recording, offering stabilization and dynamic range improvements.

Samsung tested the processor in diverse scenarios, including low-light environments and fast-moving subjects. Results show significant improvements in clarity and color reproduction. The technology reduces reliance on post-processing software by optimizing images at the hardware level.

The AI ISP will debut in smartphones scheduled for release next year. Samsung plans to expand its application to other products, such as drones and security cameras. The company continues to invest in AI-driven solutions to strengthen its position in the consumer electronics market.

Samsung Electronics remains a leader in semiconductor innovation. The new processor underscores its commitment to integrating AI into everyday devices. Technical details will be disclosed at an industry event later this quarter.

(Samsung Electronics Develops Ai Image Signal Processor)

Samsung Electronics specializes in advanced technology solutions, including semiconductors, telecommunications, and digital media. The company operates globally, driving innovation across multiple sectors.
